BCM Connector Identification

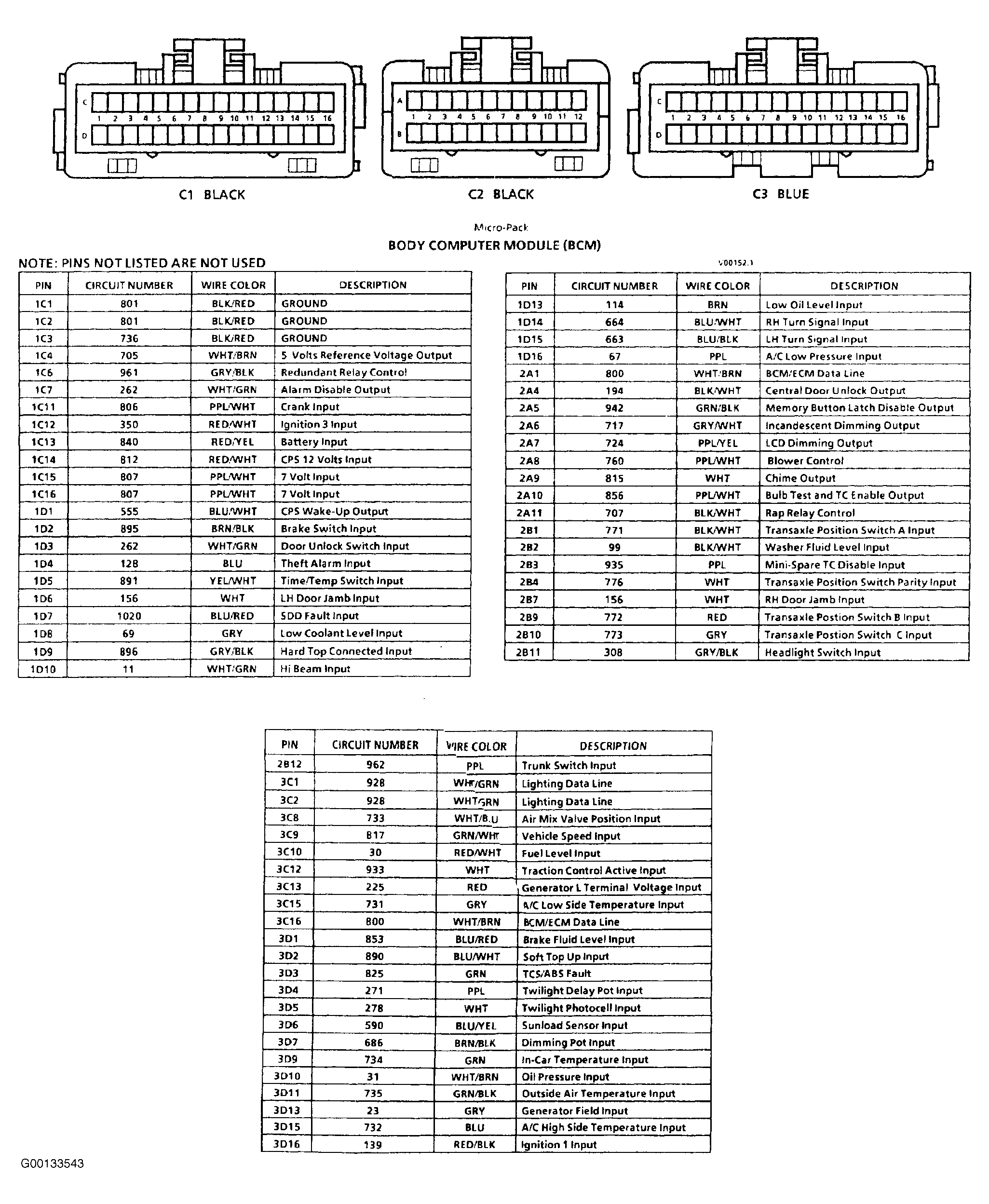

Fig 1: Identifying BCM Terminal Connectors

Courtesy of GENERAL MOTORS CORP.
