Installation

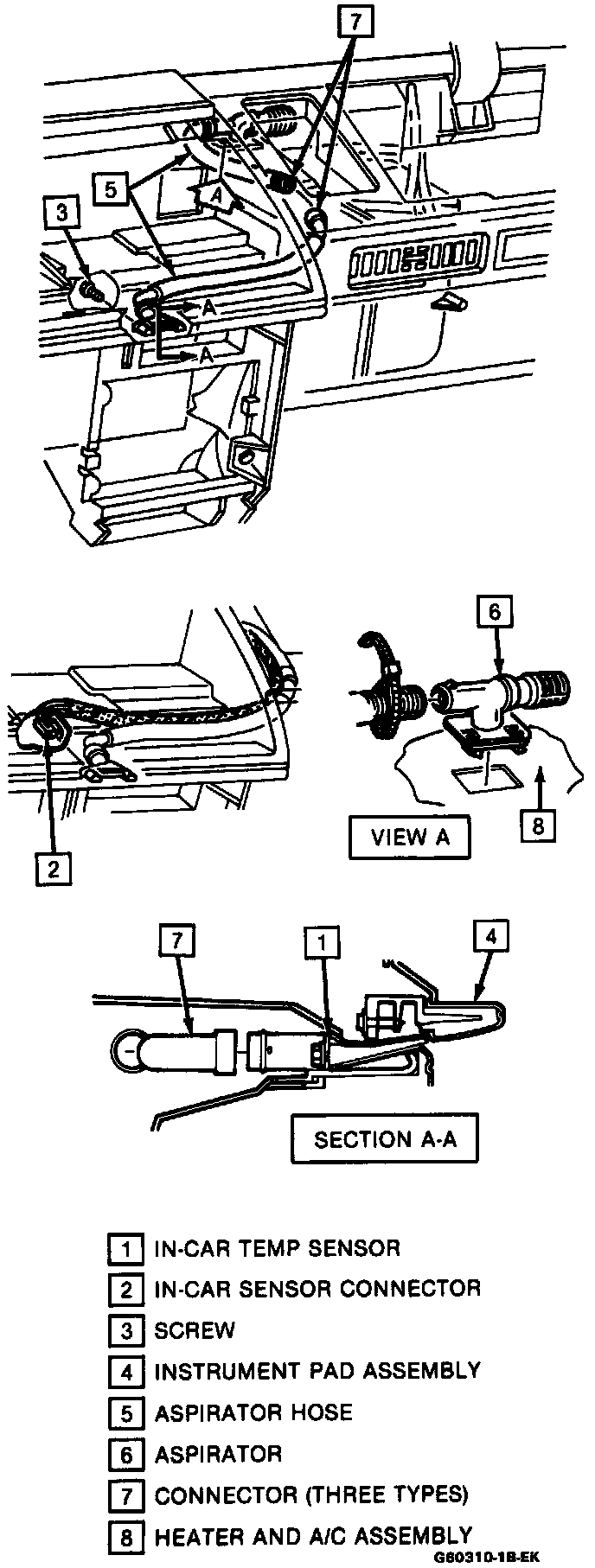

Locations:






INSTALL OR CONNECT
1. Screw (3) and sensor (1).
2. Aspirator hose (5) and electrical connector (2).
3. Lower left-hand trim pad.
