Transmission Position Sensor/Switch: Testing and Inspection

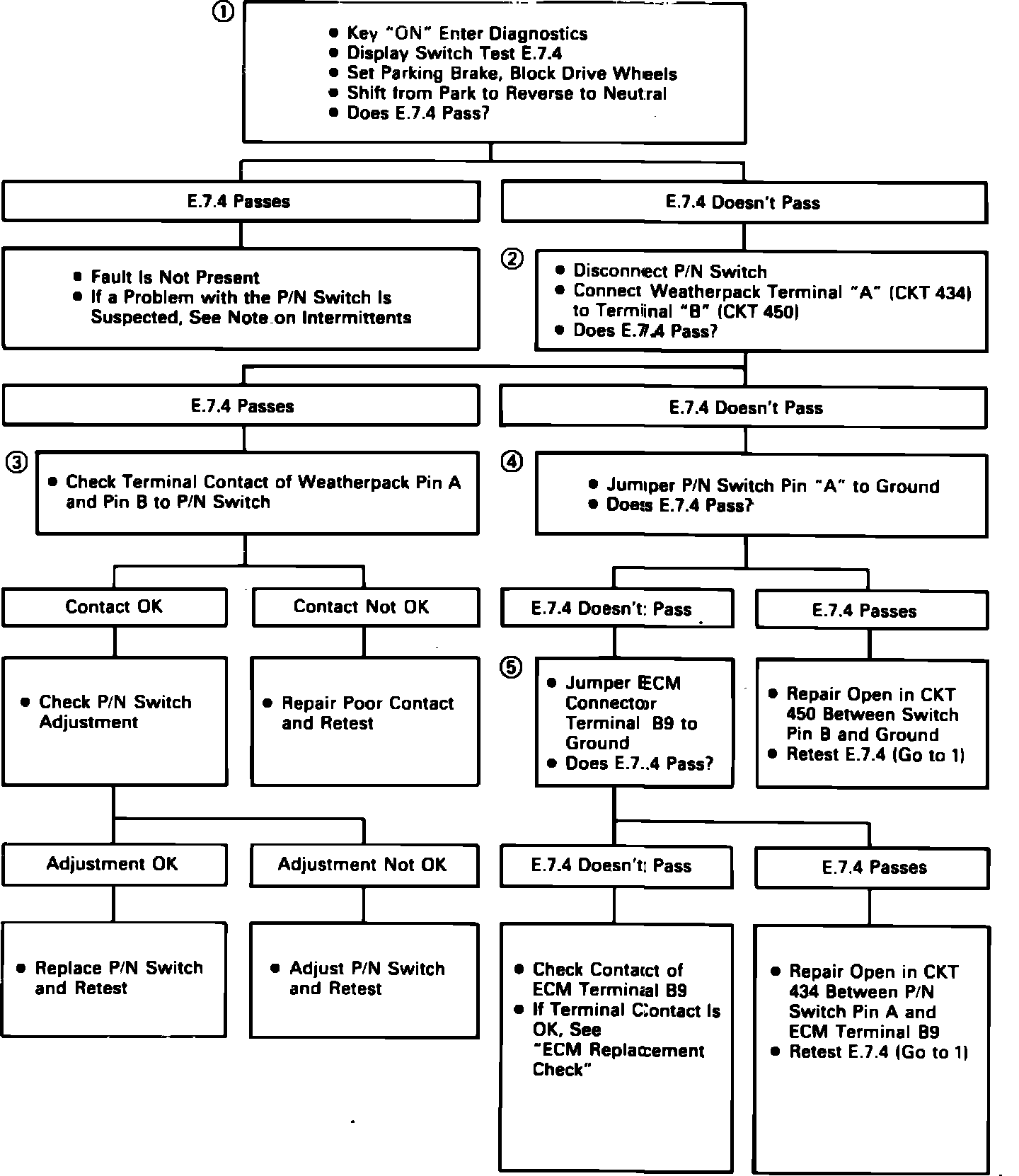

Fig. 79 ECM input E.7.4 diagnosis (Park/Neutral Switch):
