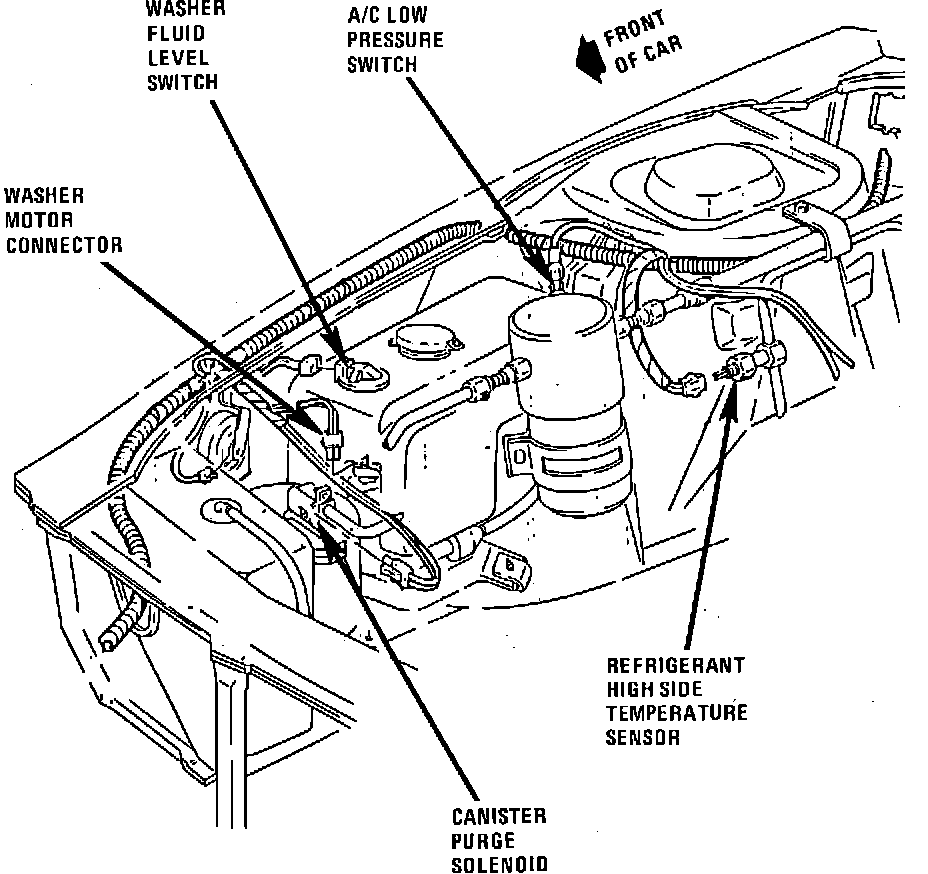

Refrigerant High Side Temperature Sensor

RH Side Of Engine Compartment:




Rear RH Side Of Engine Compartment, Near Shock Tower

Applicable to: 1987 DeVille & Fleetwood
