Electrical Diagrams

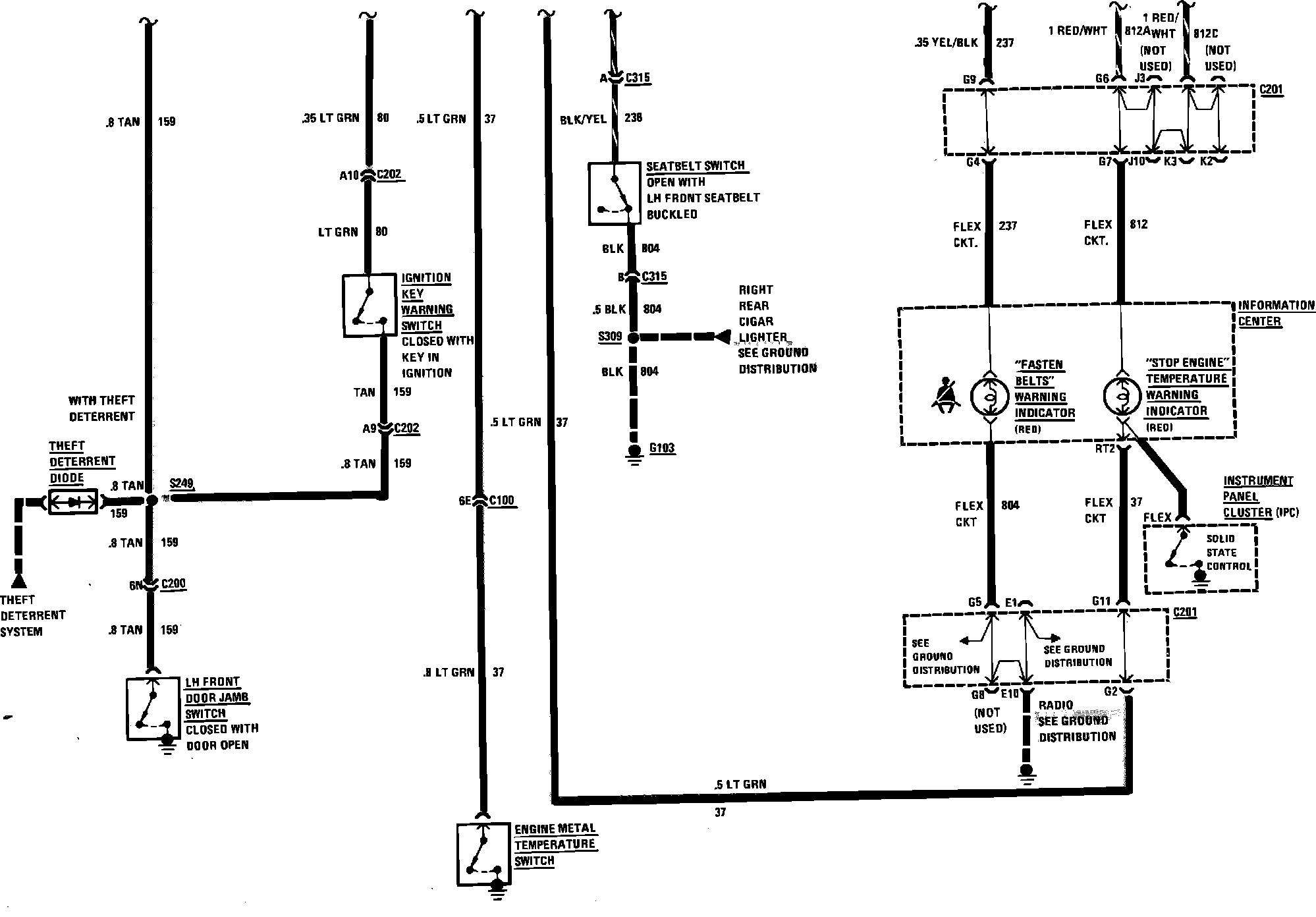

Chime Module Wiring Circuit (Part 1 Of 2):

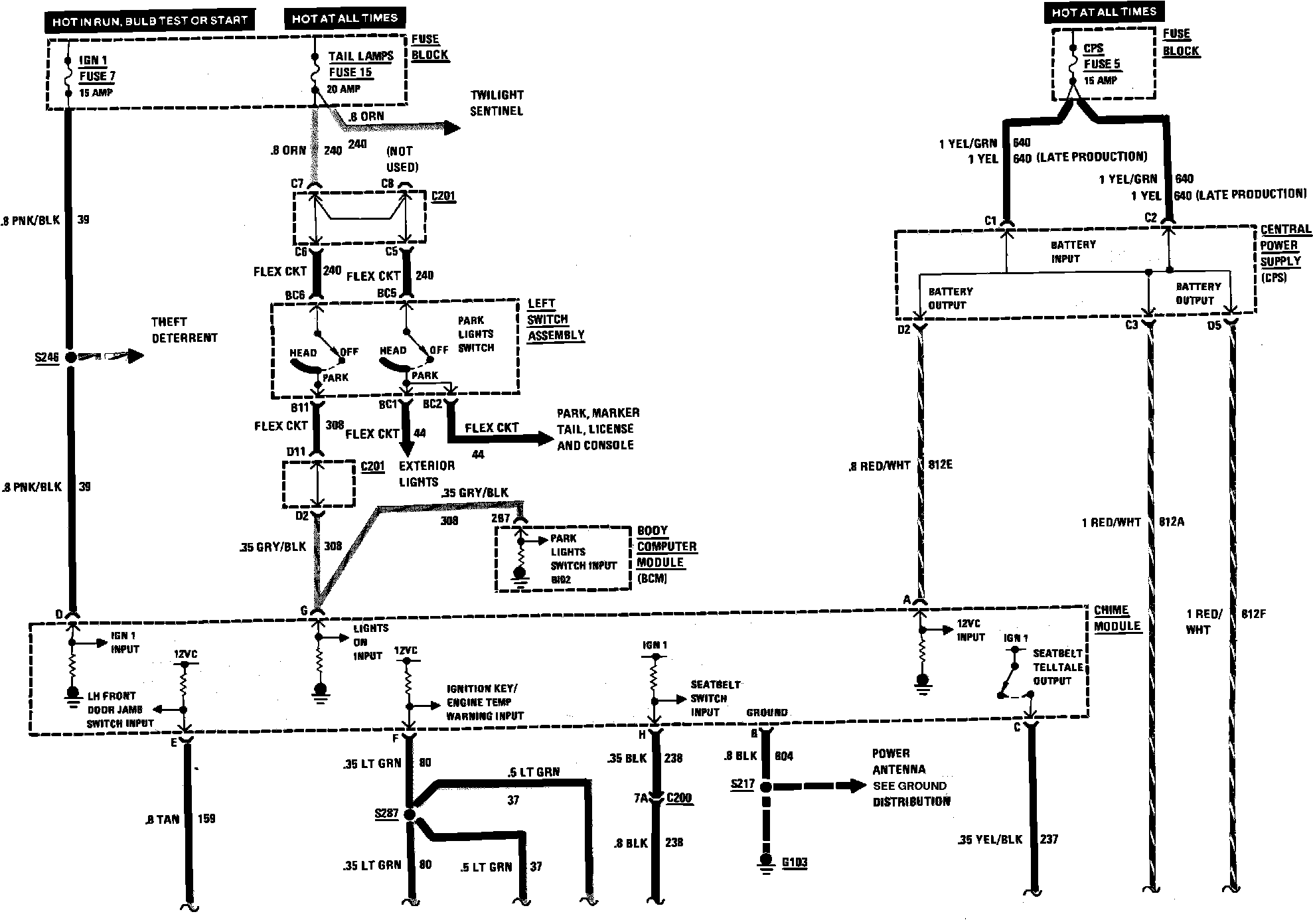

Chime Module Wiring Circuit (Part 2 Of 2):
