Initial Inspection and Diagnostic Overview
>>
Diagnostic Flow - System Control Display
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Diagnostic Flow - System Control Display

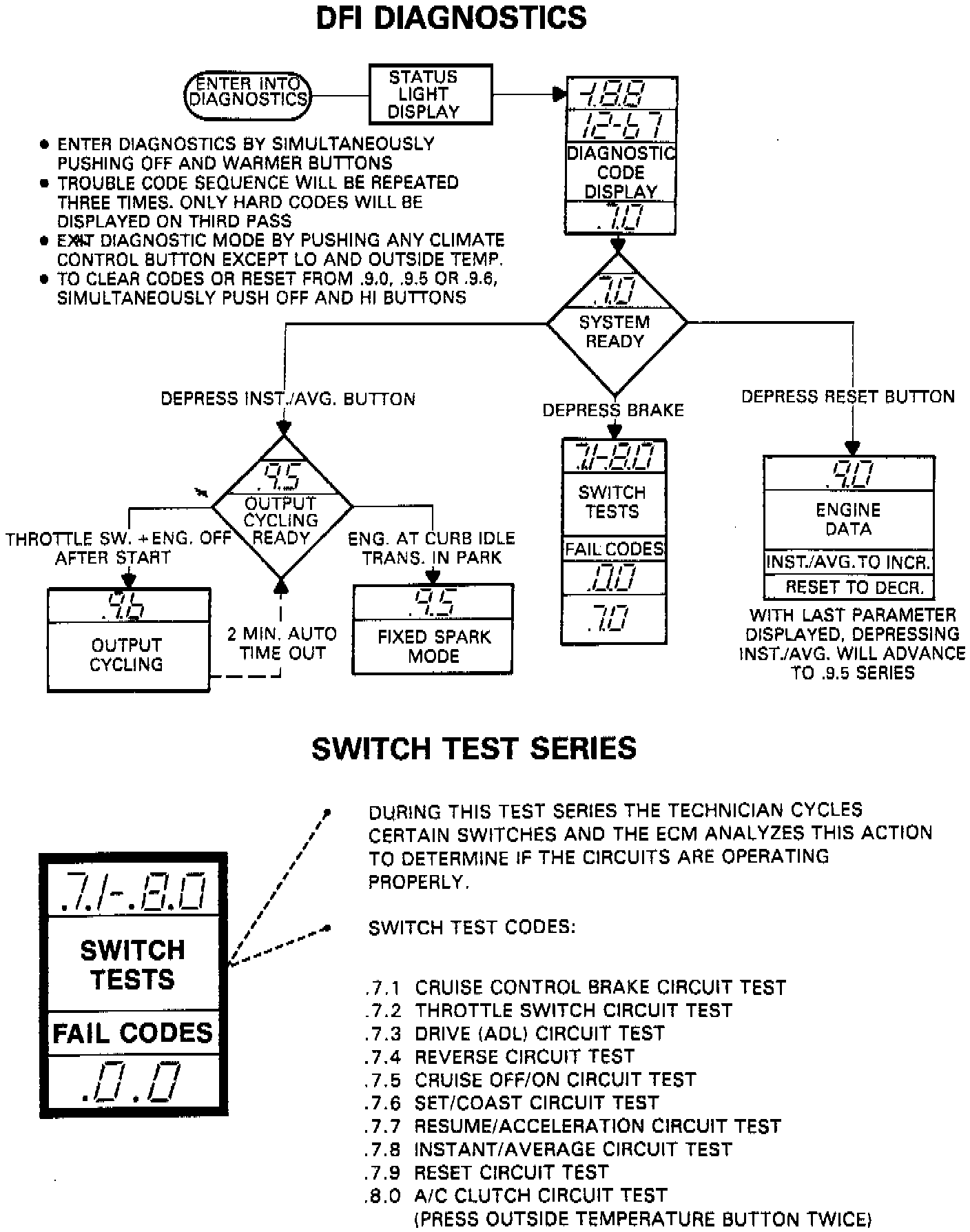

Diagnostic Flow Diagram - Part 1 Of 2.:

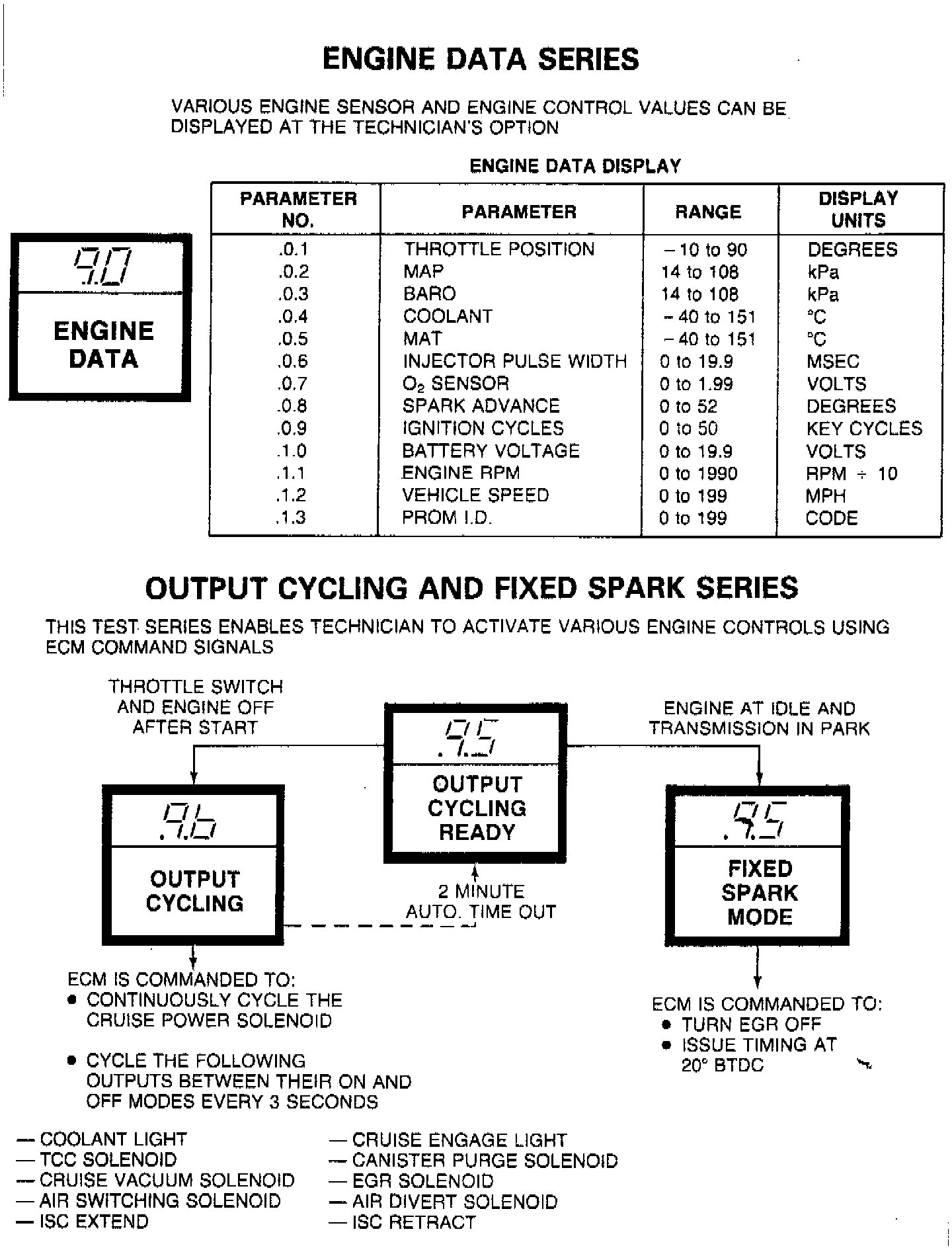

Diagnostic Flow Diagram - Part 2 Of 2.:
