Body Control Module (BCM)

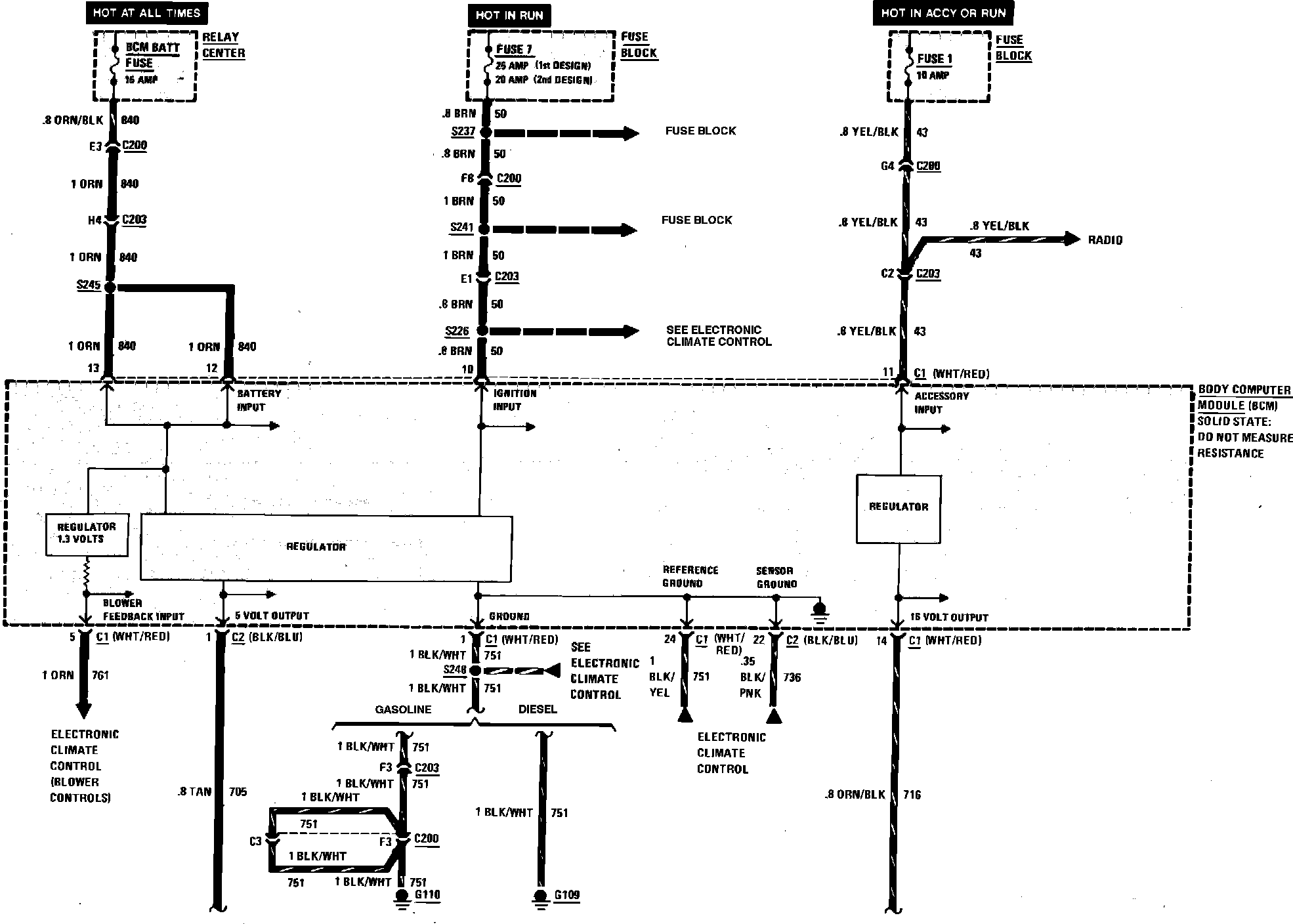

Fig. 84 BCM (J-1) Connector Wiring Diagram:

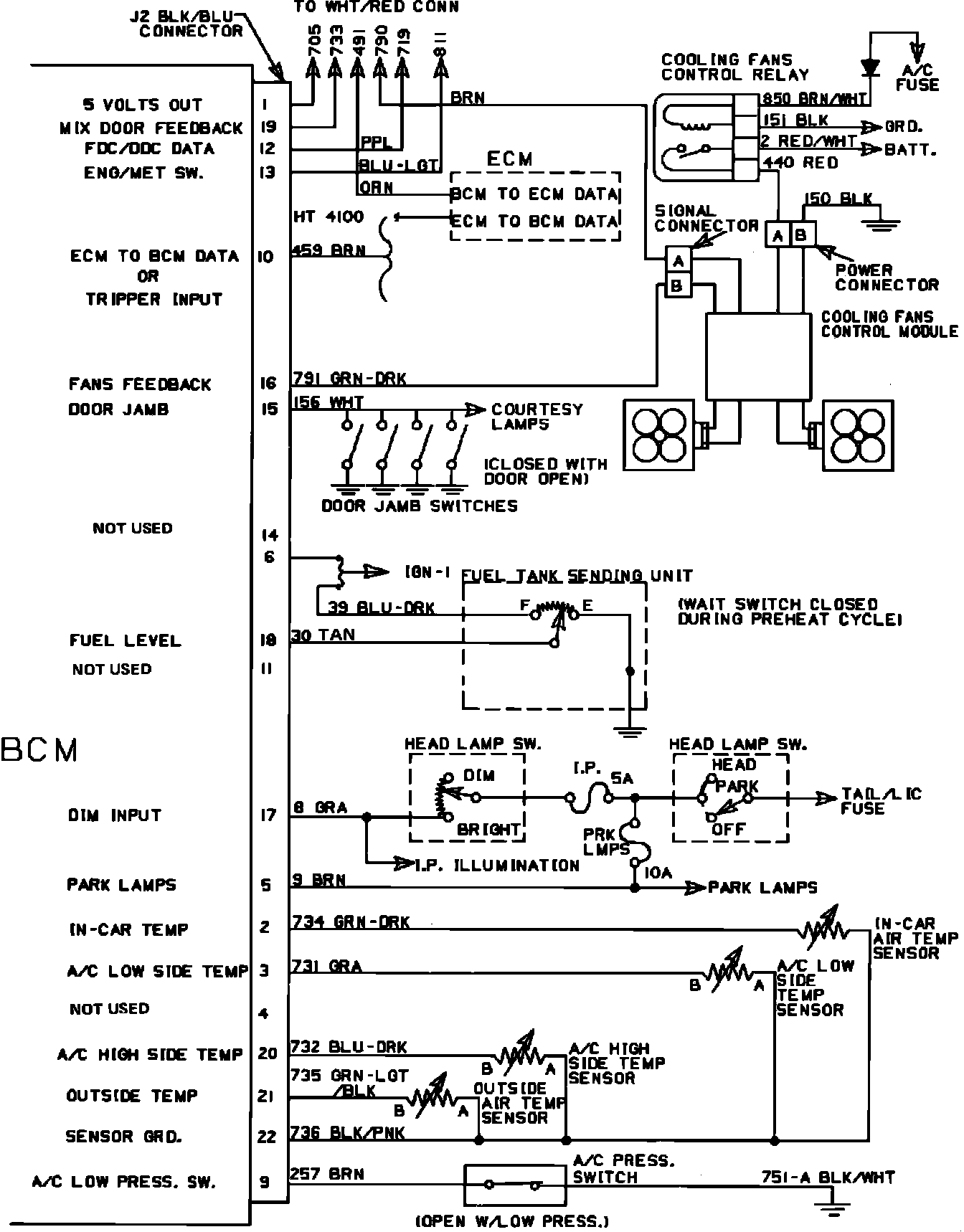

Fig. 85 BCM (J-2) Connector Wiring Diagram. 1985-86 Models:

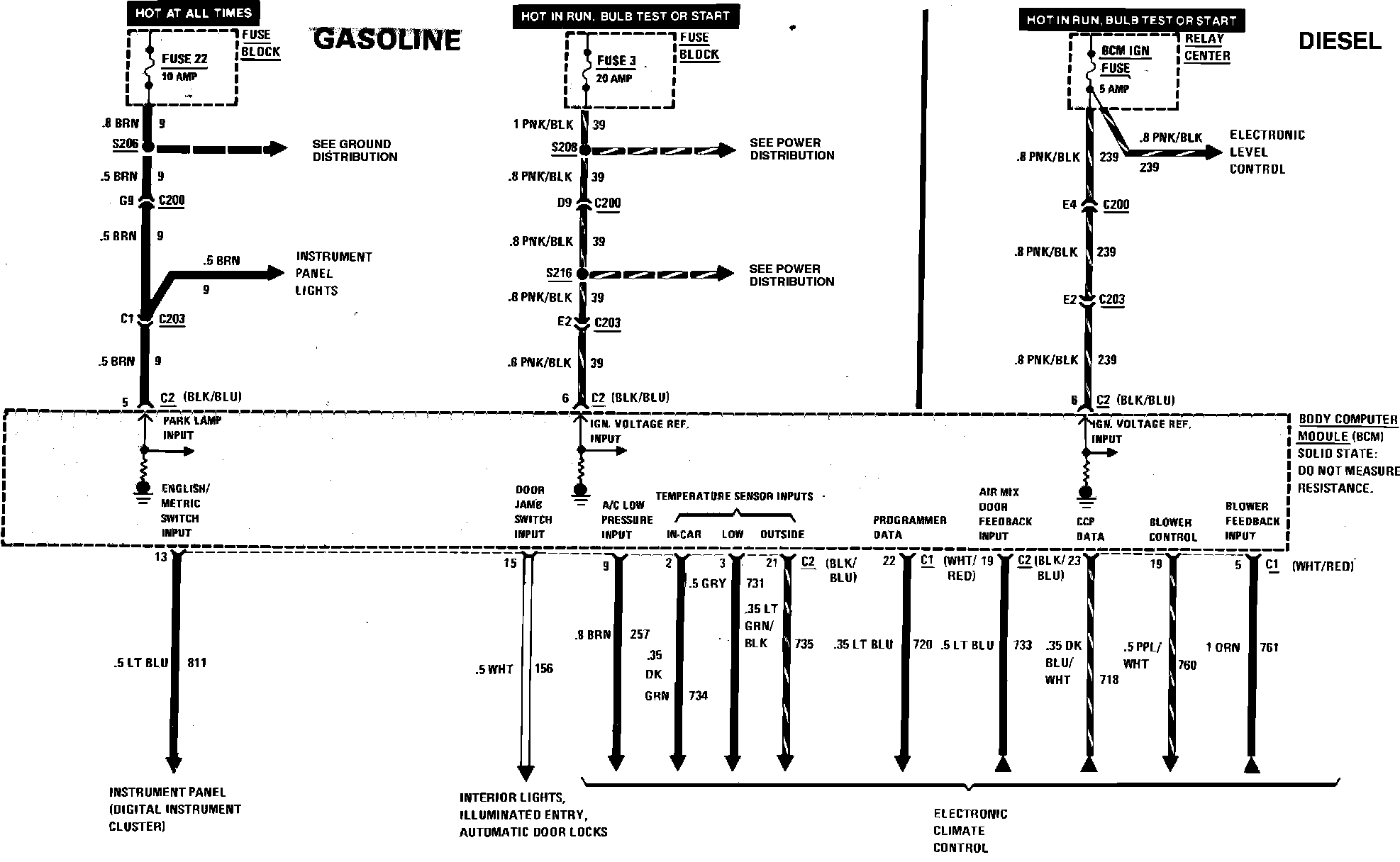

Body Computer Module Wiring Circuit, Deville:

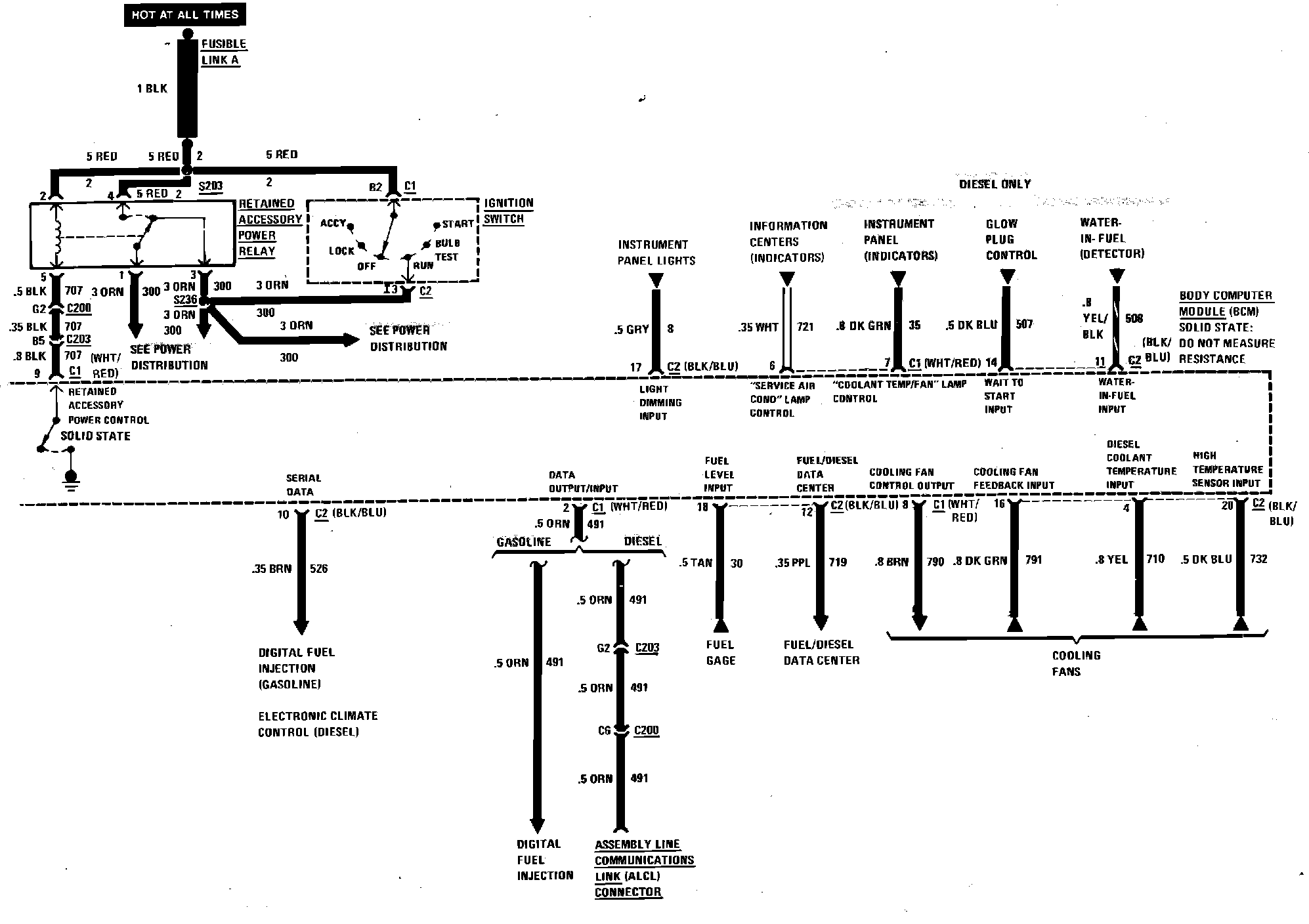

Body Computer Module Wiring Circuit, Deville:

Body Computer Module Wiring Circuit, Deville:
