Chart C1D - Map Output Check

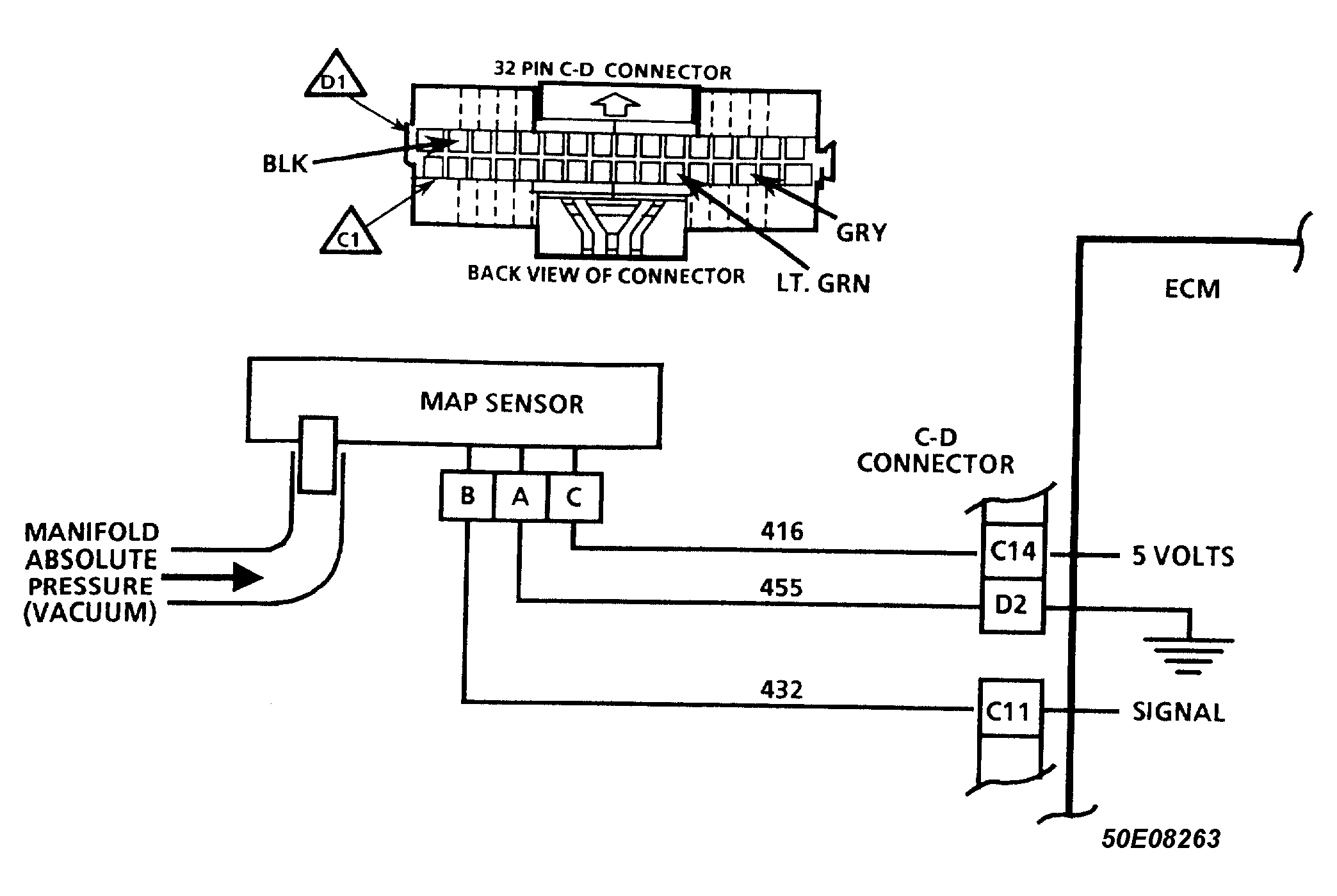

Fig 1: Chart C1D Schematic, MAP Output Check

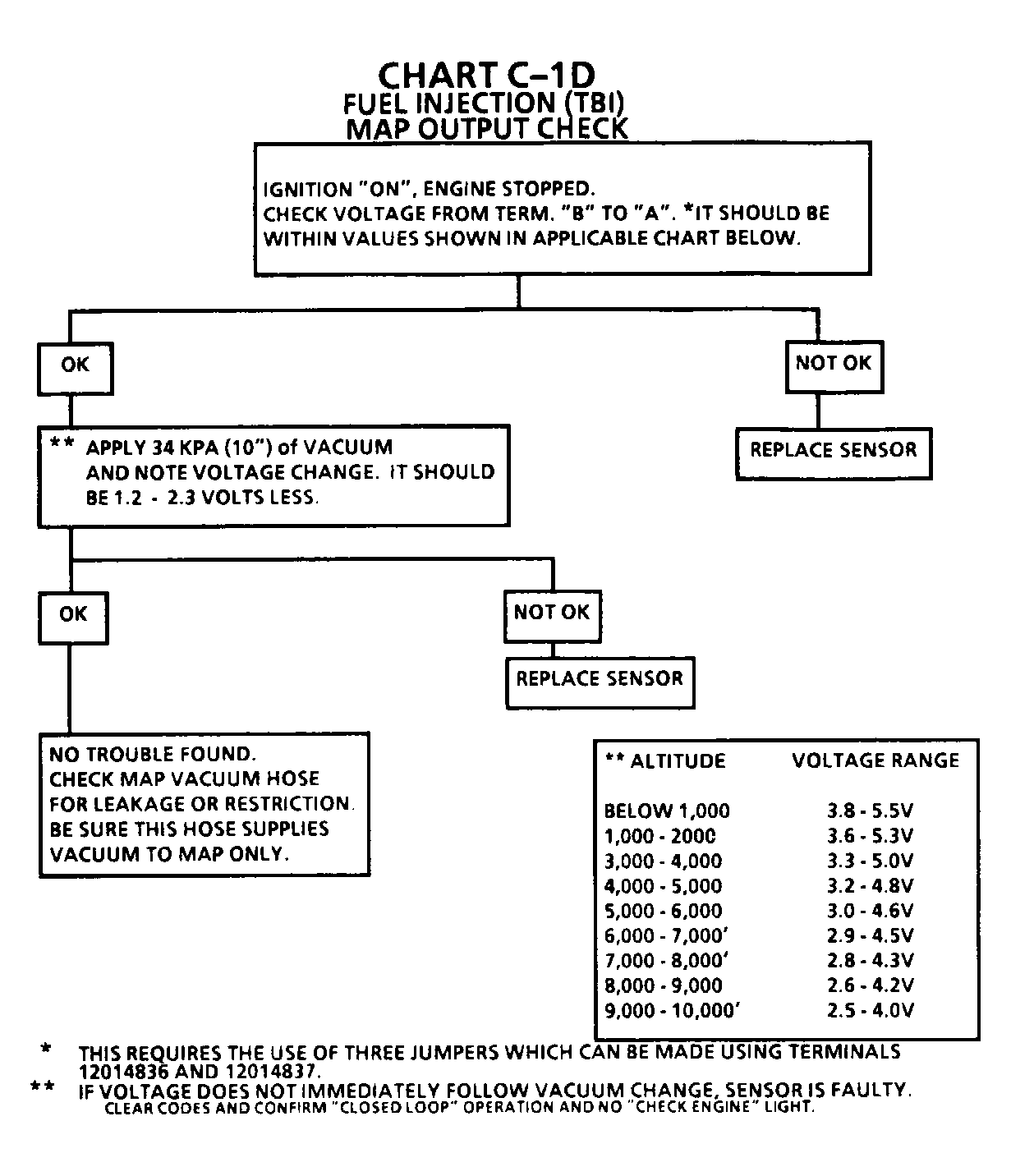

Fig 2: Flow Chart C1D, MAP Output Check

Fig 3: Flow Chart C1D, MAP Output Check
