Electronic/Powertrain Control Module (ECM/PCM)

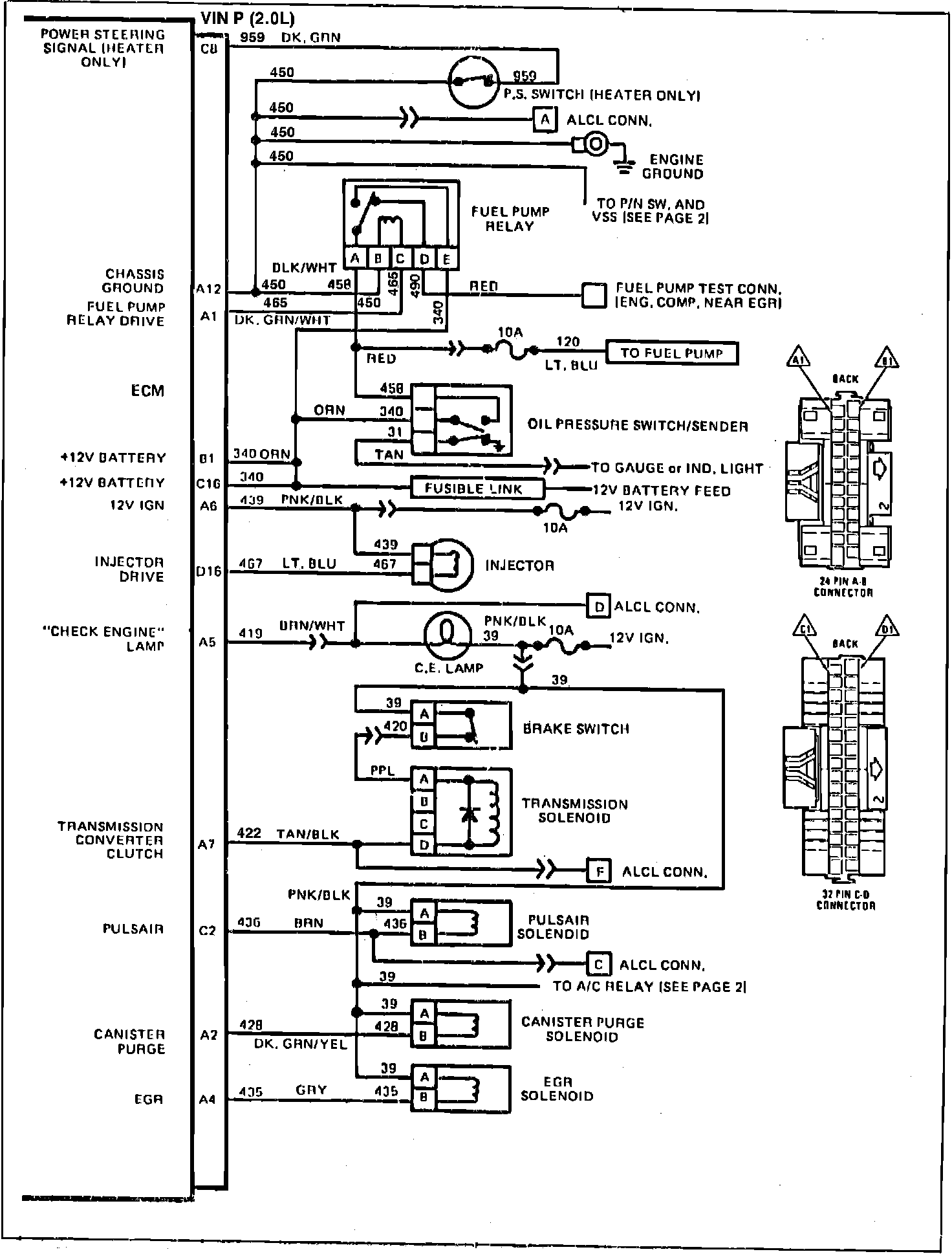

Fig. 022 ECM Wiring Diagrams: (1 of 2):

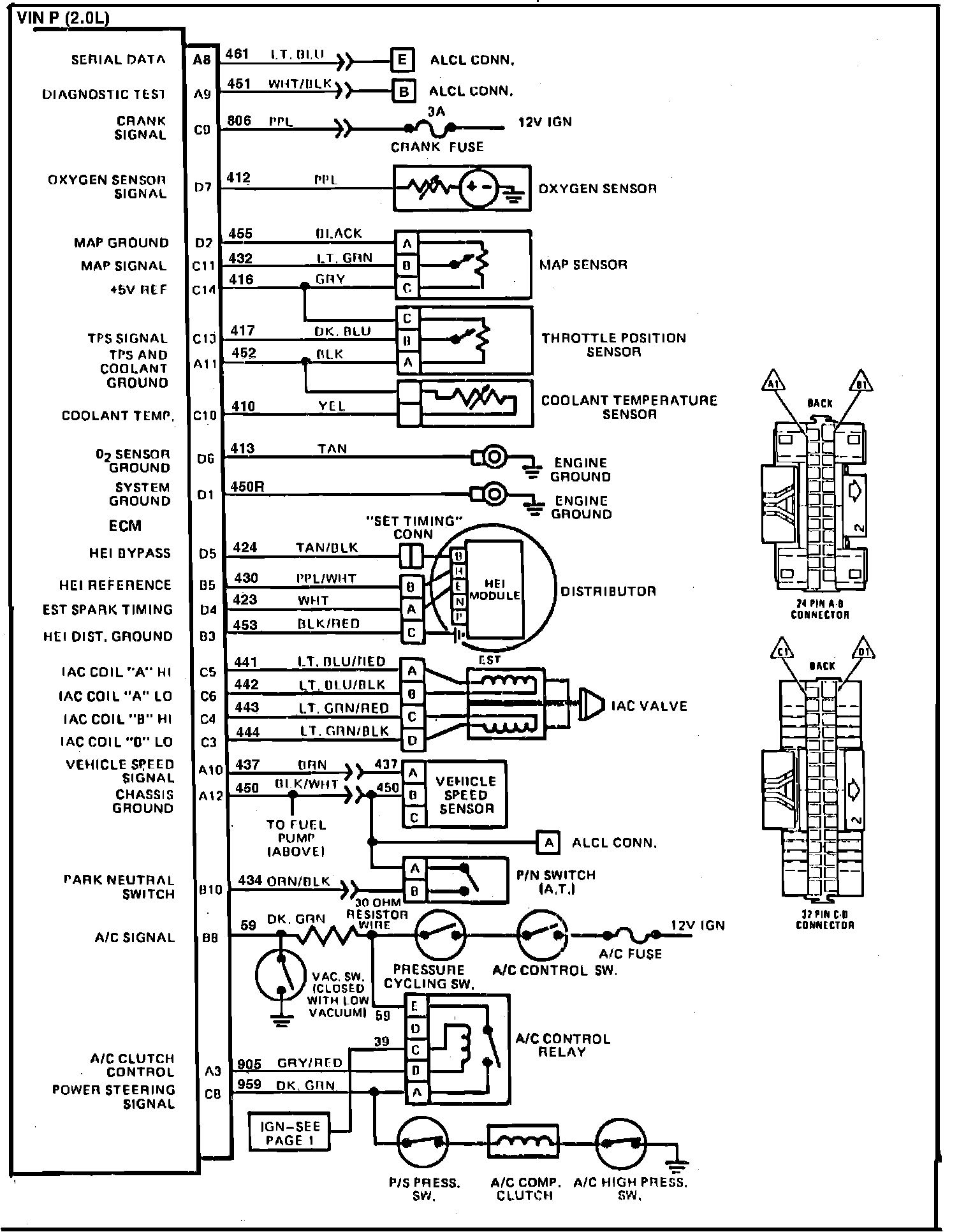

Fig. 023 ECM Wiring Diagrams: (2 of 2):
