Power Module

The transistorized power module is mounted on top of the evaporator-blower assembly. It receives signals from the programmer to cycle the A/C clutch.

It amplifies the signals to provide variable blower speeds.

A heat sink, which protrudes into the air flow in the evaporator case, prevents module from overheating.

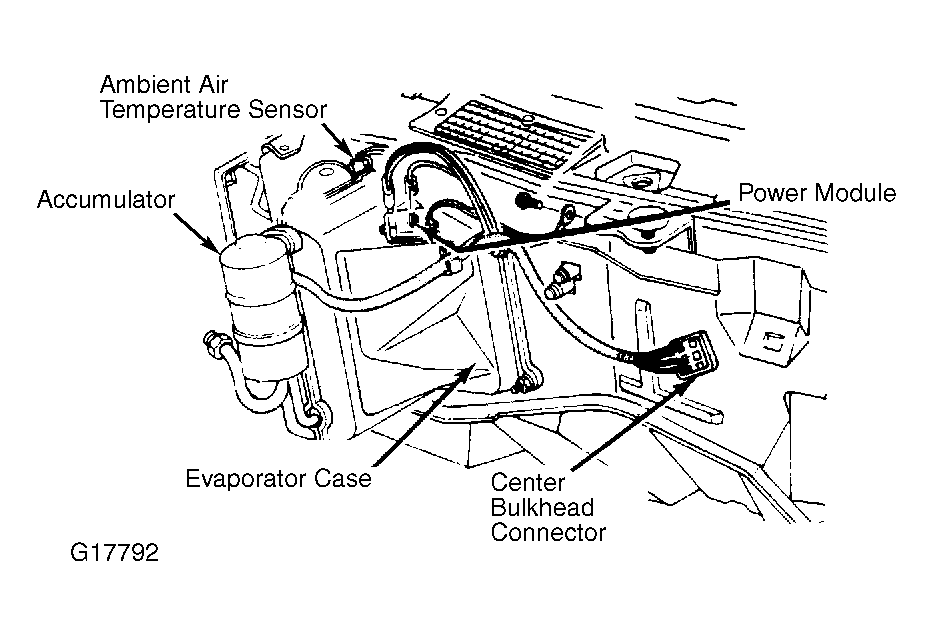

Fig 1: Power Module and Evaporator Case (Eldorado and Seville models are shown.)
G17792
