Chart 6A: HEI Check W/Remote Ignition Coil

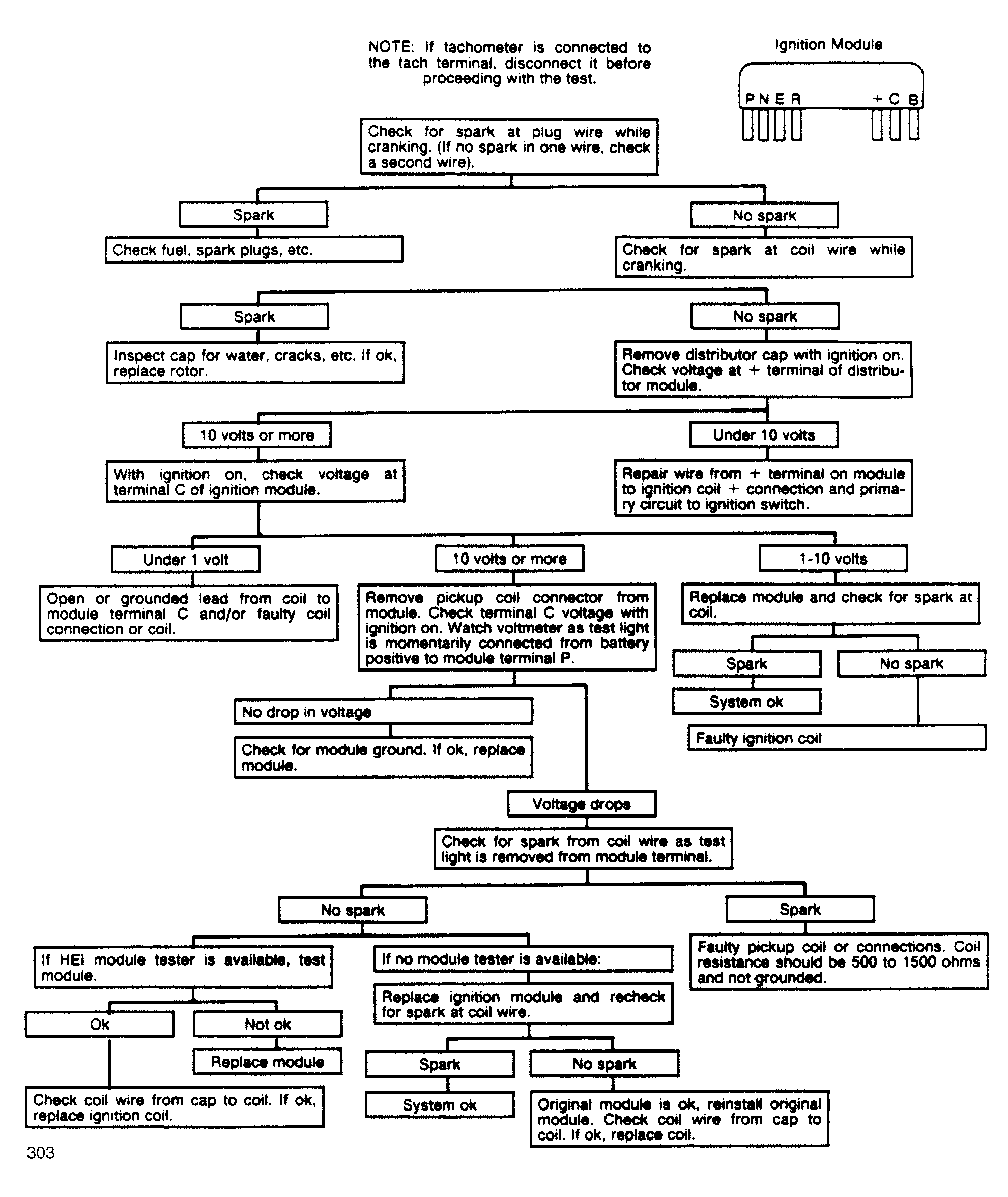

Fig 1: Chart 6A: HEI Check W/Remote Ign Coil Flow Chart
G303

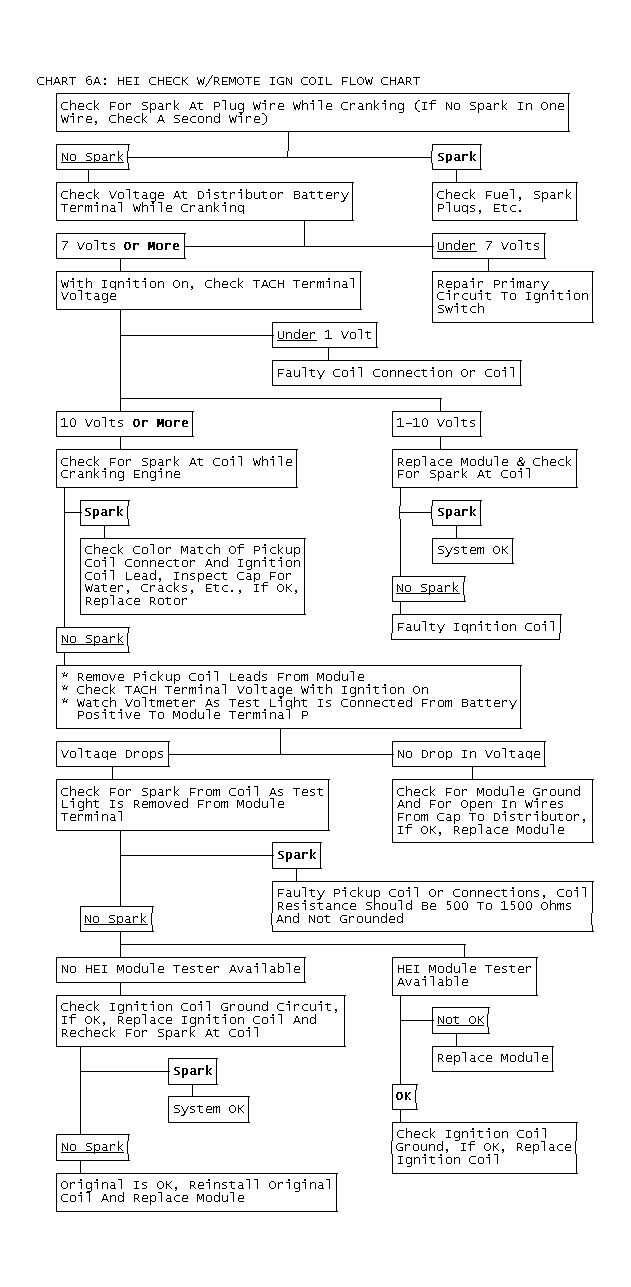

Fig 2: Chart 6A: HEI Check W/Remote Ign Coil Flow Chart
GB0045649
