EFE (Electrically Heated) Check
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
EFE (Electrically Heated) Check
Fig 1: EFE (Vacuum Servo) Check Flow Chart

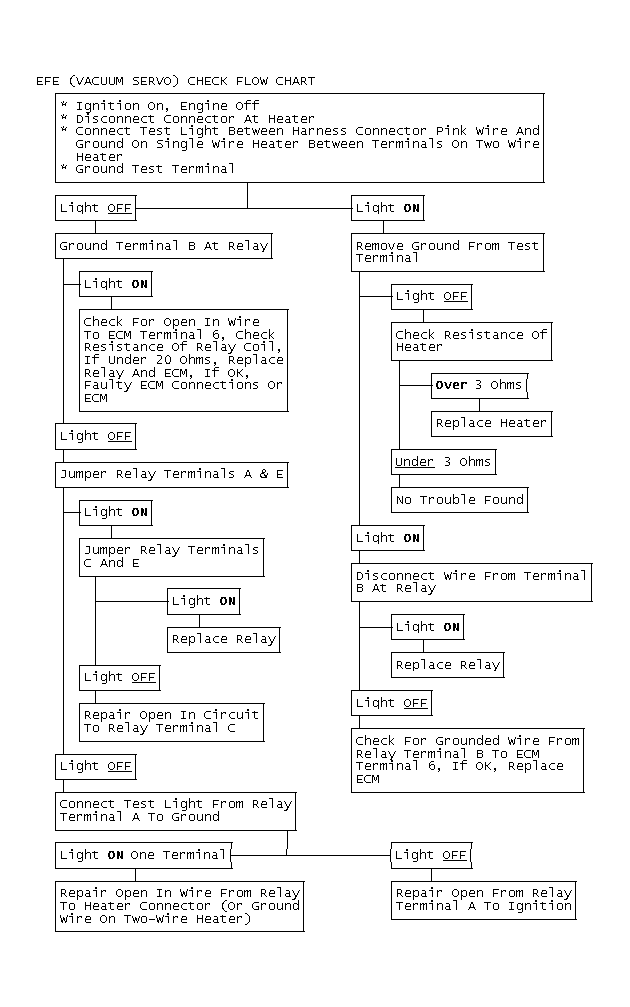

Fig 2: EFE (Vacuum Servo) Check Flow Chart
