System Specifications

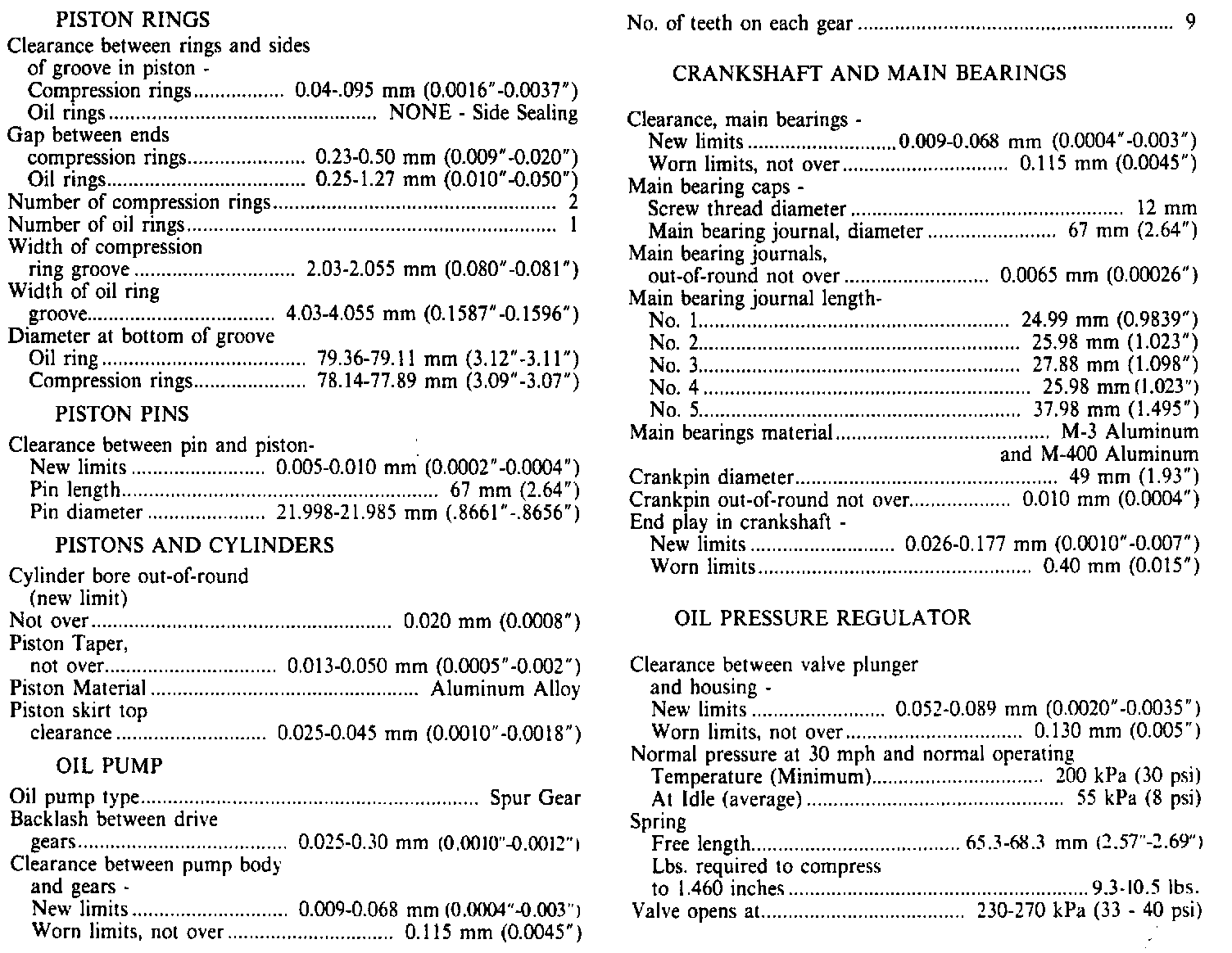

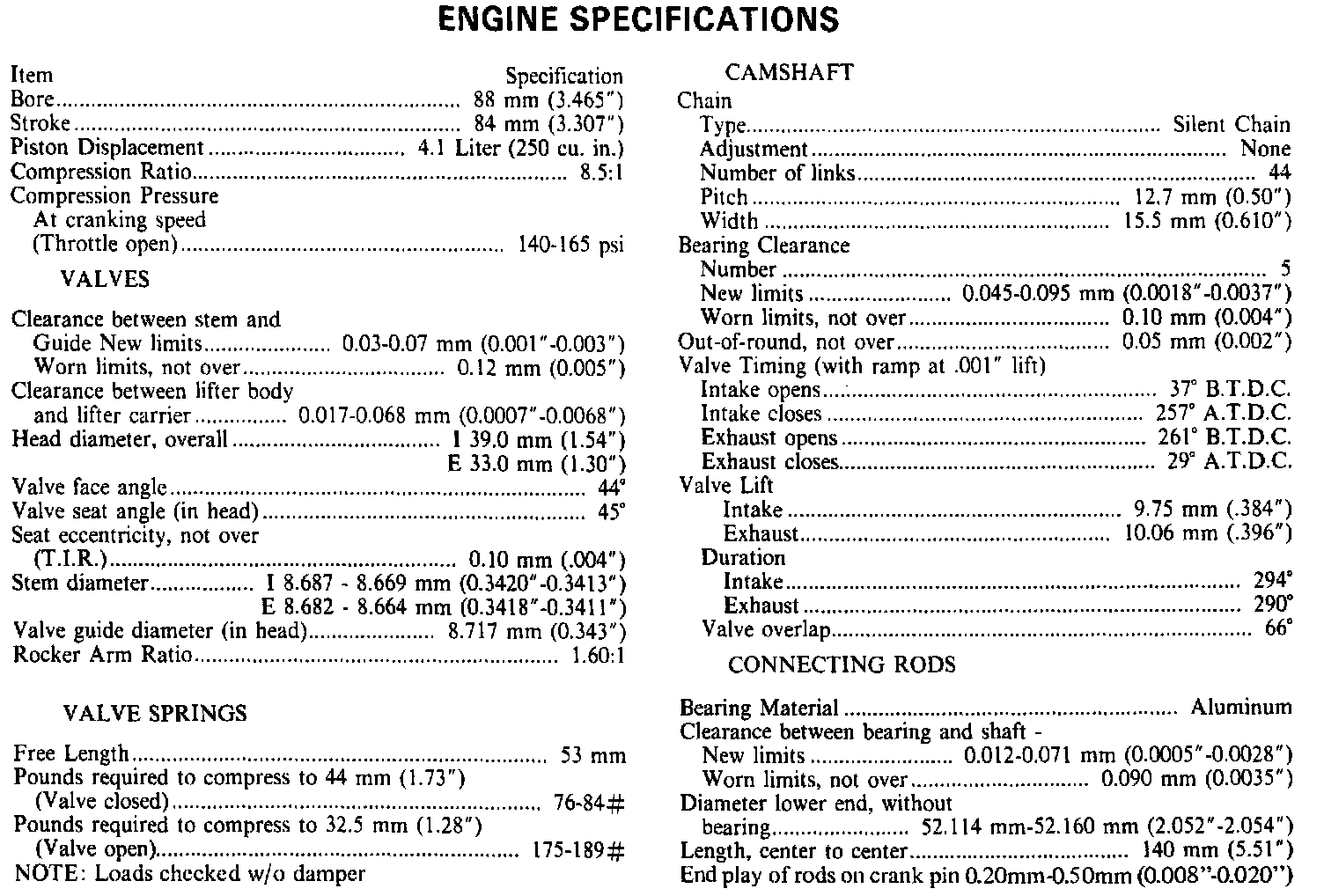

Engine Specifications:





Engine Specifications:

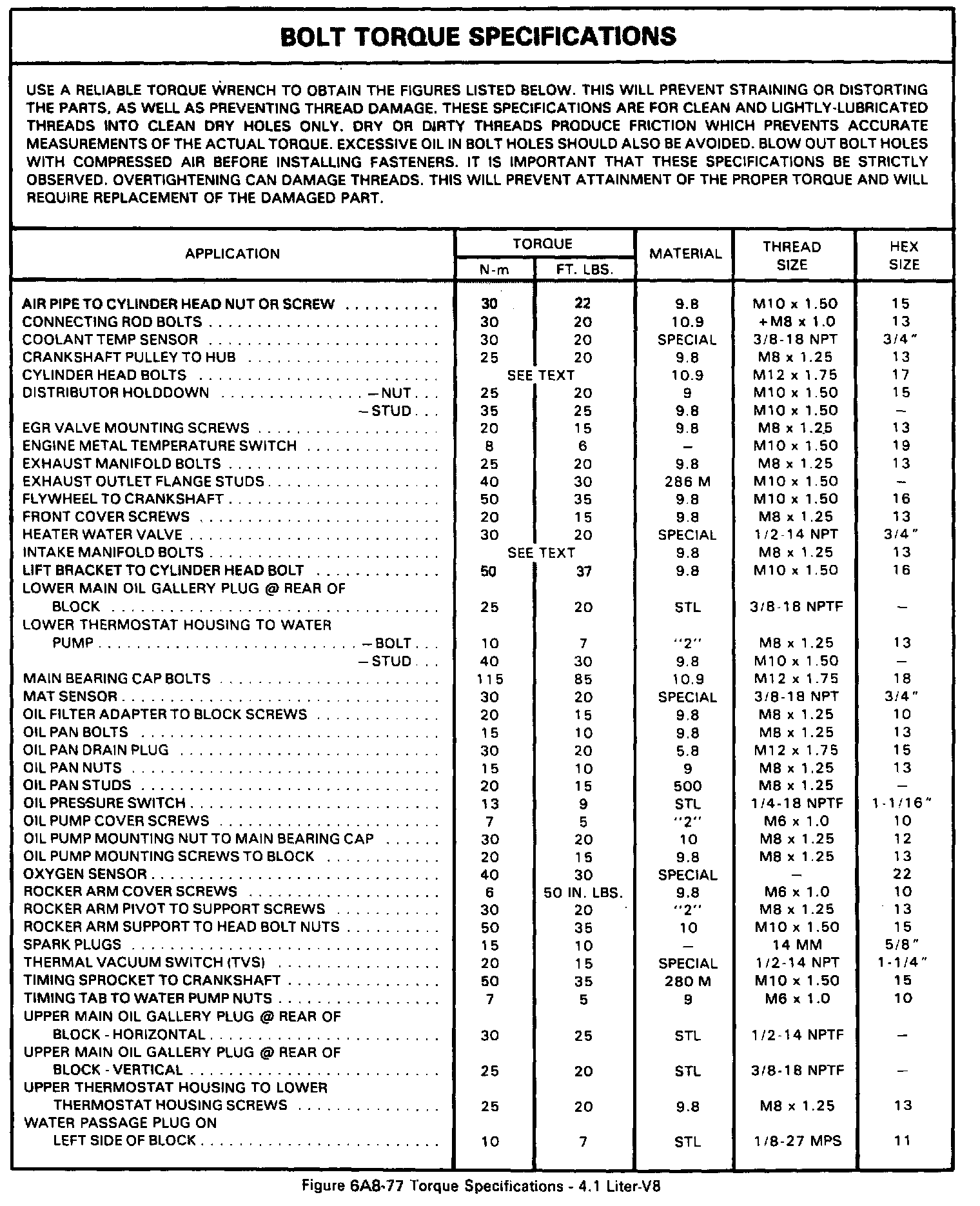

Bolt Torque Specifications:

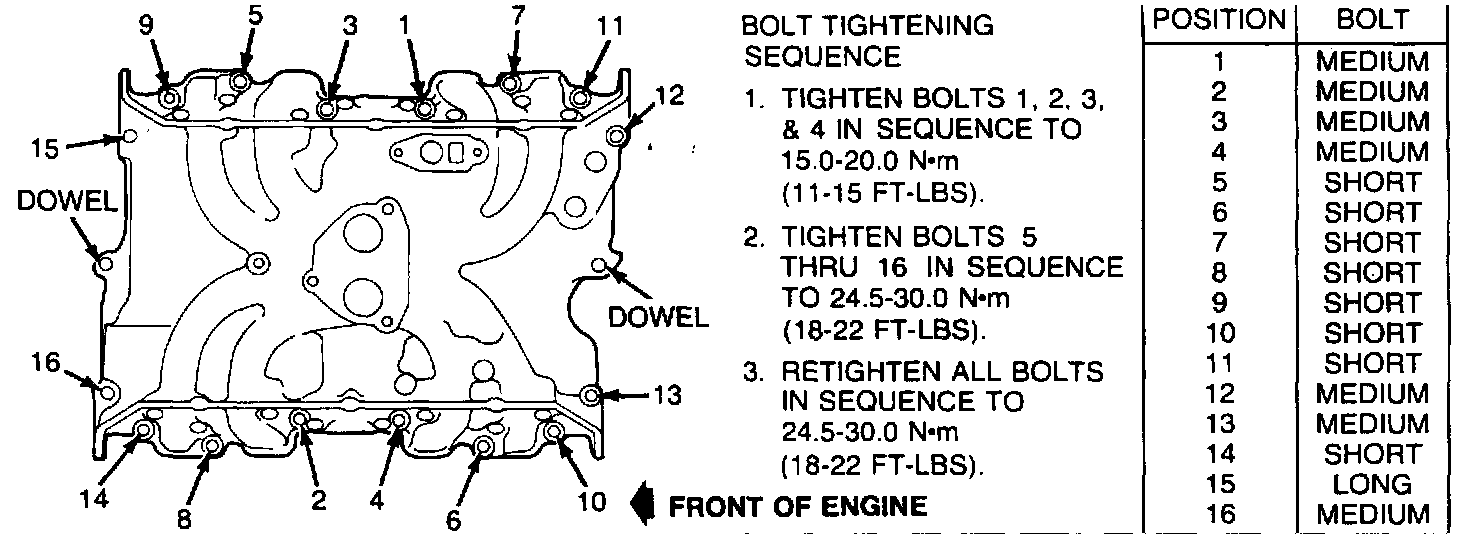

Intake Manifold Torque Sequence:

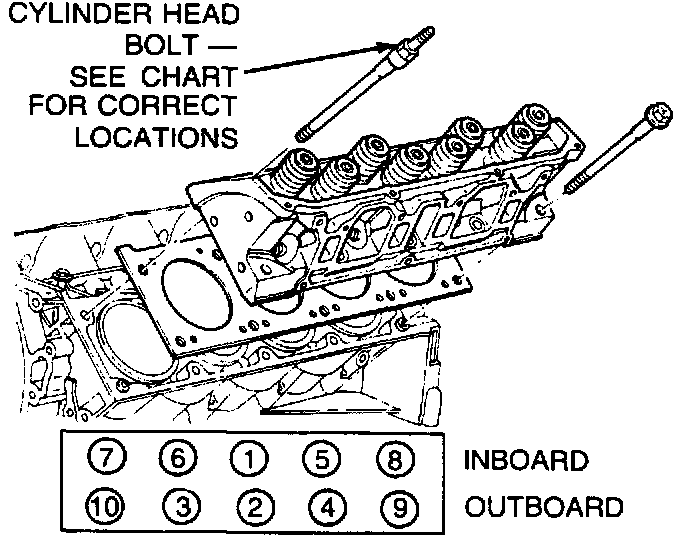

Cylinder Head Bolt Torque Sequence:
