Cadillac
>>
1981
>>
Seville 4.1L Eng VIN 4
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
DFI Control System
>>
Trouble Code Charts
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Trouble Code Charts

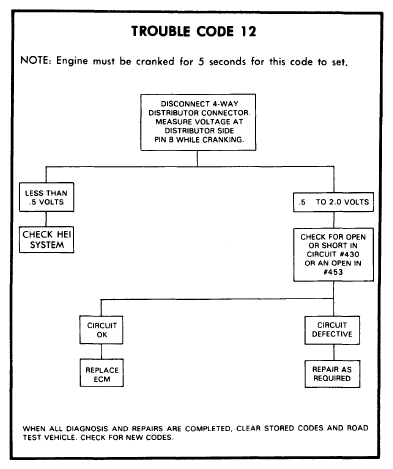

Fig 1: Trouble Code 12
Courtesy of GENERAL MOTORS COMPANY

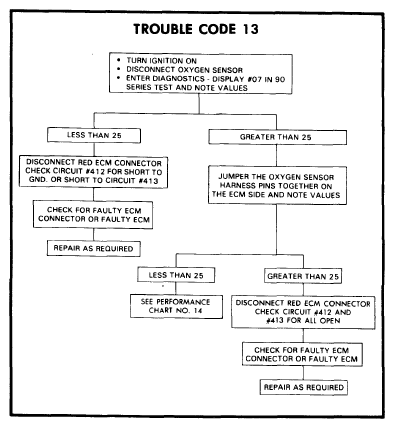

Fig 2: Trouble Code 13
Courtesy of GENERAL MOTORS COMPANY

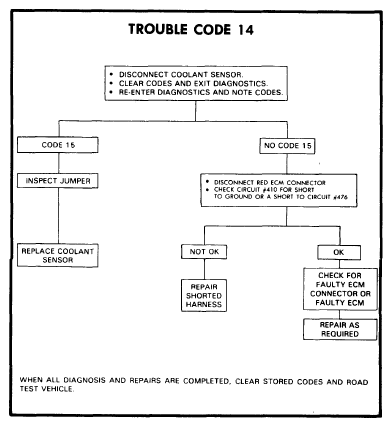

Fig 3: Trouble Code 14
Courtesy of GENERAL MOTORS COMPANY

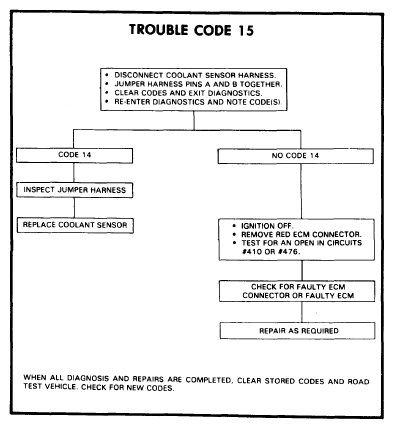

Fig 4: Trouble Code 15
Courtesy of GENERAL MOTORS COMPANY
Fig 5: Trouble Code 16
Courtesy of GENERAL MOTORS COMPANY
Fig 6: Trouble Code 17
Courtesy of GENERAL MOTORS COMPANY

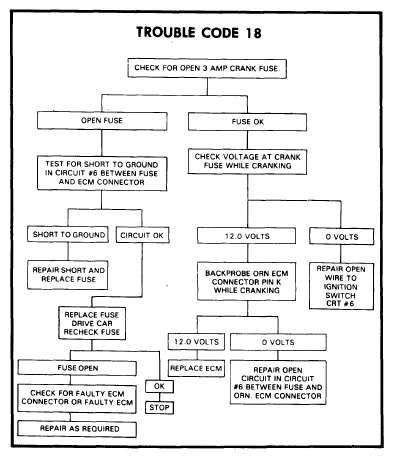

Fig 7: Trouble Code 18
Courtesy of GENERAL MOTORS COMPANY

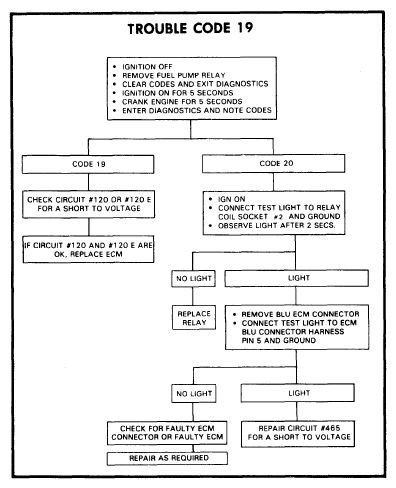

Fig 8: Trouble Code 19
Courtesy of GENERAL MOTORS COMPANY

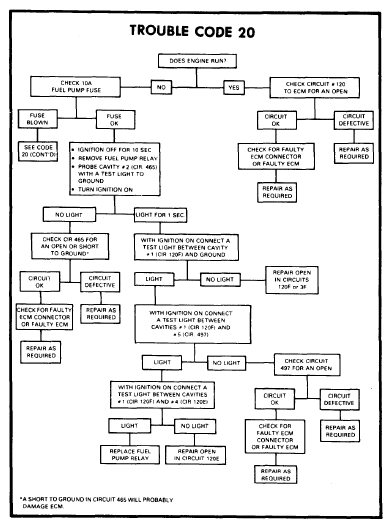

Fig 9: Trouble Code 20
Courtesy of GENERAL MOTORS COMPANY

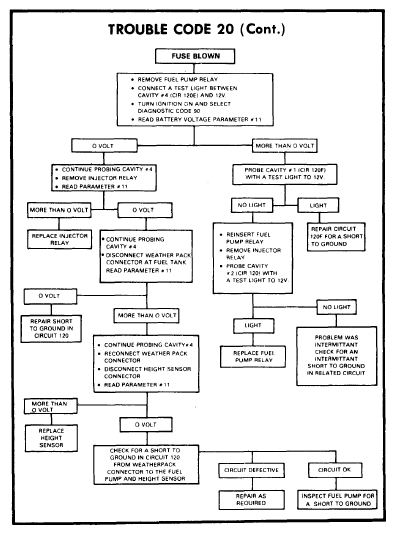

Fig 10: Trouble Code 20 (Cont.)
Courtesy of GENERAL MOTORS COMPANY
Fig 11: Trouble Code 21
Courtesy of GENERAL MOTORS COMPANY

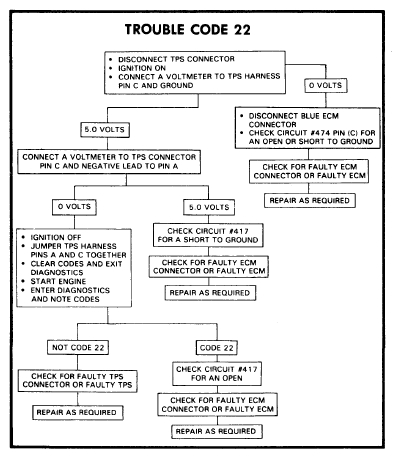

Fig 12: Trouble Code 22
Courtesy of GENERAL MOTORS COMPANY

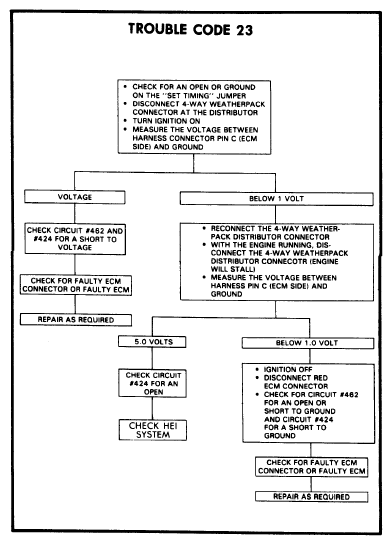

Fig 13: Trouble Code 23
Courtesy of GENERAL MOTORS COMPANY

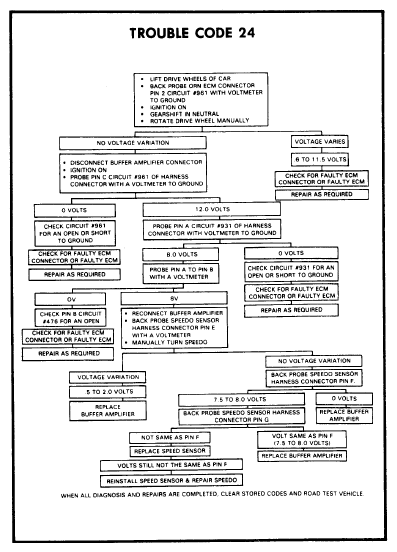

Fig 14: Trouble Code 24
Courtesy of GENERAL MOTORS COMPANY

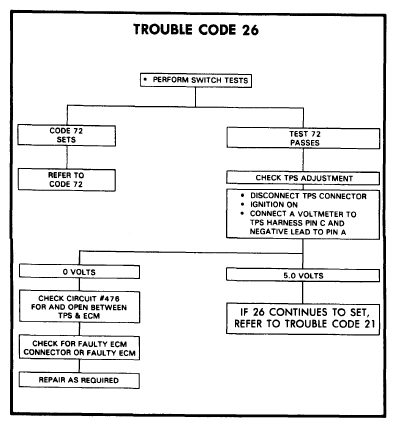

Fig 15: Trouble Code 26
Courtesy of GENERAL MOTORS COMPANY
Fig 16: Trouble Code 27
Courtesy of GENERAL MOTORS COMPANY

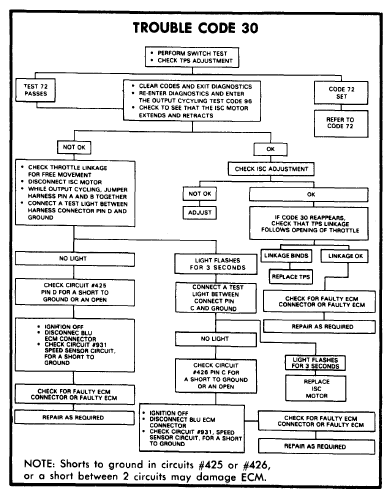

Fig 17: Trouble Code 30
Courtesy of GENERAL MOTORS COMPANY
Fig 18: Trouble Code 31
Courtesy of GENERAL MOTORS COMPANY

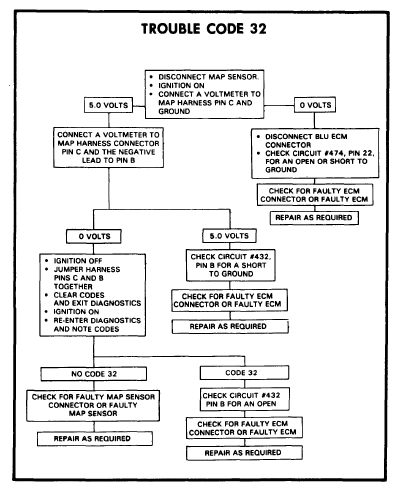

Fig 19: Trouble Code 32
Courtesy of GENERAL MOTORS COMPANY

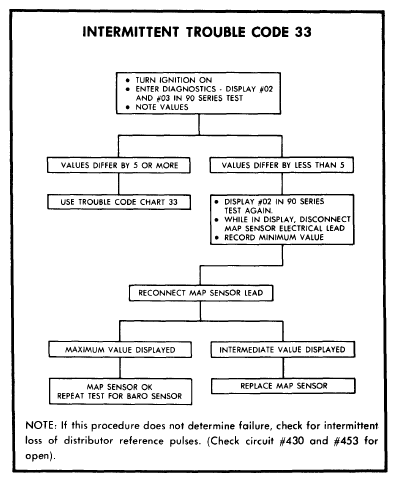

Fig 20: Intermittent Trouble Code 33
Courtesy of GENERAL MOTORS COMPANY

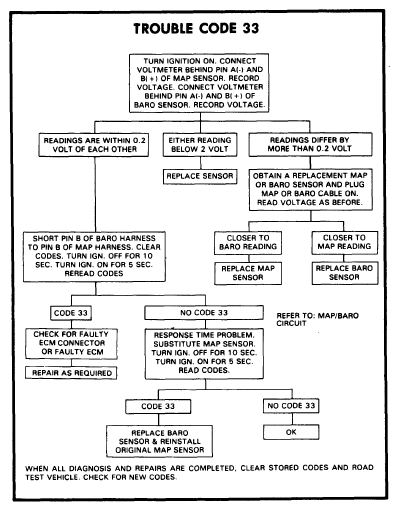

Fig 21: Trouble Code 33
Courtesy of GENERAL MOTORS COMPANY

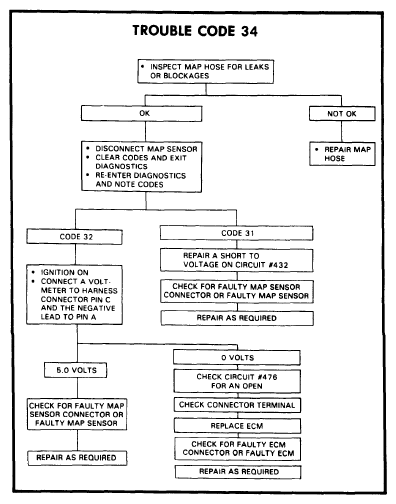

Fig 22: Trouble Code 34
Courtesy of GENERAL MOTORS COMPANY

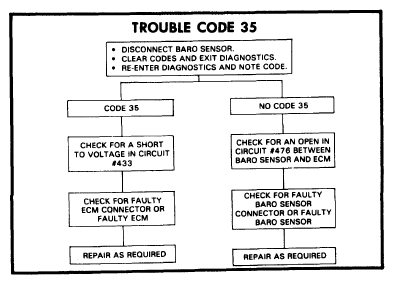

Fig 23: Trouble Code 35
Courtesy of GENERAL MOTORS COMPANY

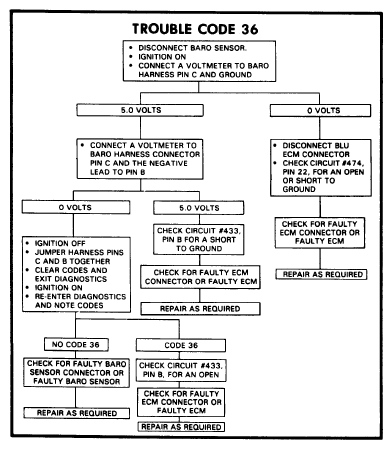

Fig 24: Trouble Code 36
Courtesy of GENERAL MOTORS COMPANY

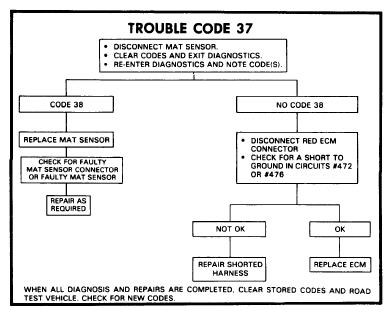

Fig 25: Trouble Code 37
Courtesy of GENERAL MOTORS COMPANY

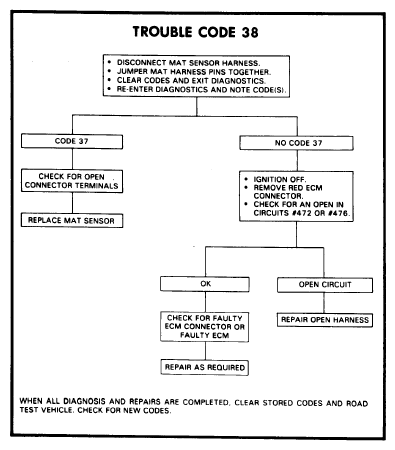

Fig 26: Trouble Code 38
Courtesy of GENERAL MOTORS COMPANY

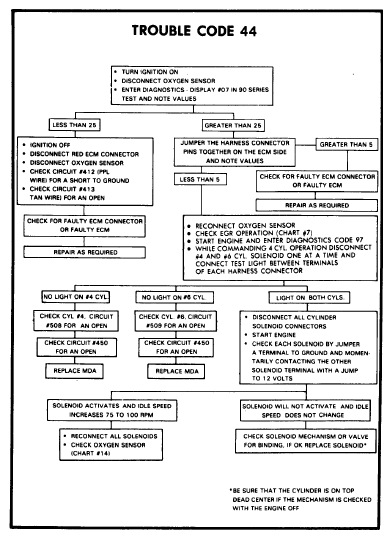

Fig 27: Trouble Code 44
Courtesy of GENERAL MOTORS COMPANY

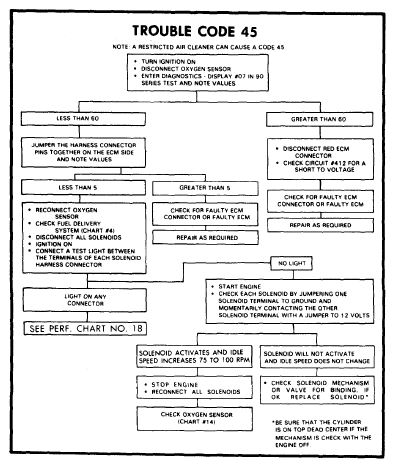

Fig 28: Trouble Code 45
Courtesy of GENERAL MOTORS COMPANY
Fig 29: Trouble Code 60
Courtesy of GENERAL MOTORS COMPANY

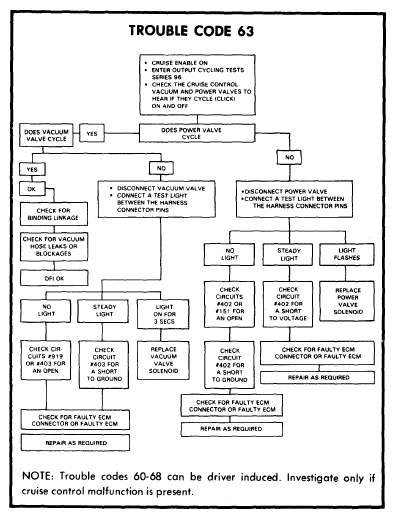

Fig 30: Trouble Code 63
Courtesy of GENERAL MOTORS COMPANY
Fig 31: Trouble Code 61 & 68
Courtesy of GENERAL MOTORS COMPANY

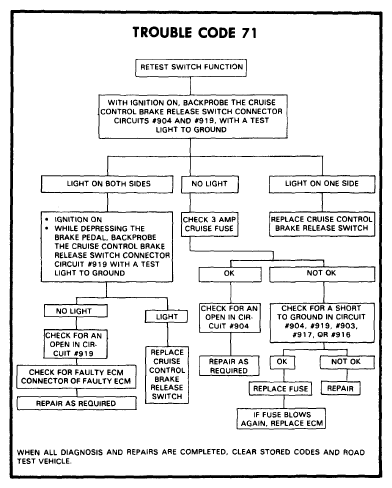

Fig 32: Trouble Code 71
Courtesy of GENERAL MOTORS COMPANY

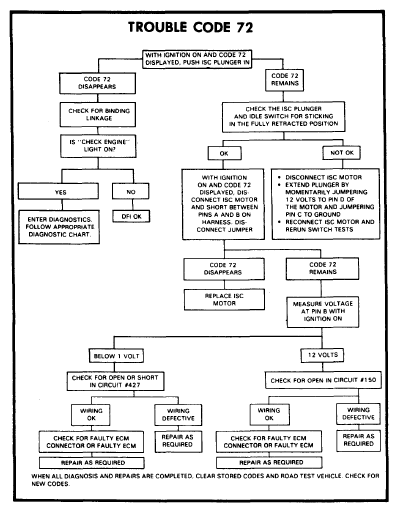

Fig 33: Trouble Code 72
Courtesy of GENERAL MOTORS COMPANY

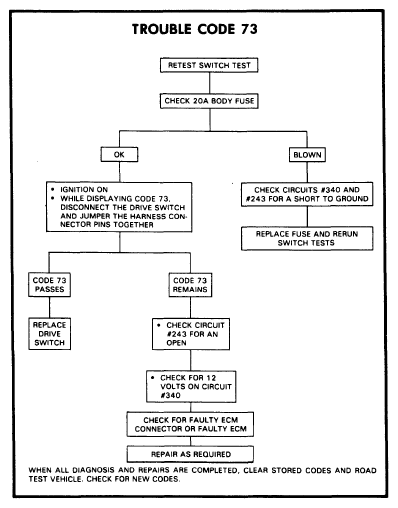

Fig 34: Trouble Code 73
Courtesy of GENERAL MOTORS COMPANY
Fig 35: Trouble Code 74
Courtesy of GENERAL MOTORS COMPANY

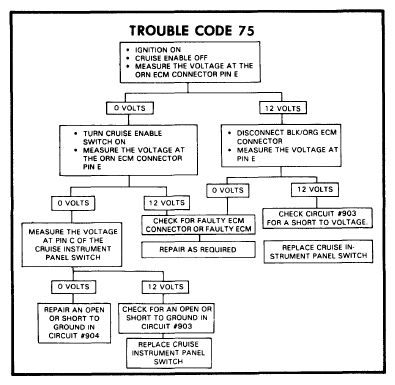

Fig 36: Trouble Code 75
Courtesy of GENERAL MOTORS COMPANY

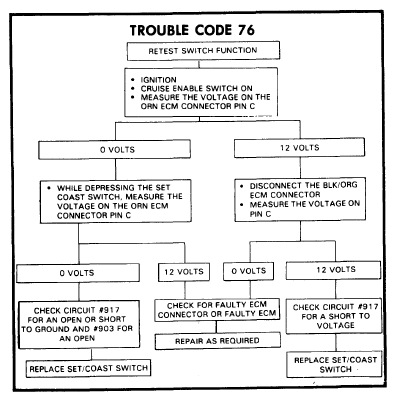

Fig 37: Trouble Code 76
Courtesy of GENERAL MOTORS COMPANY

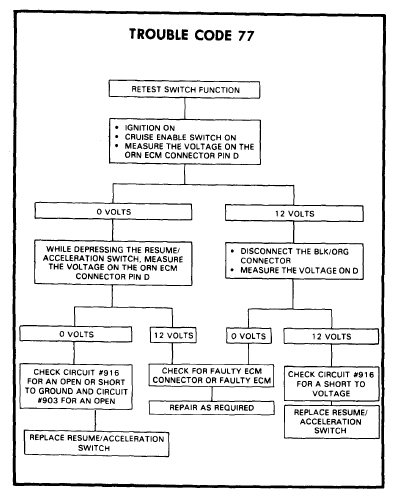

Fig 38: Trouble Code 77
Courtesy of GENERAL MOTORS COMPANY

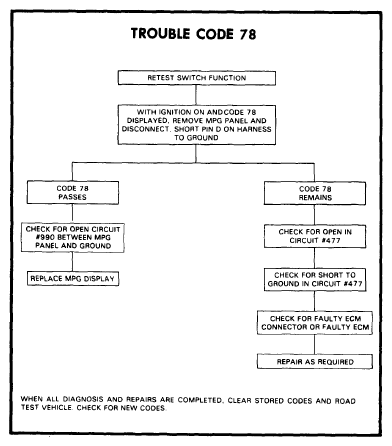

Fig 39: Trouble Code 78
Courtesy of GENERAL MOTORS COMPANY

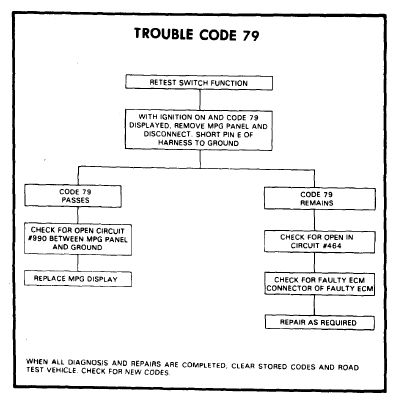

Fig 40: Trouble Code 79
Courtesy of GENERAL MOTORS COMPANY

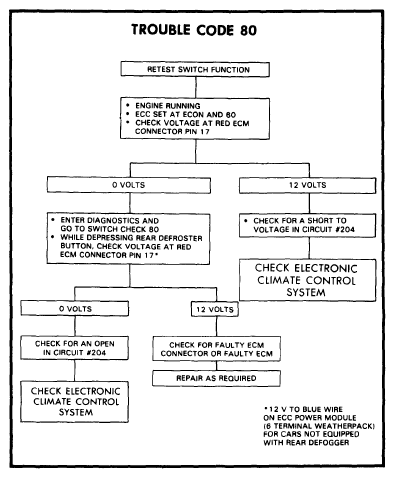

Fig 41: Trouble Code 80
Courtesy of GENERAL MOTORS COMPANY

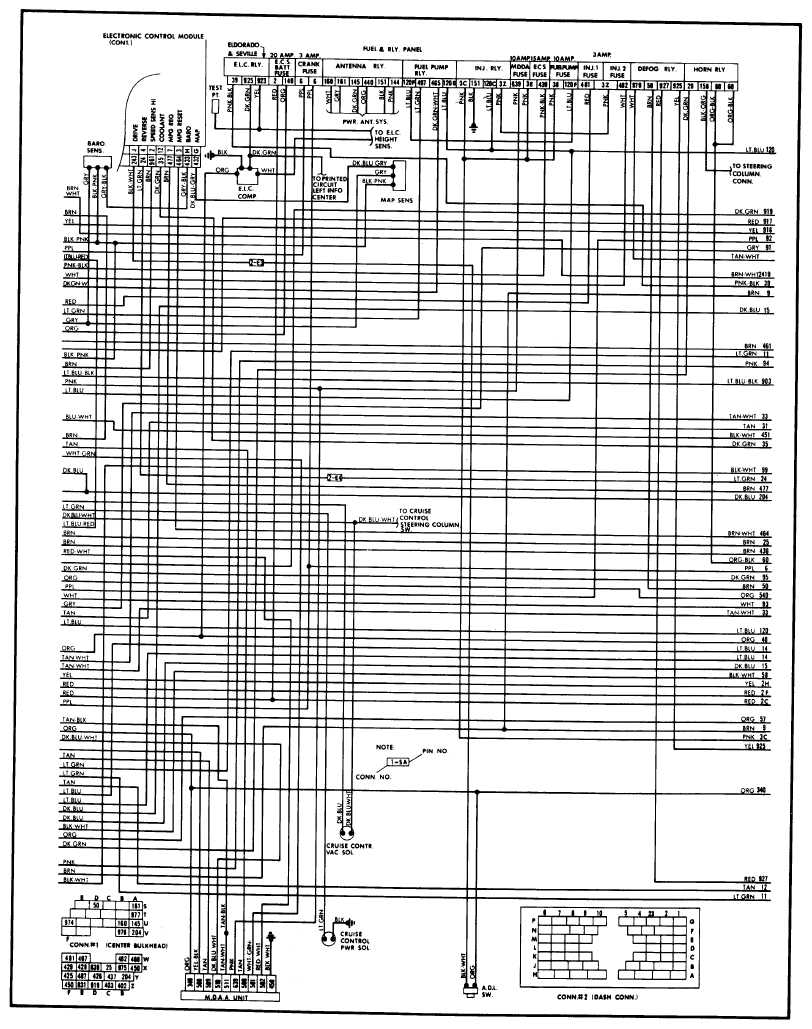

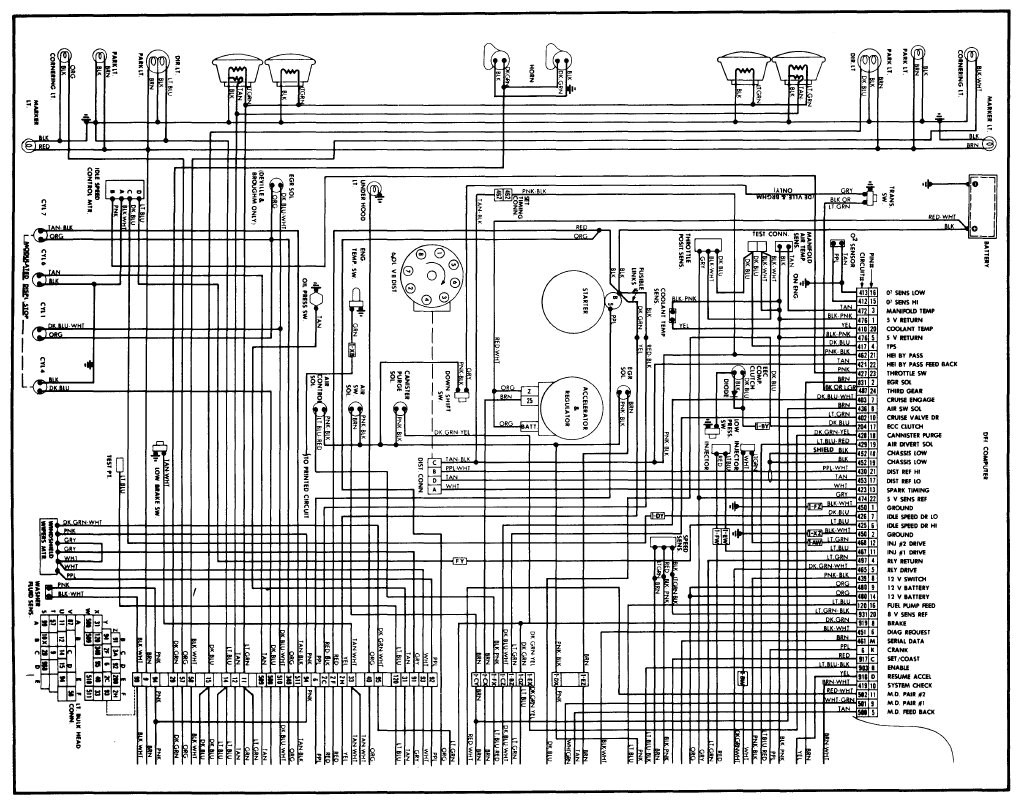

Fig 42: Cadillac DFI Control System Wiring Diagram (Part 1)
Courtesy of GENERAL MOTORS COMPANY
Fig 43: Cadillac DFI Control System Wiring Diagram (Part 2)
Courtesy of GENERAL MOTORS COMPANY
