Installation Procedure

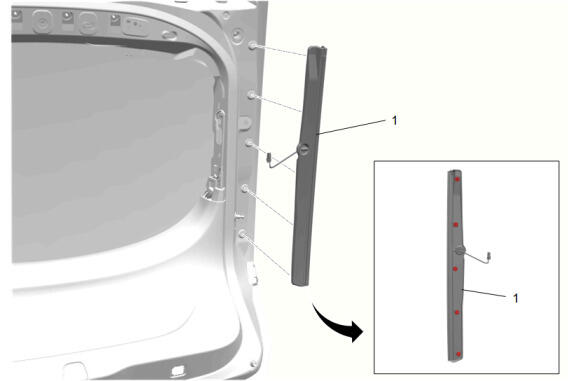

  1. GM5993483

    Liftgate Side Sensor (1) - Install

  2. Connect the electrical connector.

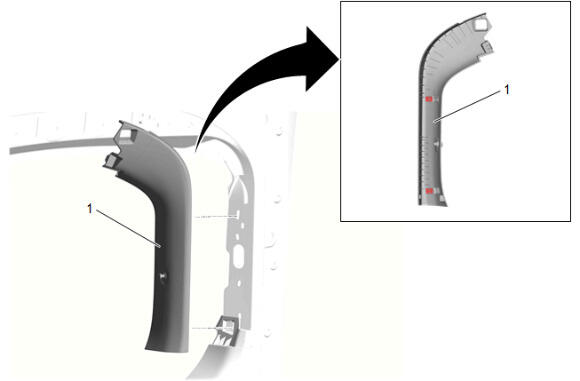

  3. GM5985157

    Liftgate Upper Side Trim Finish Panel (1) - Install

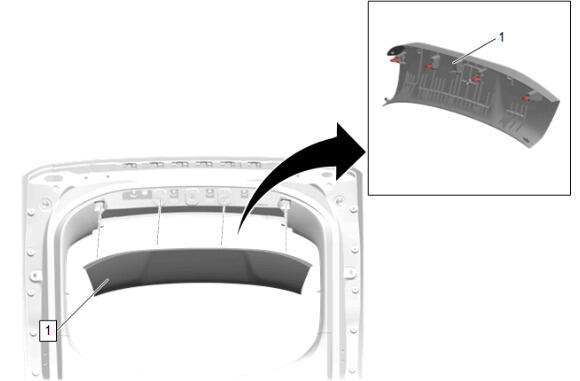

  4. GM5985152

    Liftgate Upper Center Trim Finish Panel (1) - Install

  5. Close the liftgate.
