Installation Procedure

  1. GM5925513

    Liftgate Close Switch (1) - Install

  2. Secure the retaining tabs.

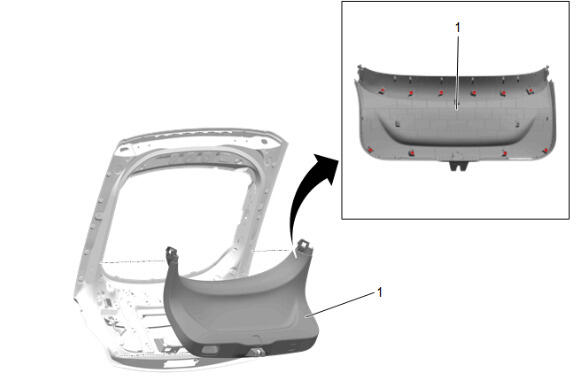

  3. GM5985173

    Liftgate Lower Trim Finish Panel (1) - Install

  4. GM5985157

    Liftgate Upper Side Trim Finish Panel (1) - Left Side and Right Side - Install [2x]

  5. GM5985152

    Liftgate Upper Center Trim Finish Panel (1) - Install

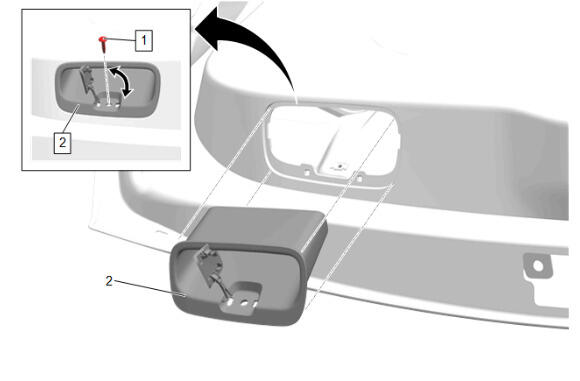

  6. GM5985171

    Install the liftgate trim finish panel pull cup (2).

    7. CAUTION:

    Refer to Fastener Caution .

  7. Liftgate Lower Trim Finish Panel Bolt (1) - Install and tighten - Fastener Specifications
  8. Close the liftgate.
