Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

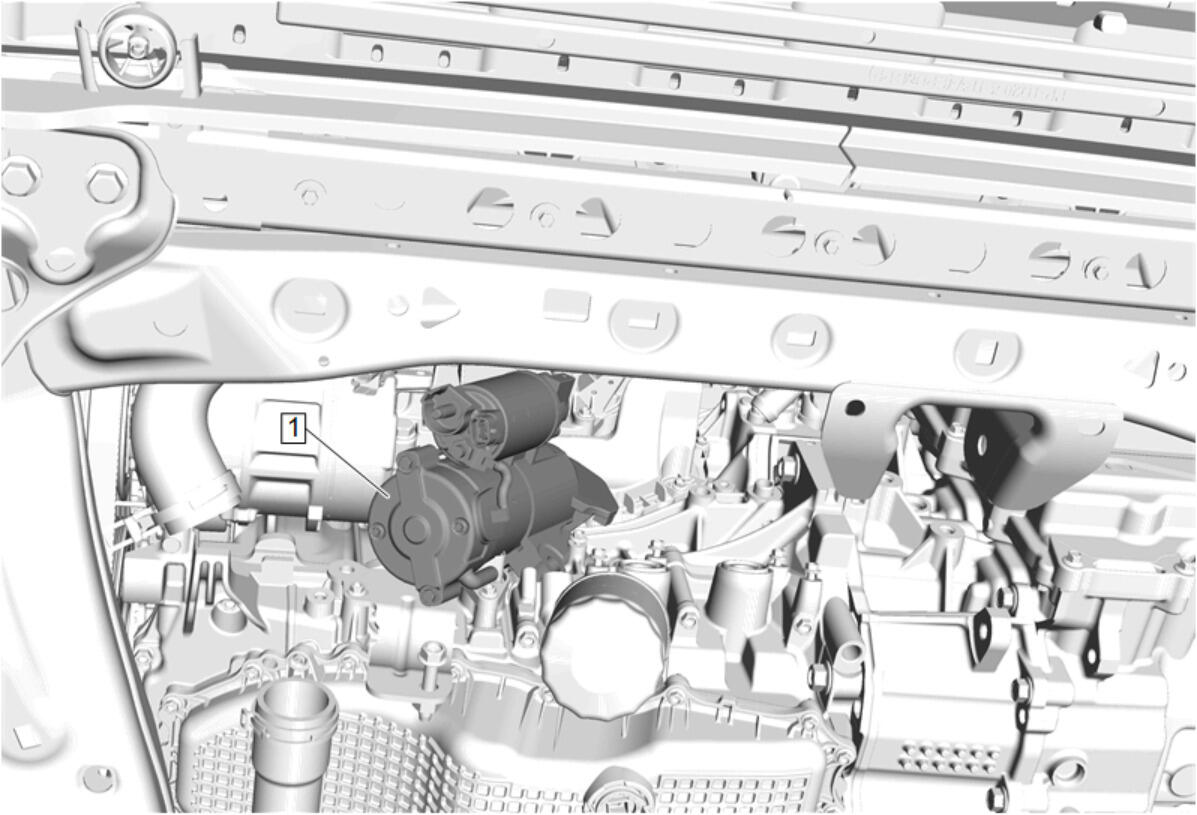

Starter (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution

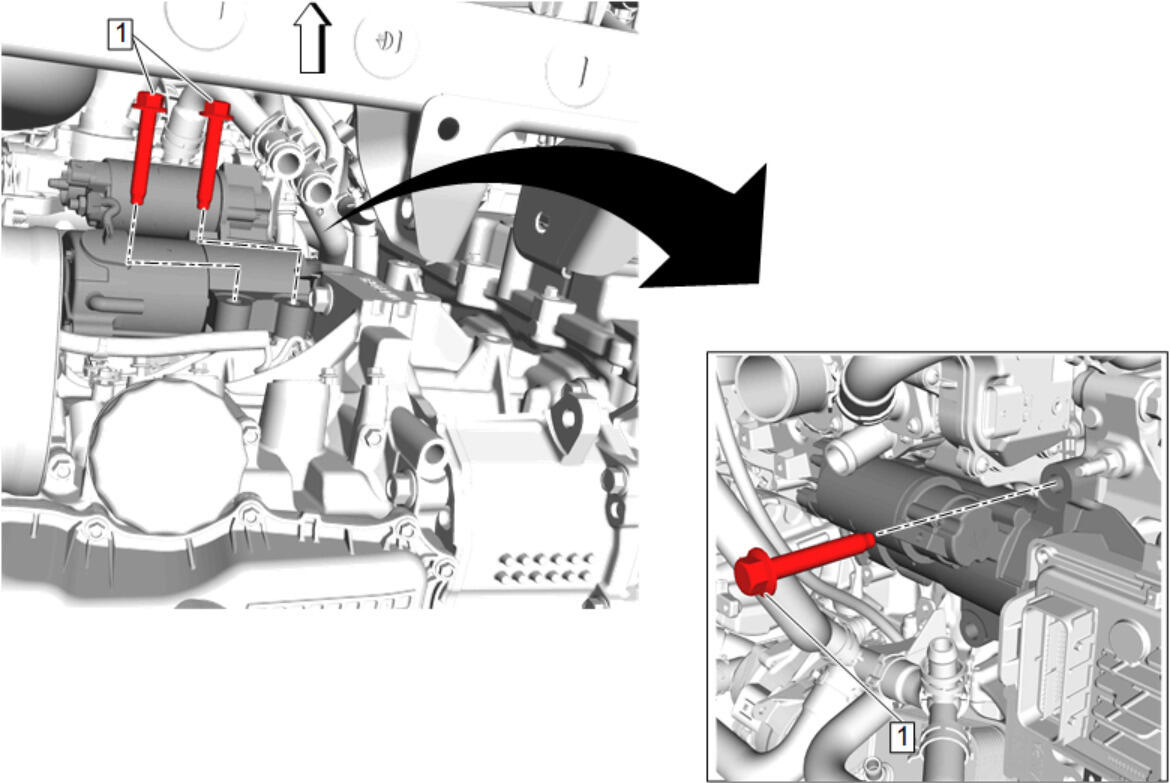

Starter Bolt (1) - Install and tighten [3x] 58 N.m (43 lb ft)
Courtesy of GENERAL MOTORS COMPANY

Battery Positive and Negative Cable - Install
Battery Negative Cable Ground Bolt (3) - Install and tighten - Battery Positive and Negative Cable Replacement
Courtesy of GENERAL MOTORS COMPANY

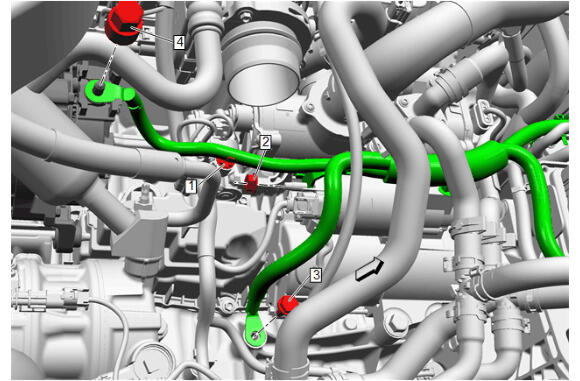

Battery Positive Cable (3) - Install
Battery Positive Cable Nut (4) @Starter Solenoid (2) - Install and tighten 13 N.m (115 lb in)

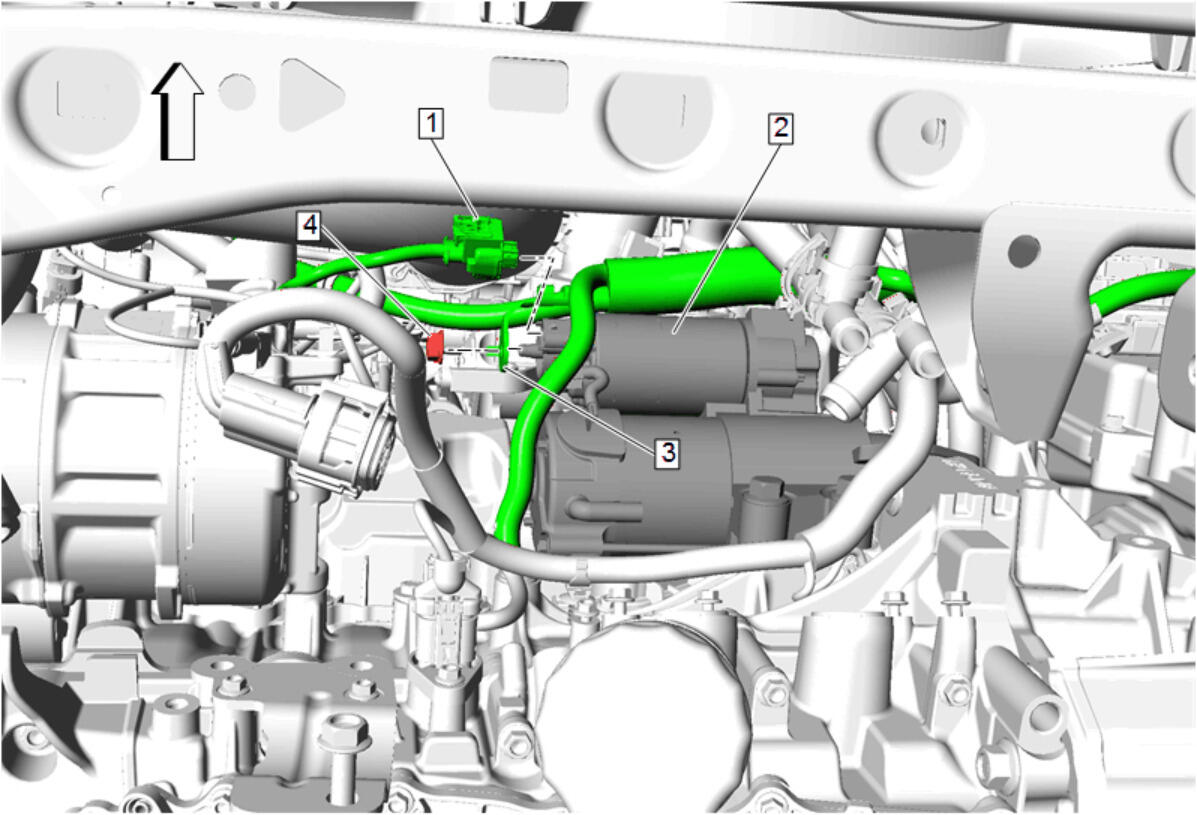

Electrical Connector (1) - Connect
Courtesy of GENERAL MOTORS COMPANY

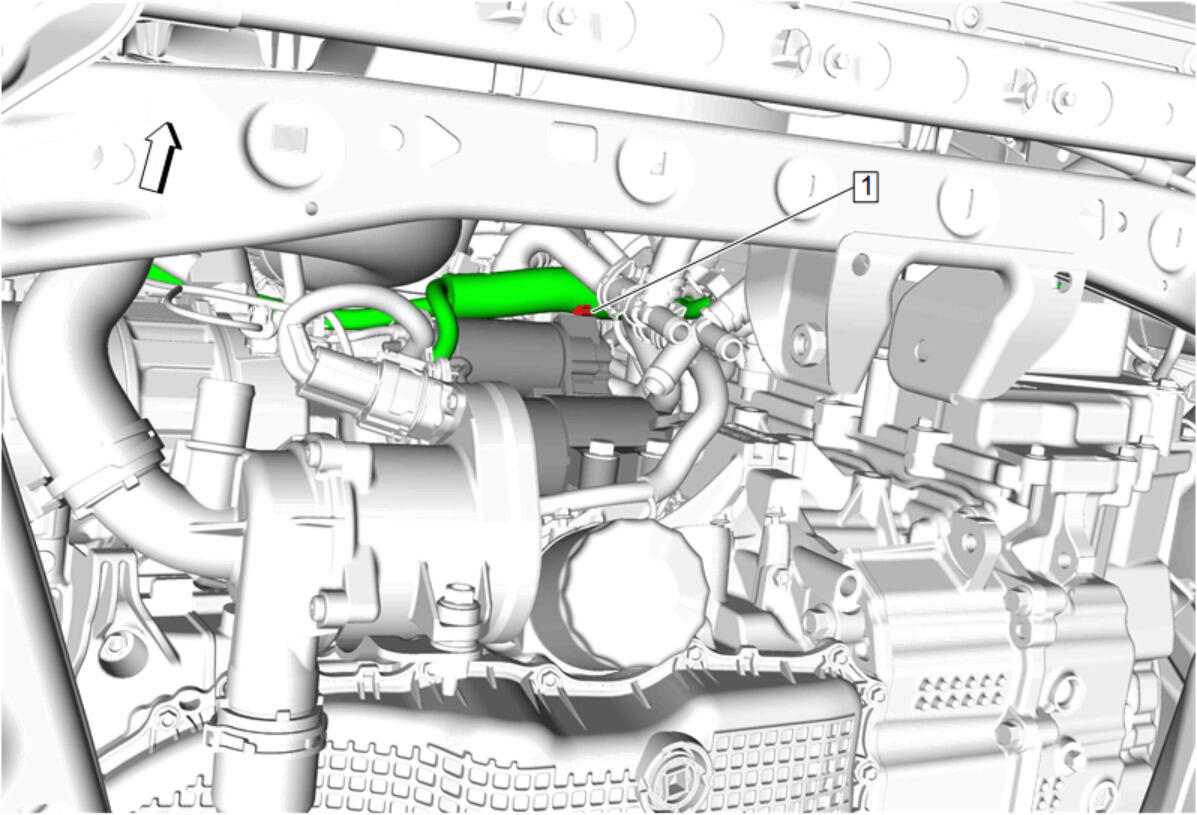

Retainer (1) - Engage
Courtesy of GENERAL MOTORS COMPANY

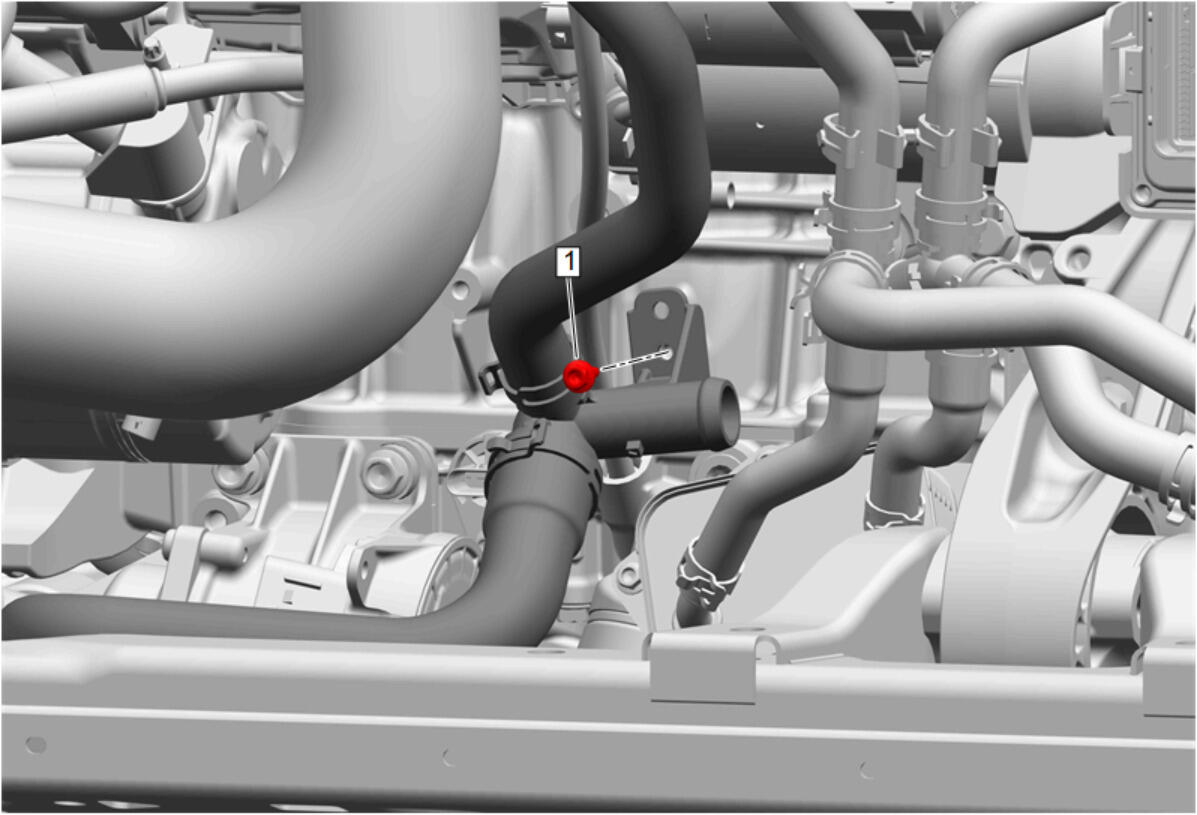

Install the thermostat bypass hose connector and tighten the thermostat bypass hose bolt (1). Thermostat Bypass Hose Replacement
Courtesy of GENERAL MOTORS COMPANY

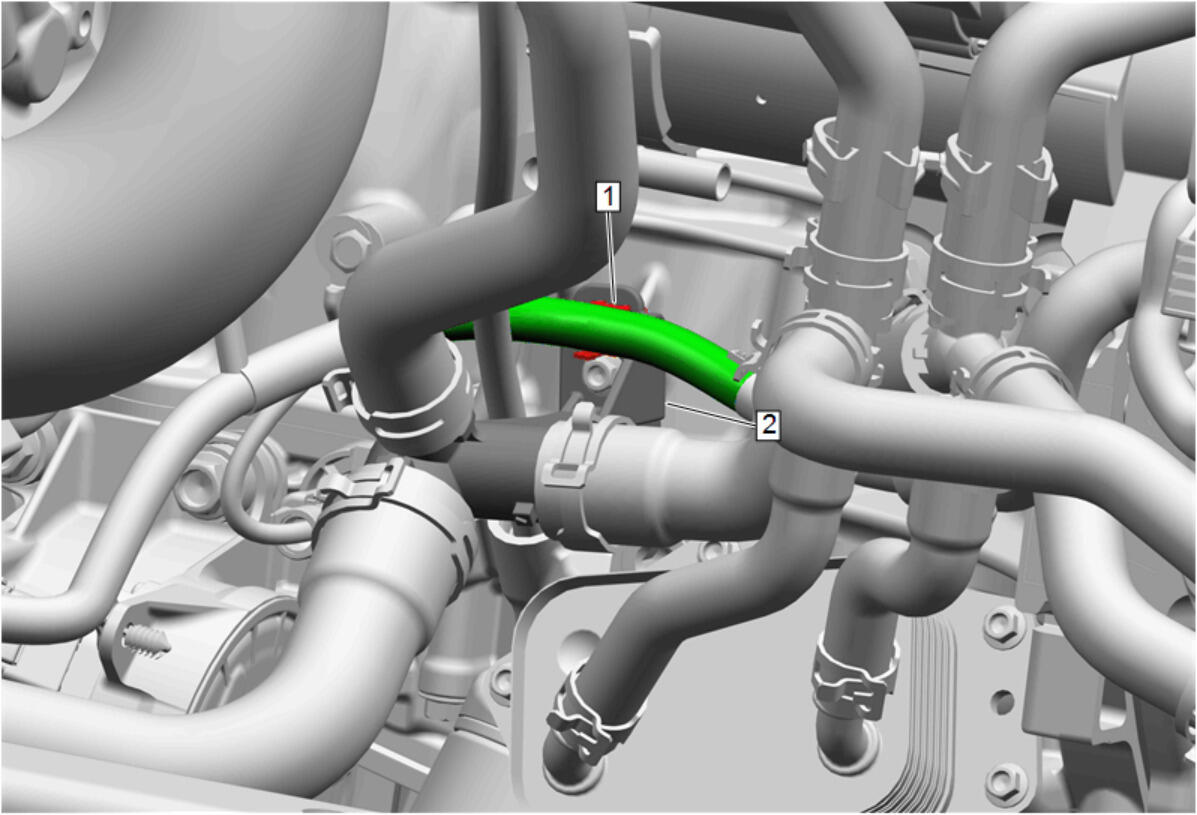

Engine Wiring Harness Clip (1) @Thermostat Bypass Hose (2) - Engage
Front Compartment Air Deflector - Install - Front Compartment Air Deflector Replacement (Base) , or Front Compartment Air Deflector Replacement (Oil Filter Access)
Lower the vehicle.
Oil Level Indicator Tube - Install - Oil Level Indicator Tube Replacement
Connect the negative battery cable. Battery Negative Cable Disconnection and Connection
