Removal Procedure

  1. Front Side Door Window Inner Sealing Strip - Remove - Front Side Door Window Inner Sealing Strip Replacement
  2. Front Side Door Window Belt Reveal Molding - Remove - Front Side Door Window Belt Reveal Molding Replacement
  3. Front Side Door Window Channel Front Retainer - Remove - Front Side Door Window Channel Front Retainer Replacement
  4. Front Side Door Window Channel Retainer - Remove - Front Side Door Window Channel Retainer Replacement

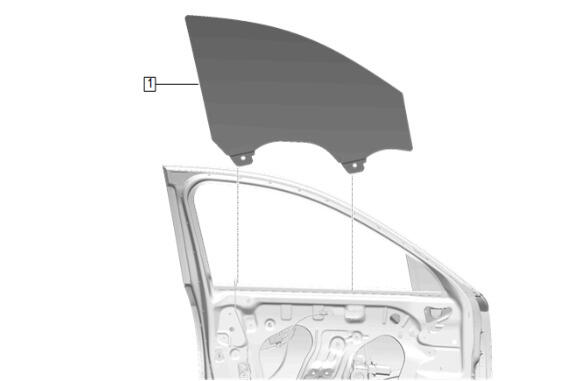

  5. GM6377894Courtesy of GENERAL MOTORS COMPANY

    Remove the window from the door frame.
