Removal Procedure

  1. Inside Rearview Mirror - Remove - Inside Rearview Mirror Replacement

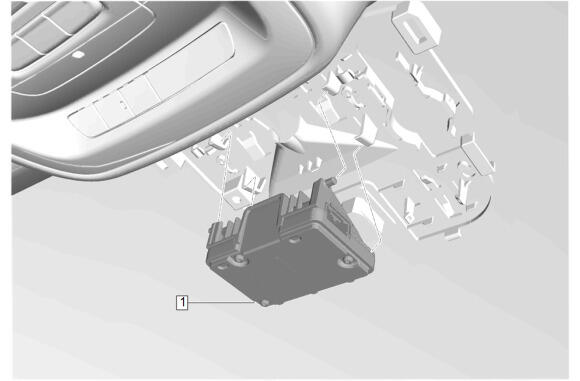

  2. GM6379503Courtesy of GENERAL MOTORS COMPANY

    Disconnect the electrical connector.

    3. NOTE:

    Observe the mounting and location of the front view camera to ensure proper reinstallation.

  3. Release the retaining tabs.
  4. Slide the front view camera (1) upward to release.
  5. Front View Camera (1) - Remove
