Front Side Door Window Control Switch Replacement

Courtesy of GENERAL MOTORS COMPANY

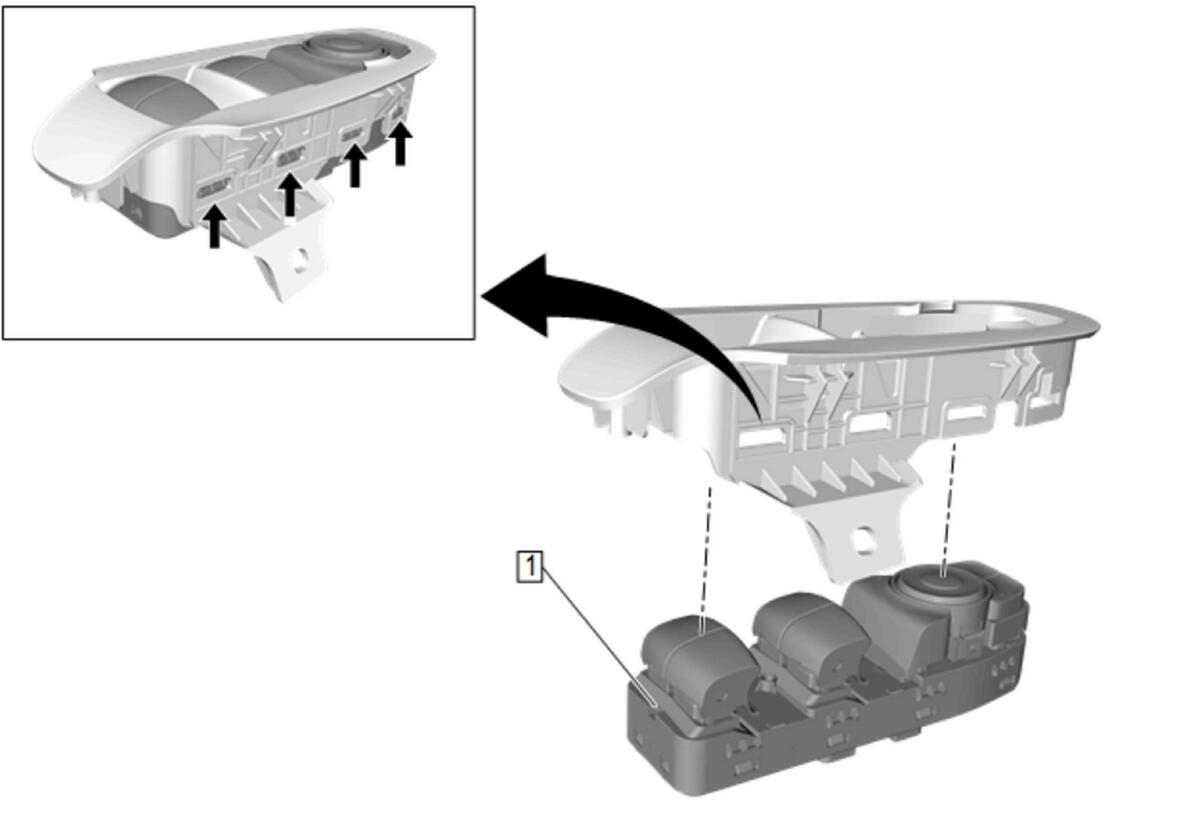

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedure Front Side Door Armrest Switch Mount Plate Replacement
1	Front Side Door Window Control Switch Procedure Use a flat bladed plastic tool to remove. Release the switch assembly from the switch mount plate by depressing the tabs along each side of the switch.

Callout

Component Name

Front Side Door Window Control Switch

Procedure

Use a flat bladed plastic tool to remove.
Release the switch assembly from the switch mount plate by depressing the tabs along each side of the switch.
