Removal Procedure

WARNING:

Diesel/Gasoline Vapors Warning

WARNING:

Safety Glasses Warning

  1. Relieve the fuel system pressure. Fuel Pressure Relief
  2. Drain the fuel tank. Fuel Tank Draining
  3. Fuel Tank Filler Door Latch Housing - Remove - Fuel Tank Filler Door Latch Housing Replacement (Buick) , or Fuel Tank Filler Door Latch Housing Replacement (Chevrolet)
  4. Raise and support the vehicle. Lifting and Jacking the Vehicle
  5. Remove the right rear tire and wheel assembly. Tire and Wheel Removal and Installation
  6. Rear Wheelhouse Liner - Right Side - Remove - Rear Wheelhouse Liner Replacement

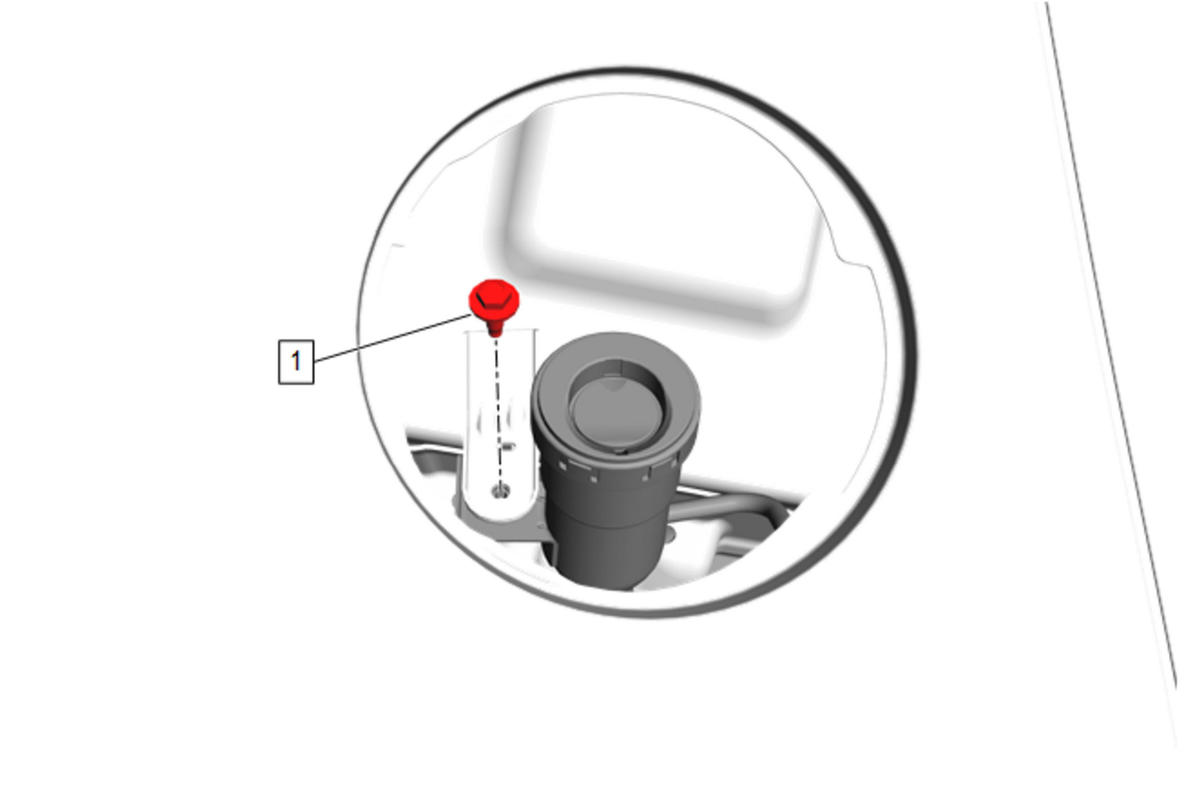

  7. GM5508974Courtesy of GENERAL MOTORS COMPANY

    Fuel Tank Filler Pipe Bolt (1) - Remove

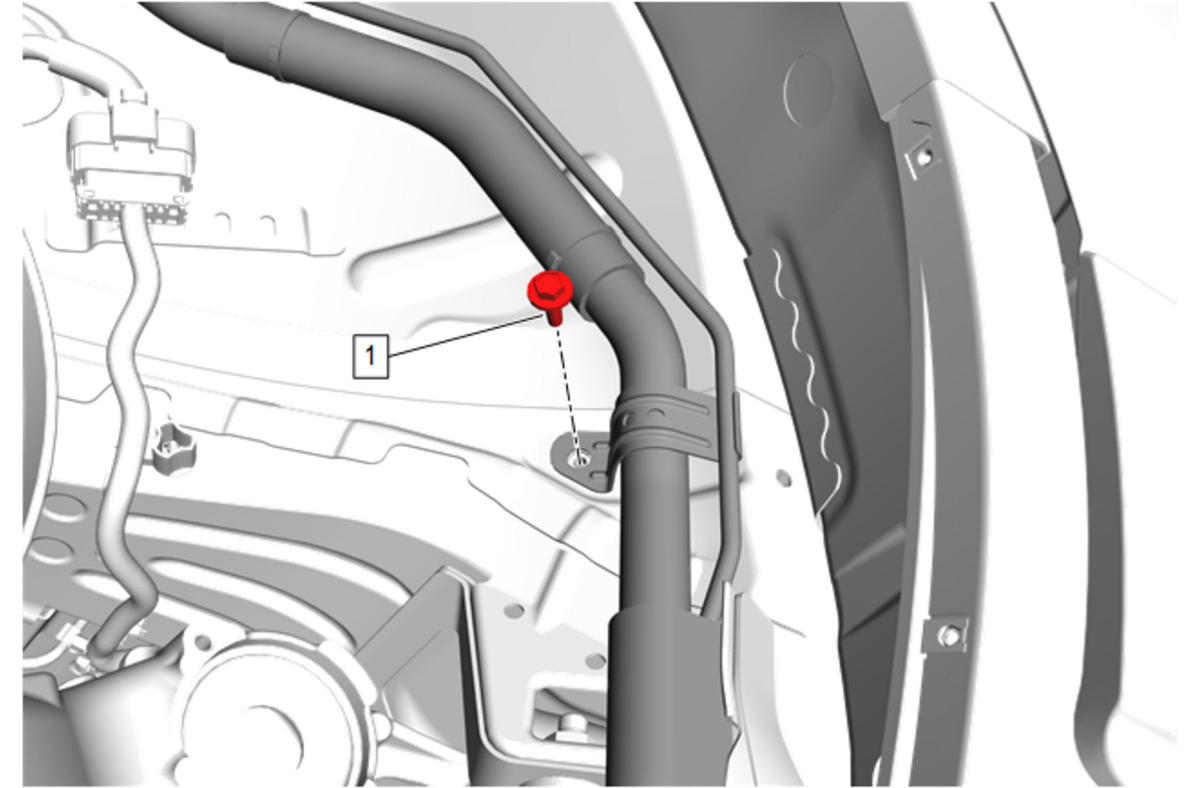

  8. GM5508975Courtesy of GENERAL MOTORS COMPANY

    Fuel Tank Filler Pipe Ground Bolt (1) - Remove

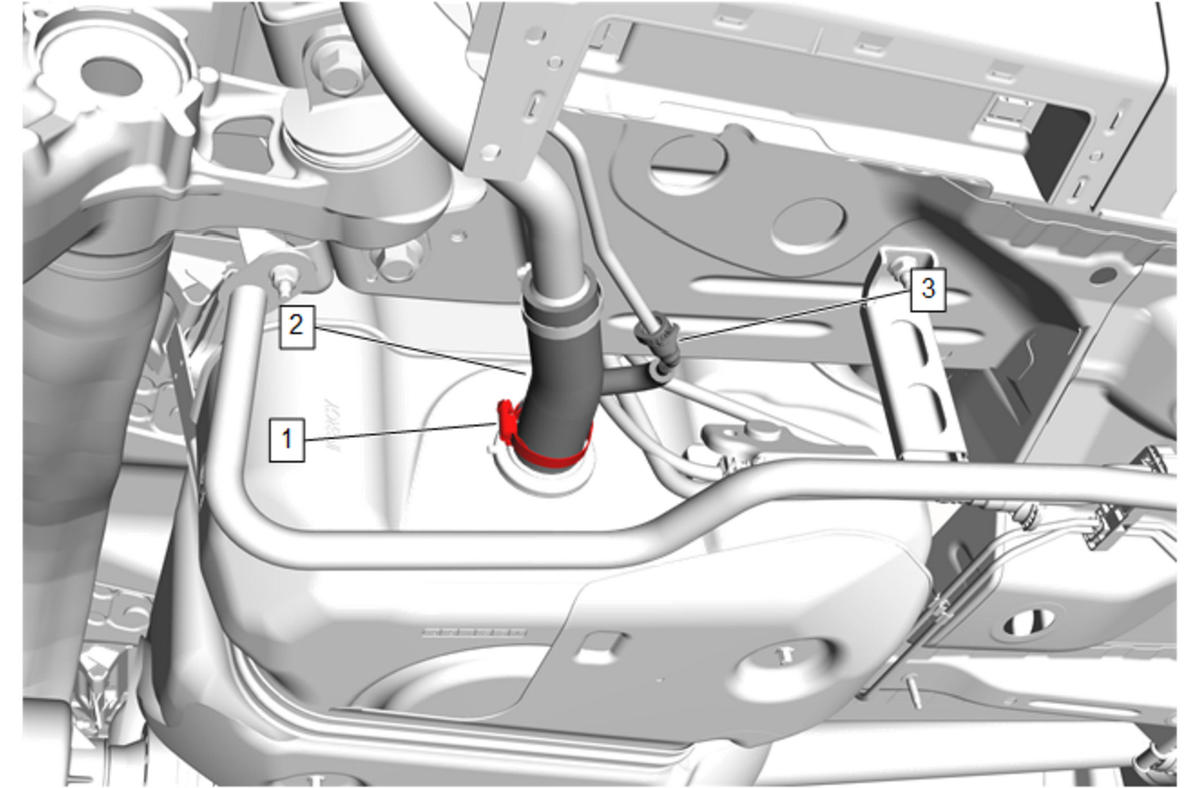

  9. GM5508978Courtesy of GENERAL MOTORS COMPANY

    Fuel Tank Filler Hose Clamp (1) @ Fuel Tank Filler Hose - Loosen

  10. Fuel Tank Filler Hose (2) @ Fuel Tank - Disconnect
  11. Evaporative Emission Pipe (3) @ Fuel Tank Filler Pipe - Disconnect - Plastic Collar Quick Connect Fitting Service

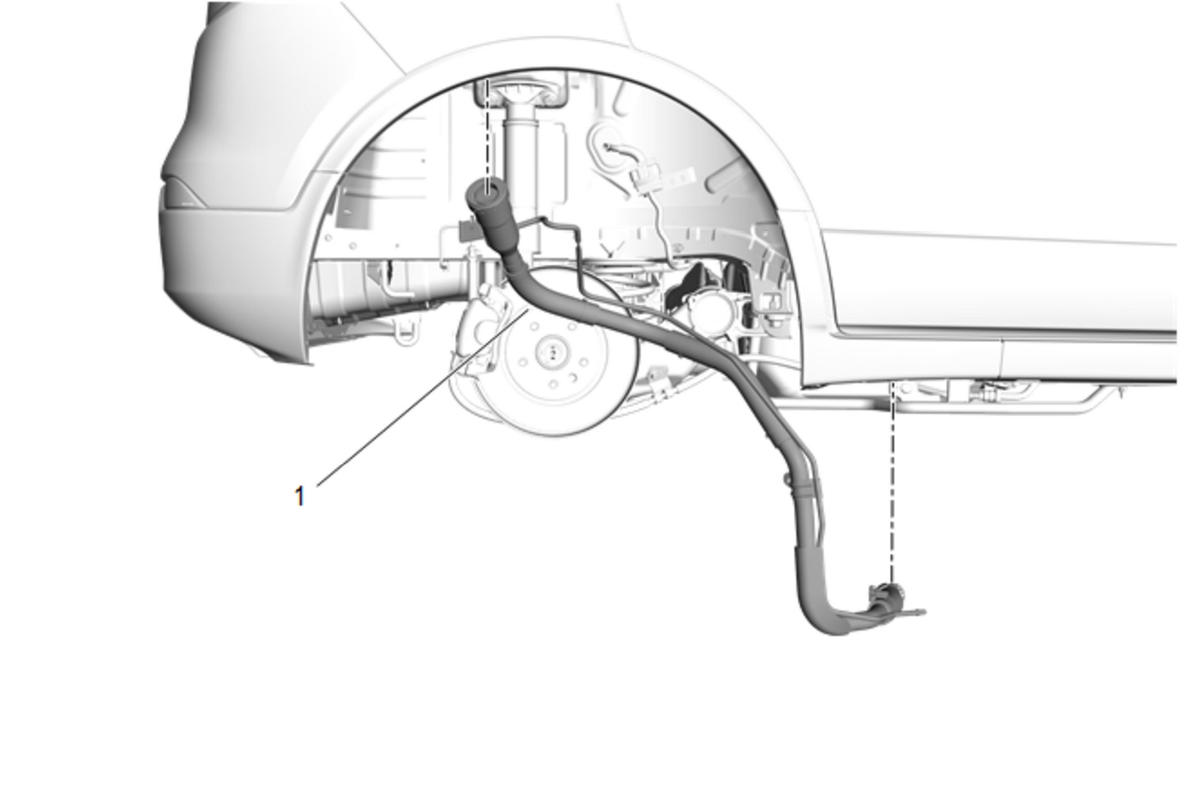

  12. GM5508979Courtesy of GENERAL MOTORS COMPANY

    Fuel Tank Filler Pipe (1) @ Vehicle - Remove
