Air Cleaner Inlet Duct Replacement

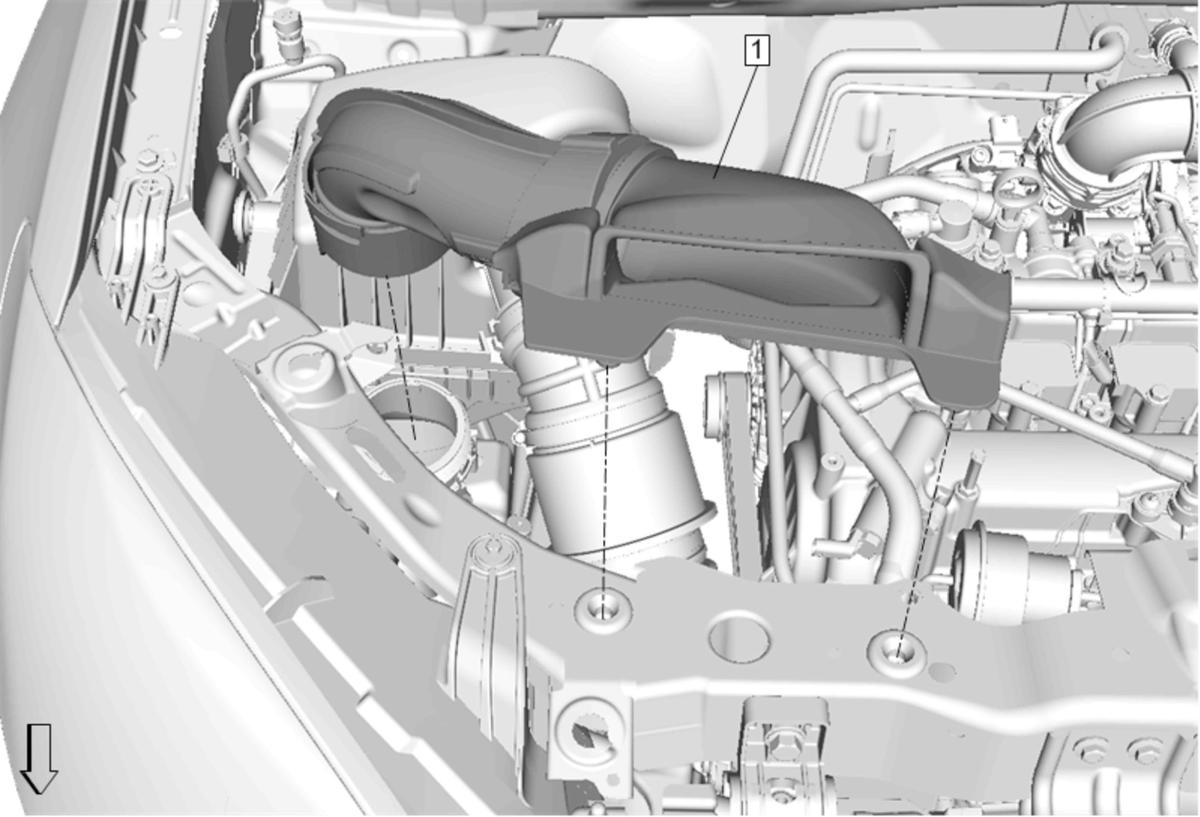

GM4591021Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Air Cleaner Inlet Duct
Procedure
Remove the air cleaner inlet duct by pulling upward to release the inlet duct from the rubber grommets and rotate to remove from cleaner assembly.
