Left Rear Door Components

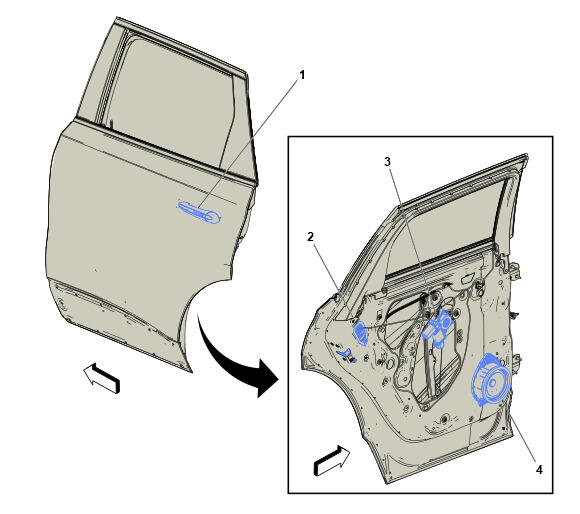

GM5879607Courtesy of GENERAL MOTORS COMPANY
Left Rear Door Components

Component Name Callout
B27LR Door Handle Switch - Left Rear Exterior 1
A23LR Door Latch Assembly - Left Rear A23LR Door Latch Assembly - Left Rear 2
M74LR Window Motor - Left Rear M74LR Window Motor - Left Rear 3
P19AL Speaker - Left Rear Door (UQA/UQF) P19AL Speaker - Left Rear Door (UQA) , or P19AL Speaker - Left Rear Door (UQA) 4
