Installation Procedure
- Connect the heated steering wheel module electrical connectors, if equipped.
- Steering Wheel Shroud (1) » Install

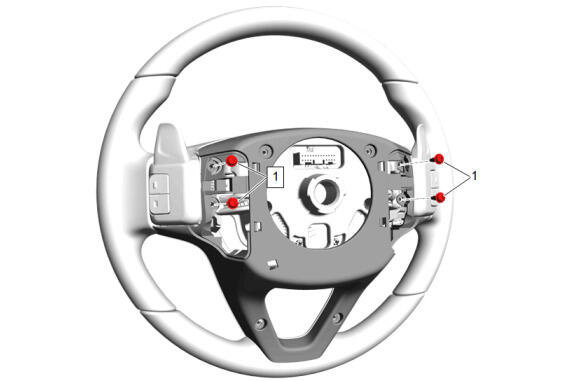

- Steering Wheel Bolt (1) @ Automatic Transmission Manual Shift Auxiliary Position Switch » Install and tighten [4x] 3.5 N.m (31 lb in).
- Steering Wheel Spoke Cover Bolt (1) » Install and tighten [2x] 1.1 N.m (10 lb in).
- Steering Wheel Bolt (2) @ Steering Wheel Shroud » Install and tighten [2x] 0.8 N.m (7 lb in).
- Steering Wheel (2) » Install - Steering Wheel Replacement
- Steering Wheel Airbag » Install - Steering Wheel Airbag Replacement
- Install the left and right steering wheel airbag access hole covers (1). Steering Wheel Airbag Access Hole Cover Replacement
Caution :Fastener Caution .
