Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

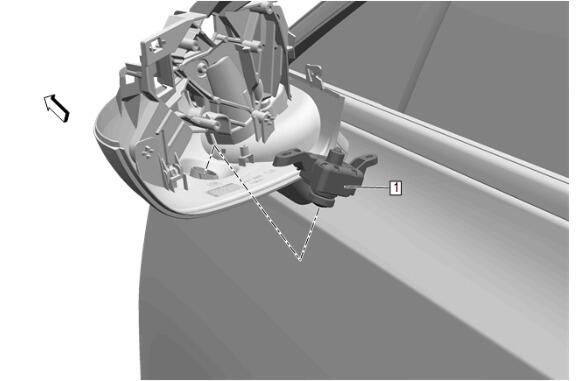

Install the side view driver information camera and the bracket (1) together.

Courtesy of GENERAL MOTORS COMPANY

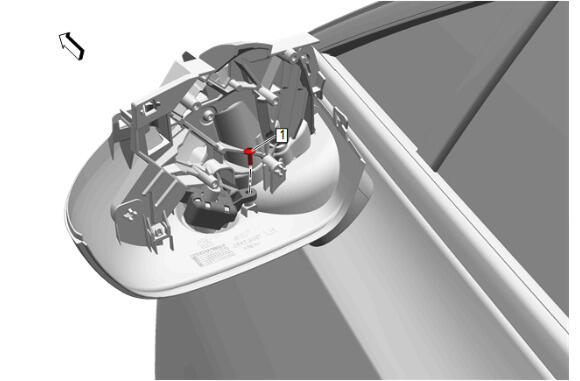

Side View Driver Information Camera Bolt (1) - Install and tighten 0.8 N.m (7 lb in)

Courtesy of GENERAL MOTORS COMPANY

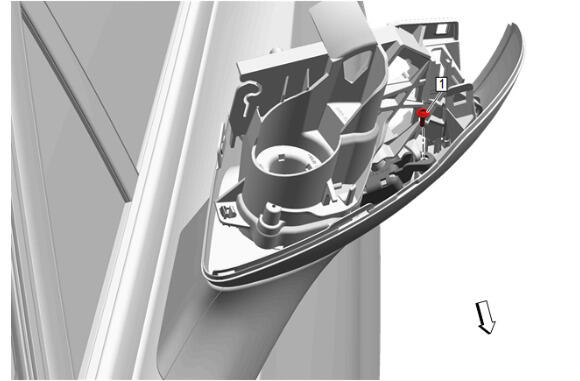

Side View Driver Information Camera Bolt (1) - Install and tighten 0.8 N.m (7 lb in)

Courtesy of GENERAL MOTORS COMPANY

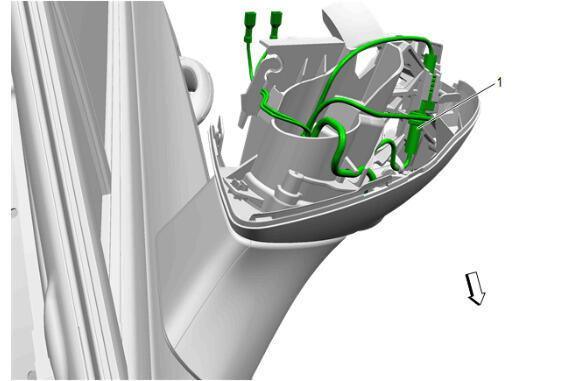

Side View Driver Information Camera Harness Connector (1) - Connect

Courtesy of GENERAL MOTORS COMPANY

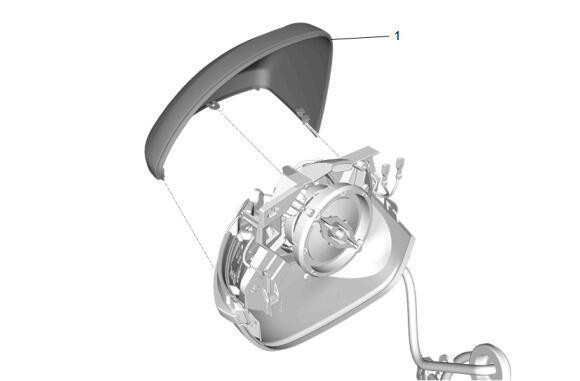

Outside Rearview Mirror Housing Upper Cover (1) - Install - Outside Rearview Mirror Housing Upper Cover Replacement

Courtesy of GENERAL MOTORS COMPANY

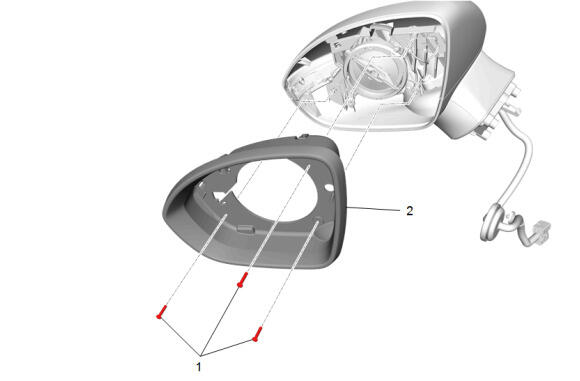

Outside Rearview Mirror Housing Bezel (2) - Install - Outside Rearview Mirror Housing Bezel Replacement

Courtesy of GENERAL MOTORS COMPANY

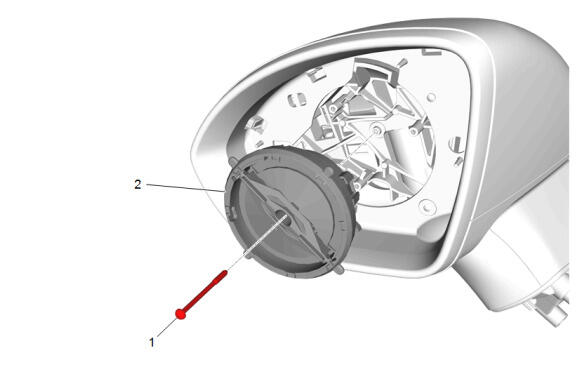

Outside Rearview Mirror Inner Actuator (2) - Install - Outside Rearview Mirror Actuator Replacement

Courtesy of GENERAL MOTORS COMPANY

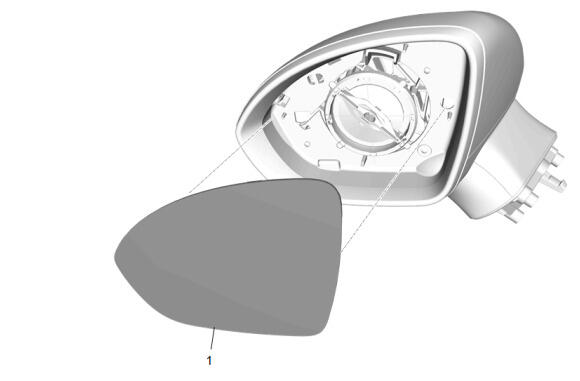

Outside Rearview Mirror Glass (1) - Install - Outside Rearview Mirror Glass Replacement
