Air Cleaner Outlet Duct Replacement

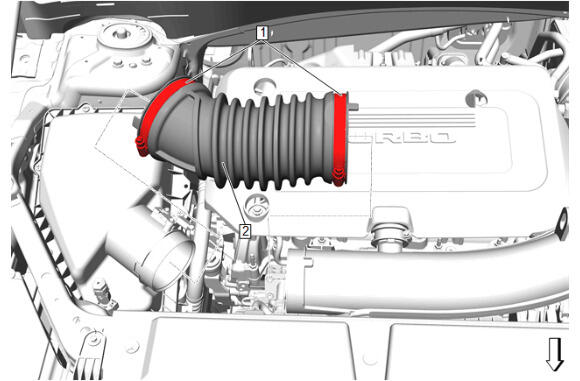

GM5579598Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Air Cleaner Outlet Duct Clamp [2x]
CAUTION:

Fastener Caution


Tighten
4 N.m (35 lb in)
2 Air Cleaner Outlet Duct
