Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

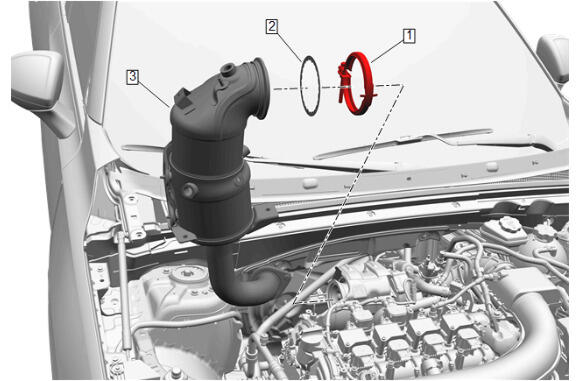

Catalytic Converter Gasket (2) - Install NEW
Install a NEW exhaust pipe clamp (1) but do not tighten.
Warm Up Three-Way Catalytic Converter (3) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

NOTE:
Use hand tools only when tightening the exhaust pipe clamp.

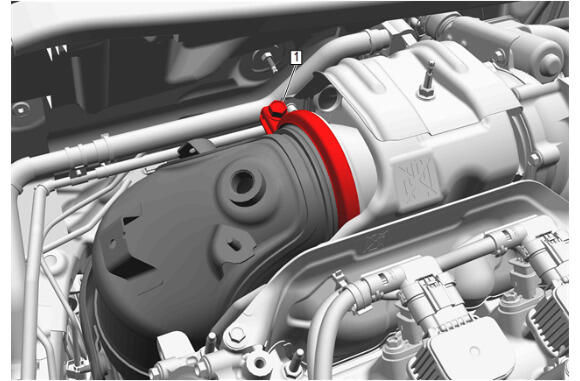

Exhaust Pipe Clamp (1) - Tighten 15 N.m (11 lb ft)
Courtesy of GENERAL MOTORS COMPANY

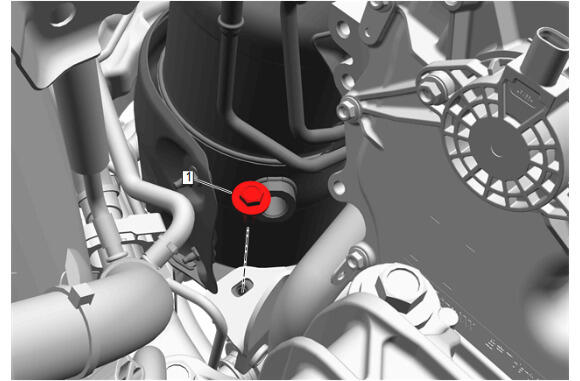

Warm Up Three-Way Catalytic Converter Bolt (1) - Install and tighten 22 N.m (16 lb ft)
Raise the vehicle.
Courtesy of GENERAL MOTORS COMPANY

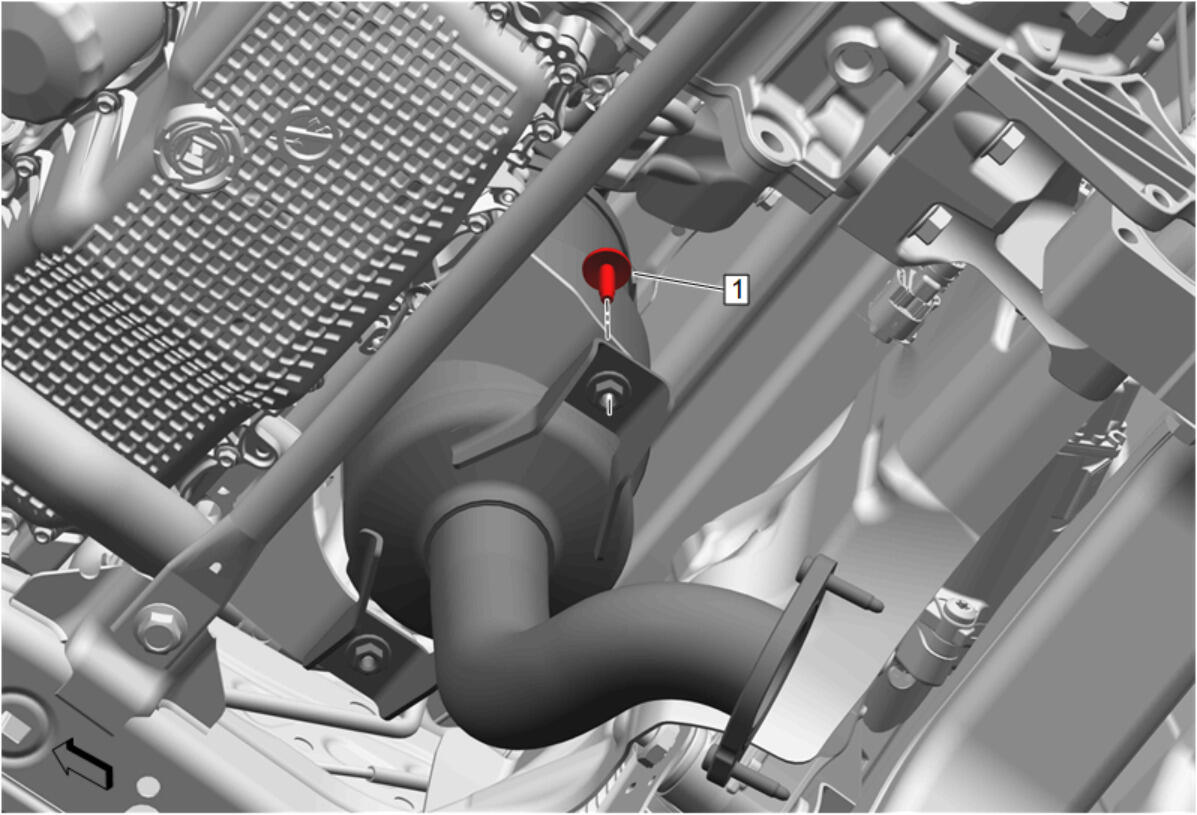

Warm Up Three-Way Catalytic Converter Bolt (1) - Install and tighten 22 N.m (16 lb ft)
Courtesy of GENERAL MOTORS COMPANY

Steering Gear Heat Shield (1) - Install
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

Steering Gear Heat Shield Bolt (1) - Install and tighten [3x] 9 N.m (80 lb in)
Courtesy of GENERAL MOTORS COMPANY

Exhaust Front Pipe (1) - Install - Exhaust Front Pipe Replacement (FWD) , or Exhaust Front Pipe Replacement (AWD)
Courtesy of GENERAL MOTORS COMPANY

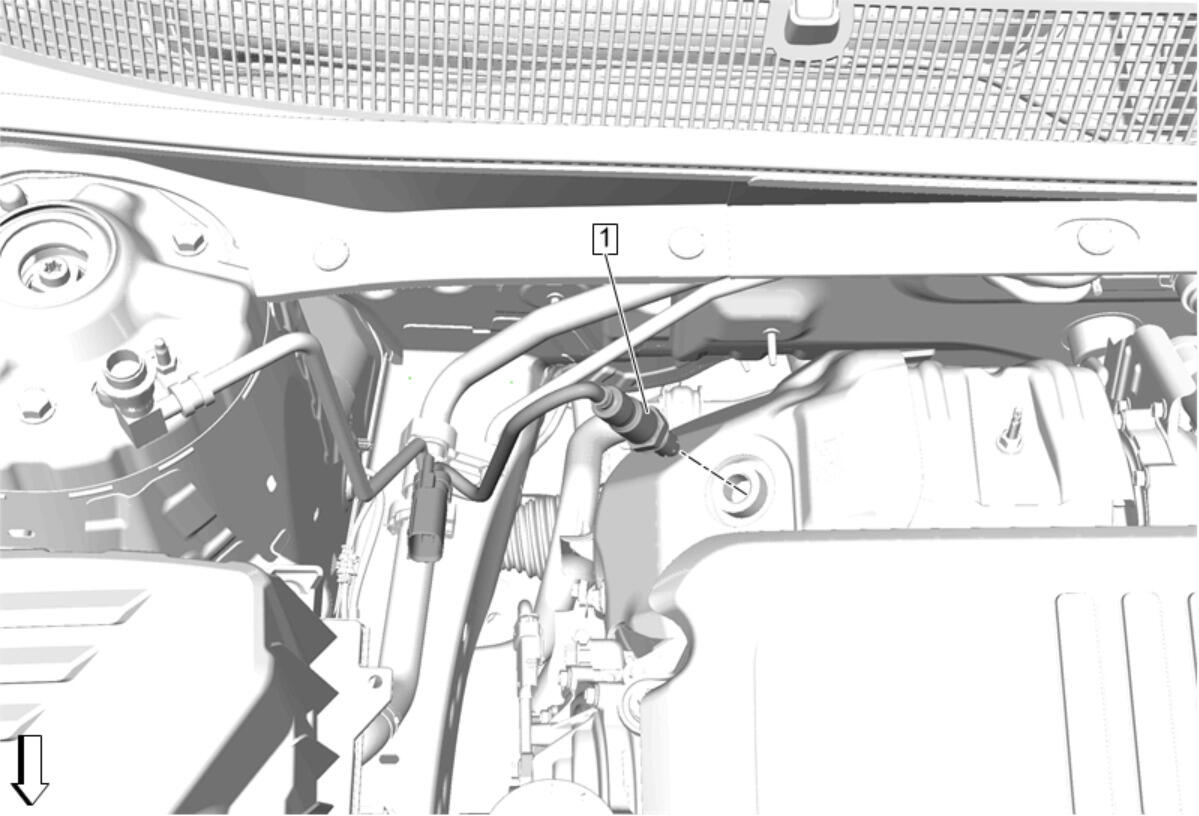

Heated Oxygen Sensor - Sensor 2 (1) - Install - Heated Oxygen Sensor Replacement - Sensor 2
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Use hand tools only to tighten the catalytic converter clamp.

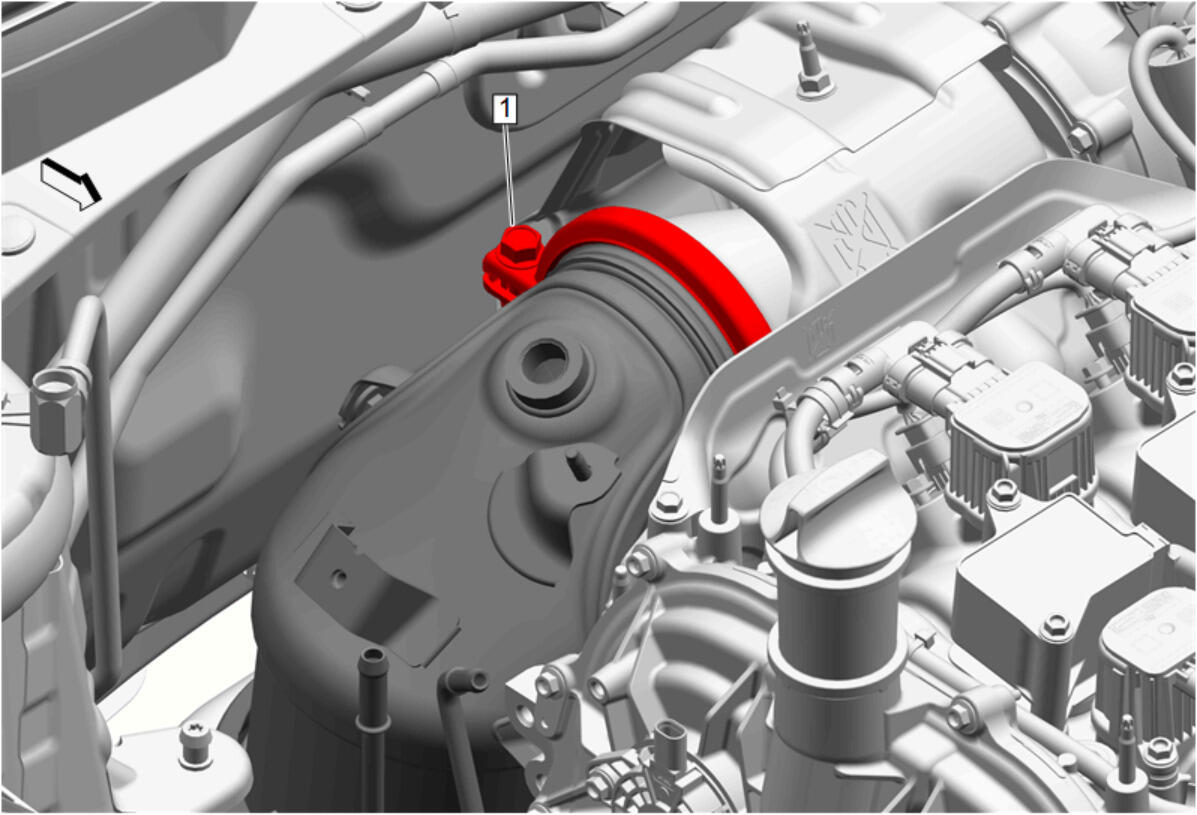

Exhaust Pipe Clamp (1) - Tighten 15 N.m (11 lb ft)
Courtesy of GENERAL MOTORS COMPANY

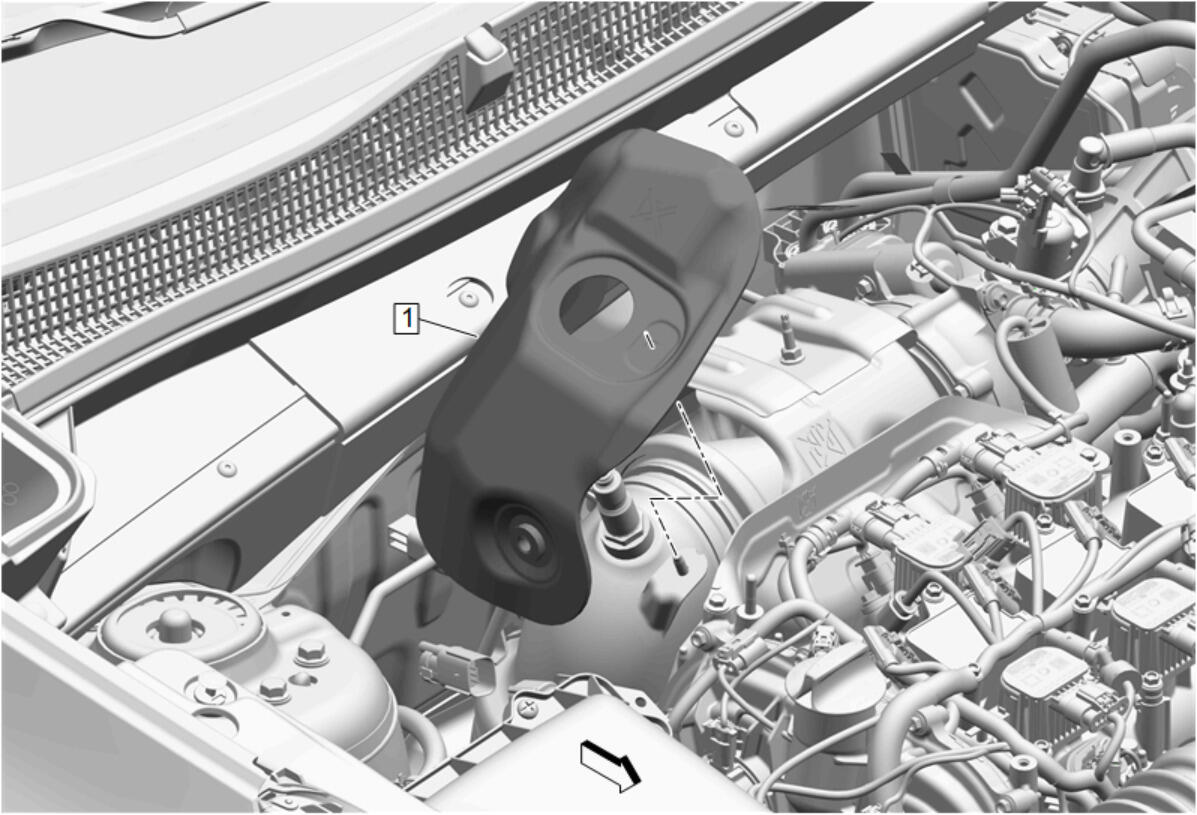

Catalytic Converter Heat Shield (1) - Install - Catalytic Converter Heat Shield Replacement - Upper
Courtesy of GENERAL MOTORS COMPANY

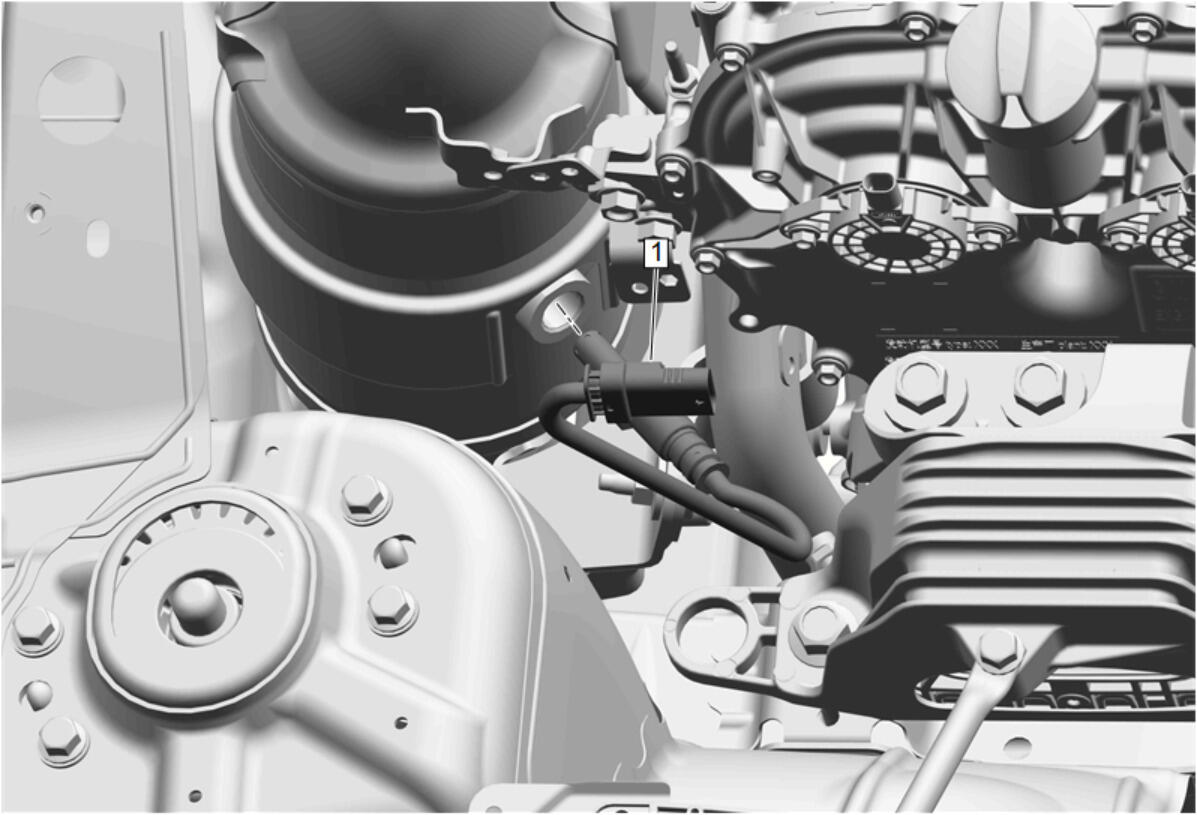

Heated Oxygen Sensor - Sensor 1 (1) - Install - Heated Oxygen Sensor Replacement - Sensor 1
Courtesy of GENERAL MOTORS COMPANY

Air Cleaner Assembly - Install - Air Cleaner Assembly Replacement
Courtesy of GENERAL MOTORS COMPANY

Air Cleaner Outlet Resonator (1) - Install - Air Cleaner Outlet Resonator Replacement
Inspect the exhaust system for leaks.
