Electronic Suspension Front Position Sensor Link Ball Stud Replacement: Installation

Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Component Fastener Tightening Caution .

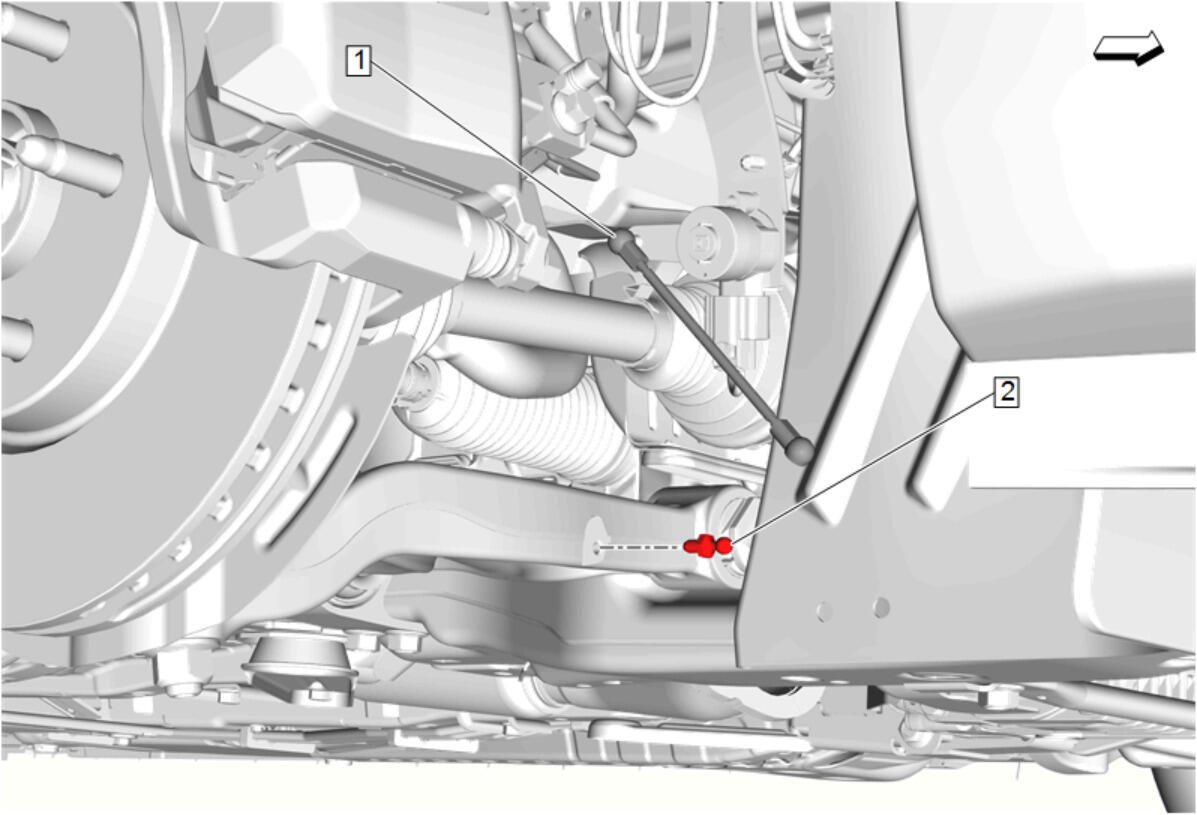

Electronic Suspension Front Position Sensor Link Ball Stud (2) - Install and tighten 9 N.m (80 lb in)
Connect the electronic suspension front position sensor link (1) to the electronic suspension front position sensor link ball stud (2).
Install the front tire and wheel assembly. Tire and Wheel Removal and Installation
Remove the support and lower the vehicle.
