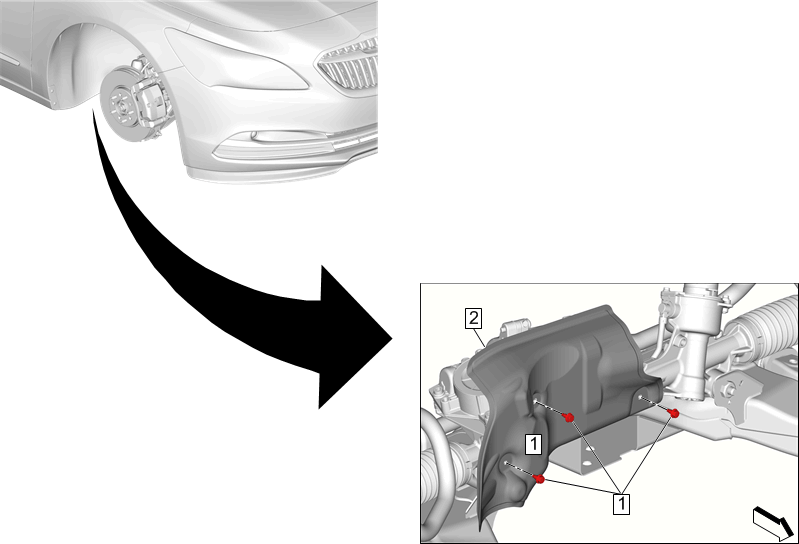

Steering Gear Heat Shield Replacement
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
1
Steering Gear Heat Shield Bolt [3x]
CAUTION:
Fastener Caution
Tighten
9 N. m (80 lb in)
2
Steering Gear Heat Shield
