Exhaust Pipe Front Hanger Bracket Replacement

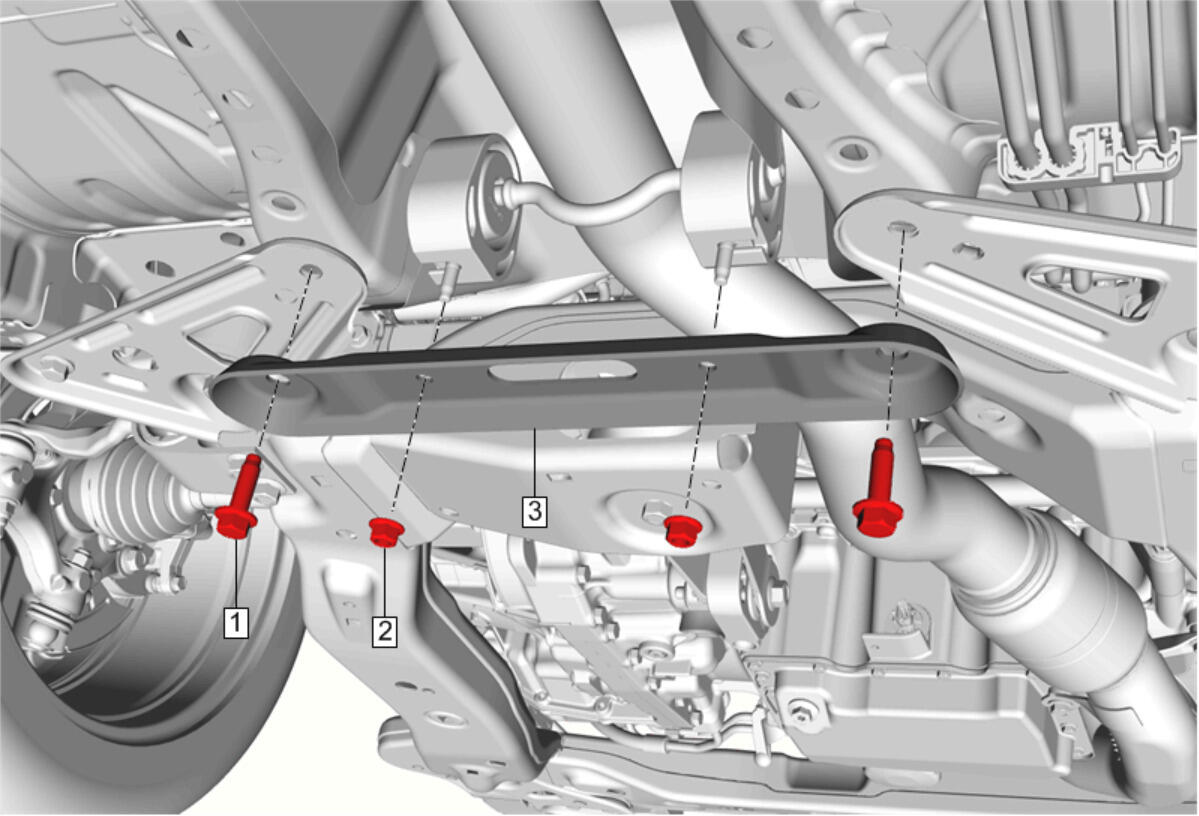

| Callout | Component Name |
|---|---|
| Preliminary Procedure Lifting and Jacking the Vehicle |
|
| 1 | Exhaust Pipe Front Hanger Bracket Bolt [2x]
CAUTION:
Refer to Fastener Caution . Tighten 58 N.m (43 lb ft) |
| 2 | Exhaust Pipe Front Hanger Bracket Nut [2x]
CAUTION:
Refer to Fastener Caution . Tighten 22 N.m (16 lb ft) |
| 3 | Exhaust Pipe Front Hanger Bracket |
