Installation Procedure

WARNING: This page is about a different car, the 2018 Buick Regal TourX and 2018 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

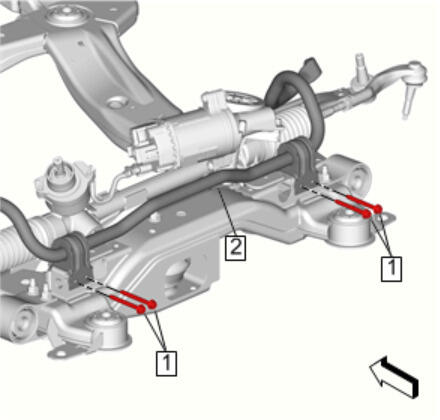

  1. GM4217716Courtesy of GENERAL MOTORS COMPANY

    Front Stabilizer Shaft(1)@Drivetrain and Front Suspension Cradle - - Install

  2. Front Stabilizer Shaft Insulator Clamp Bolt(1) - Install and tighten[4x] 22 N.m (16 lb ft)

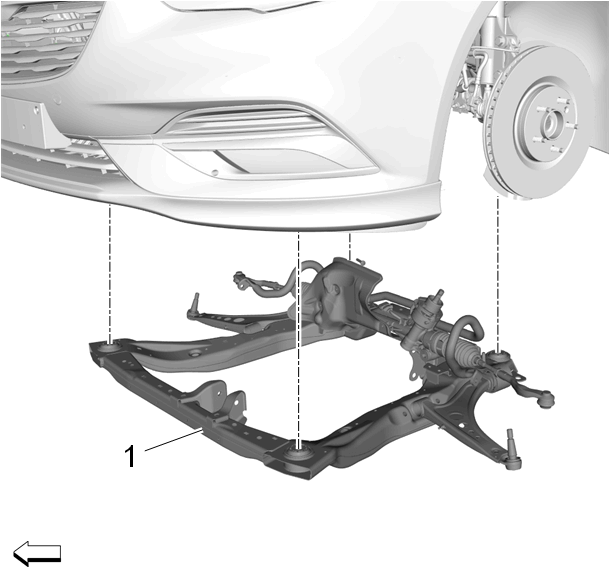

  3. GM4725815Courtesy of GENERAL MOTORS COMPANY

    Drivetrain and Front Suspension Cradle(1) - Install - Drivetrain and Front Suspension Cradle Replacement (LGX)Drivetrain and Front Suspension Cradle Replacement (LTG)
