Installation Procedure
With the aid of an assistant, load the instrument panel (1) to the instrument panel tie bar to the locator pins.
- Reposition the instrument panel wiring harness into the vehicle position as was noted in the removal and connect the fasteners securing the instrument panel wiring harness to the instrument carrier.
- CAUTION:
Instrument Panel Bolt (1) - Install and tighten [14x] 2.5 N.m (22 lb in)
Instrument Panel Airbag Bolt (1) - Install and tighten [3x] 9 N.m (80 lb in)
- Connect the electrical connector:
Heater and Air Conditioning User Interface Control (2) - Install - Heater and Air Conditioning User Interface Control Replacement
Steering Column Nut (1) - Install - Steering Column Replacement .
Floor Front Air Outlet Duct - Left Side (2) - Install - FLOOR FRONT AIR OUTLET DUCT REPLACEMENT -LEFT SIDE
Radio Front Center Speaker (2) - Install - Radio Front Center Speaker Replacement
Radio Front Speaker Grille (1) - Install - Radio Front Speaker Grille Replacement
{If equipped} Forward Collision Alert Display Bezel (1) - Install - Forward Collision Alert Display Bezel Replacement
{If equipped} Human Machine Interface Control Module (1) - Install - Human Machine Interface Control Module Replacement
Instrument Cluster (2) - Install - Instrument Cluster Replacement
Data Link Connector (1) - Install
- Data Link Connector Bolt (2) - Install and tighten [2x] 2.5 N.m (22 lb in).
Instrument Panel Fuse Block Access Hole Cover (2) - Install - Instrument Panel Fuse Block Access Hole Cover Replacement
Hood Primary Latch Release Cable Handle (1) - Install - Hood Primary Latch Release Cable Replacement
Headlamp Switch (1) - Install - Headlamp Switch Replacement

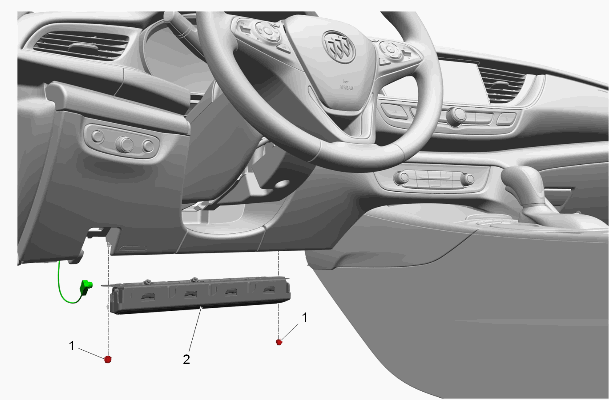

Instrument Panel Lower Airbag - Driver Side (2) - Install Instrument Panel Lower Airbag Replacement - Driver Side
Instrument Panel Knee Bolster (2) - Install - Instrument Panel Knee Bolster Replacement
Front Floor Console (4) - Install - Front Floor Console Replacement
Instrument Panel Lower Center Trim Panel (1) - Install - Instrument Panel Lower Center Trim Panel Replacement
Instrument Panel Lower Trim Panel (2) - Install - Instrument Panel Lower Trim Panel Replacement
Front Floor Console Trim Plate (2) - Install - Front Floor Console Trim Plate Replacement
Steering Column Upper Trim Cover (2) - Install - Steering Column Upper Trim Cover Replacement
Heater and Air Conditioning Remote Control (1) - Install - Heater and Air Conditioning Remote Control Replacement
Radio Control Assembly (3) - Install - Radio Control Assembly Replacement (IOB)Radio Control Assembly Replacement (IO5, IO6)
{If equipped} Instrument Panel Trim Plate (2) - Install - Instrument Panel Trim Plate Replacement
Instrument Panel Center Air Outlet - Left Side (1) - Install - Instrument Panel Center Air Outlet Replacement - Left Side
Instrument Panel Center Air Outlet - Right Side (1) - Install - Instrument Panel Center Air Outlet Replacement - Right Side
Install the instrument panel center air outlet bezel (1). Instrument Panel Center Air Outlet Bezel Replacement
Instrument Panel Center Trim Plate Applique (2) - Install - Instrument Panel Center Trim Plate Applique Replacement
Instrument Panel Outer Air Outlet - Left Side (1) - Install - Instrument Panel Outer Air Outlet Replacement - Left Side
Instrument Panel Outer Air Outlet - Right Side (1) - Install - Instrument Panel Outer Air Outlet Replacement - Right Side
Radio (1) - Install - Radio Replacement (IOS)Radio Replacement (IOT)
Instrument Panel Compartment (3) - Install - Instrument Panel Compartment Replacement

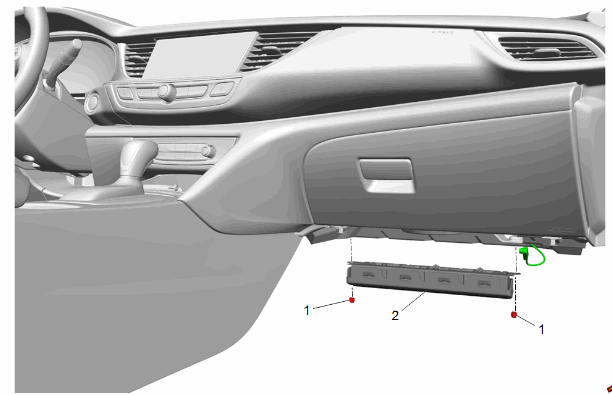

Instrument Panel Lower Airbag - Passenger Side (2) - Install Instrument Panel Lower Airbag Replacement - Passenger Side
Instrument Panel Outer Trim Cover (1, 2) - Install - Instrument Panel Outer Trim Cover Replacement
Windshield Garnish Molding (3) - Install [2x] - Windshield Garnish Molding Replacement
- Enable the SIR System. SIR Disabling and Enabling
