Front Fog Lamp Replacement

WARNING: This page is about a different car, the 2018 Buick Regal TourX and 2018 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

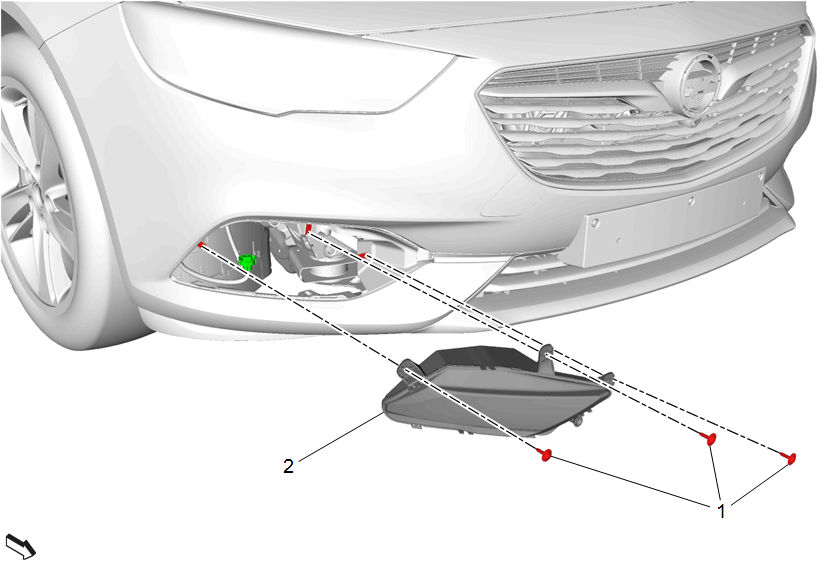

Callout	Component Name
Preliminary Procedure Front Fog Lamp Bezel Replacement (Base)Front Fog Lamp Bezel Replacement (YWC)
1	Front Fog Lamp Bolt [3x] CAUTION: Fastener Caution Tighten 2.5 N.m (22 lb in)
2	Front Fog Lamp Procedure Disconnect the electrical connector. Replace bulbs as necessary.

Callout

Component Name

Preliminary Procedure
Front Fog Lamp Bezel Replacement (Base)Front Fog Lamp Bezel Replacement (YWC)

Front Fog Lamp Bolt [3x]

CAUTION:

Fastener Caution

Tighten
2.5 N.m (22 lb in)

Front Fog Lamp

Procedure

Disconnect the electrical connector.
Replace bulbs as necessary.
