Front Compartment Splash Shield Replacement
WARNING: This page is about a different car, the 2020 Buick Regal TourX, 2020 Buick Regal, 2019 Buick Regal TourX, and 2019 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

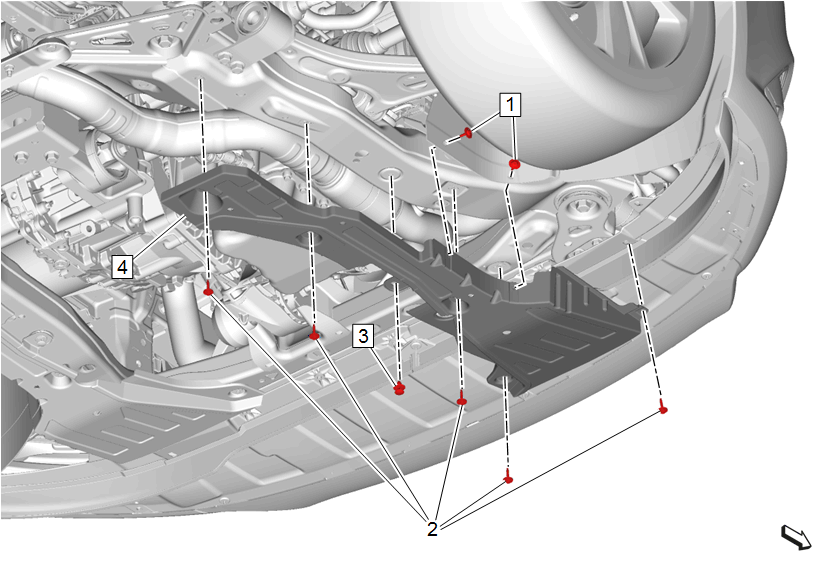

| Callout | Component Name |
|---|---|
| Preliminary Procedure Lifting and Jacking the Vehicle |
|
| 1 | Front Wheelhouse Liner Bolt [2x]
CAUTION:
Tighten 2.5 N.m (22 lb in) |
| 2 | Front Compartment Splash Shield Bolt [5x] Tighten 2.5 N.m (22 lb in) |
| 3 | Front Compartment Splash Shield Retainer |
| 4 | Front Compartment Splash Shield |
