Air Cleaner Assembly Replacement (2H0)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disconnect the mass airflow sensor electrical connector. Remove the air cleaner inlet duct. Refer to Air Cleaner Inlet Duct Replacement (2H0) . Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement (2H0) .

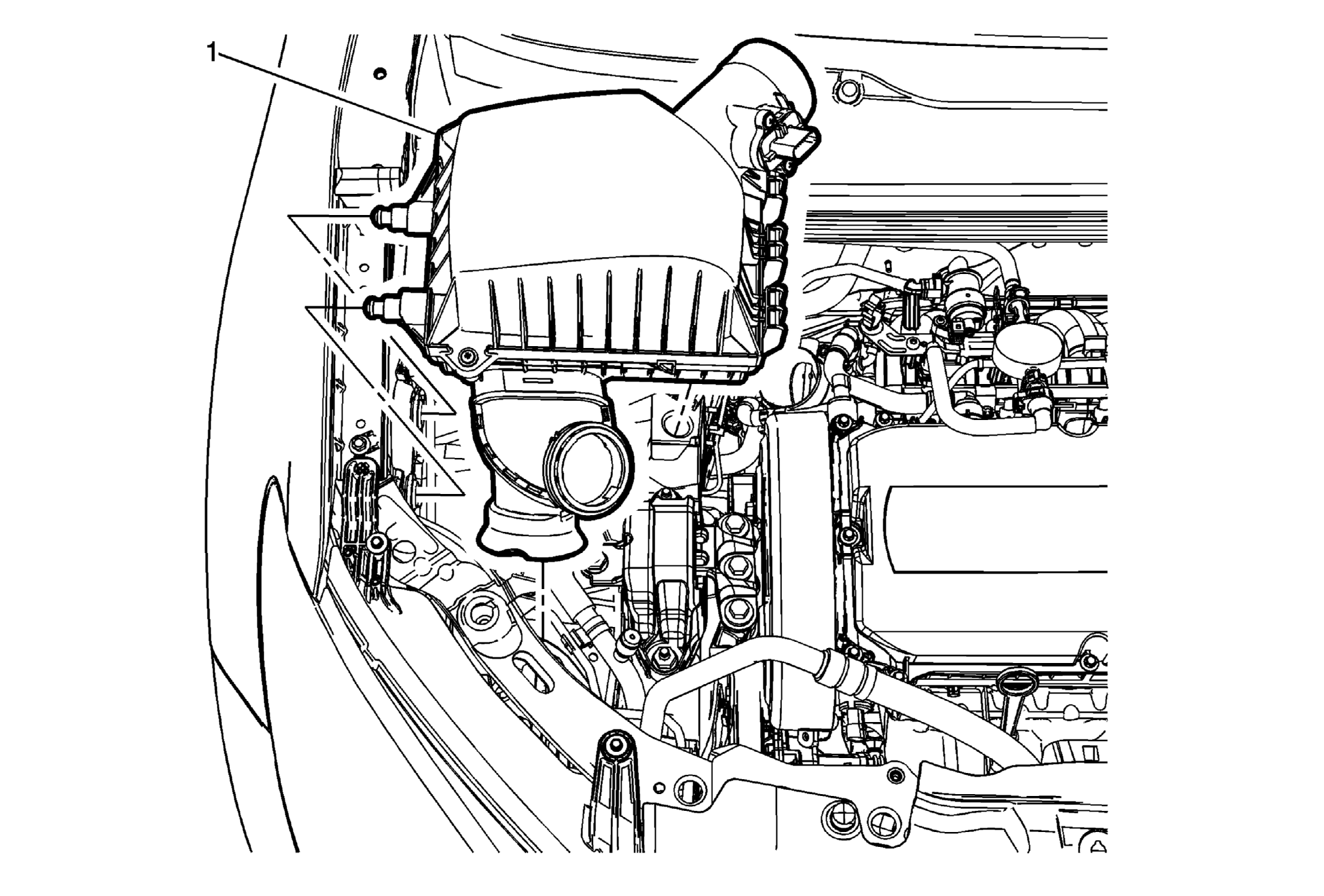

1	Air Cleaner Assembly Procedure Remove the air cleaner assembly by pulling upward to release the assembly from the lower rubber grommets and then pulling outward from the fender.

Callout

Component Name

Preliminary Procedures

Disconnect the mass airflow sensor electrical connector.
Remove the air cleaner inlet duct. Refer to Air Cleaner Inlet Duct Replacement (2H0) .
Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement (2H0) .

Air Cleaner Assembly
Procedure
Remove the air cleaner assembly by pulling upward to release the assembly from the lower rubber grommets and then pulling outward from the fender.
