Keyless Entry - Passive and Keyless Start (BTM)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

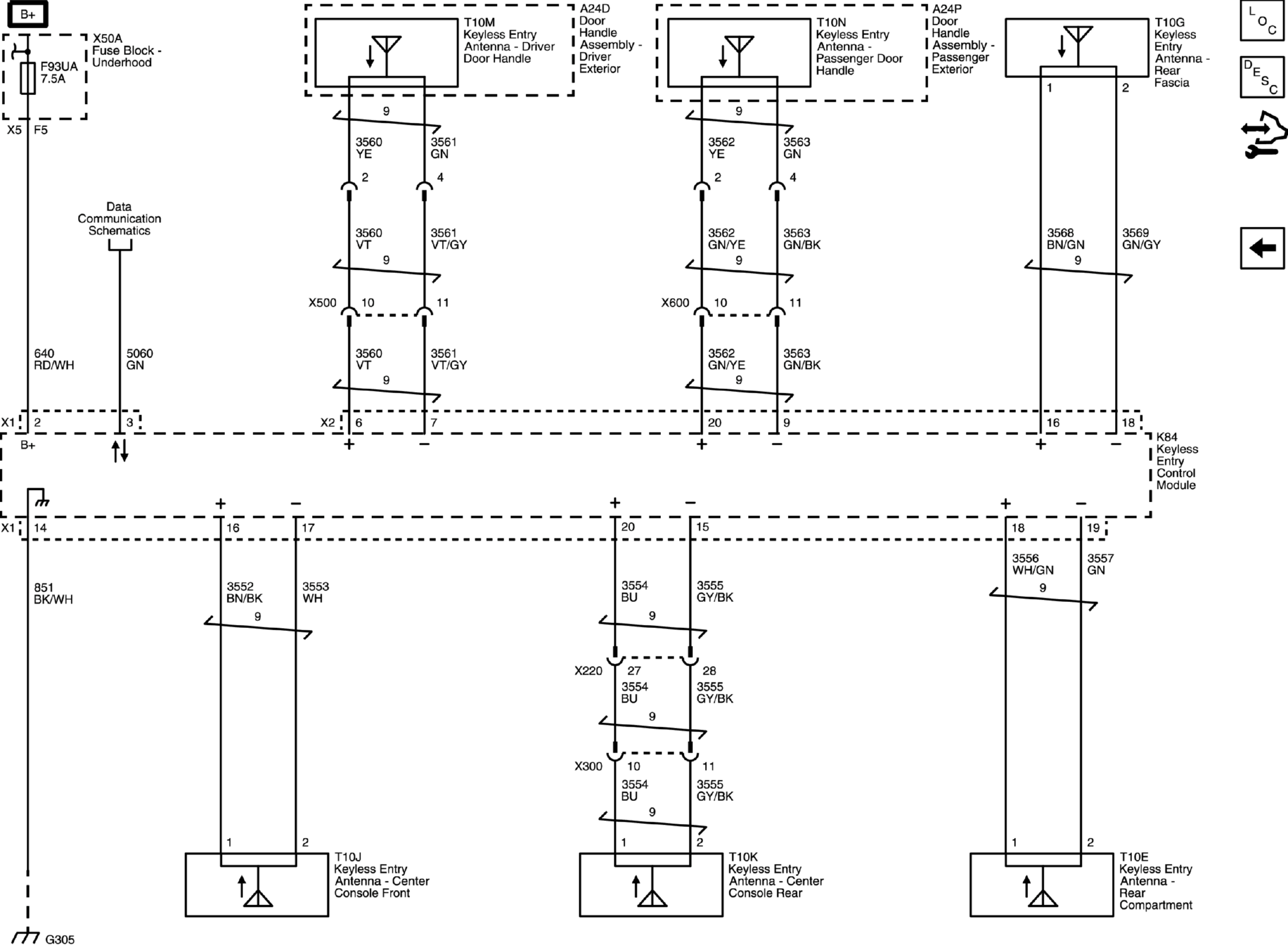

Keyless Entry - Passive and Keyless Start (BTM)
Courtesy of GENERAL MOTORS COMPANY
