Installation Procedure
WARNING: This page is about a different car, the 2018 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
Front Brake Caliper (1) - Install

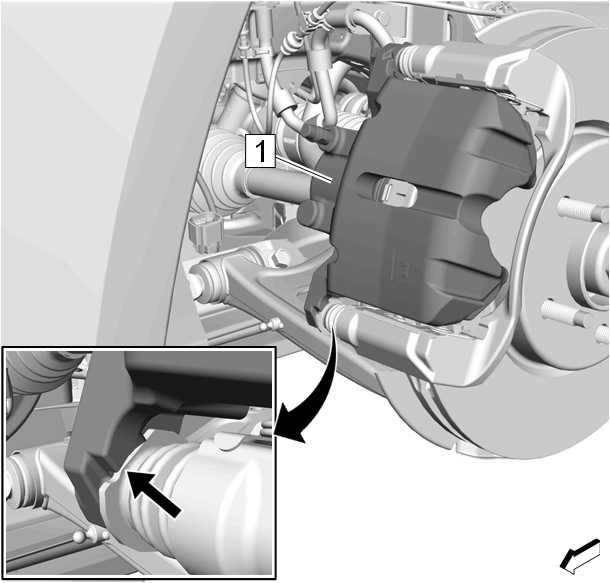

Ensure the 2 front brake caliper guides seat (arrow) correctly in the brake caliper.
- CAUTION:

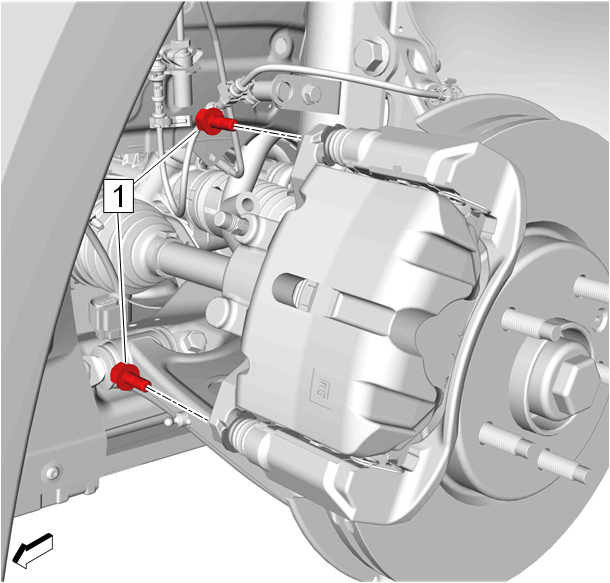

Brake Caliper Guide Pin Bolt(1) - Install and tighten 47 N.m (35 lb ft) [2x]

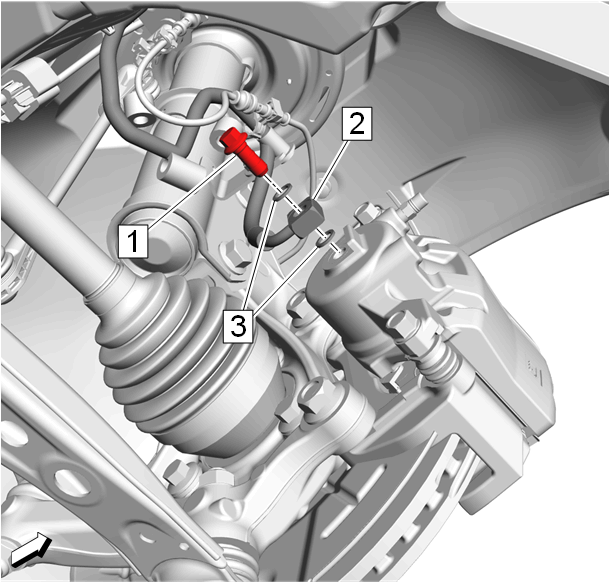

Remove the cap from the brake hose fitting.
- Front Brake Hose Washer(3) - Install[2x] - Use NEW seals.
- Front Brake Hose(2) - Install
- Brake Hose Fitting Bolt (1) - Install and tighten 40 N.m (30 lb ft)
- Bleed the brake system. Hydraulic Brake System Bleeding (Pressure)Hydraulic Brake System Bleeding (Manual)
- With the engine OFF, gradually apply the brake pedal to approximately 2/3 of its travel distance.
- Slowly release the brake pedal.
- Repeat steps (9 – 10)until a firm brake pedal is obtained.
This will properly seat the brake caliper pistons and brake pads.
- Fill the brake master cylinder reservoir to the maximum-full level with GM approved brake fluid from a clean, sealed brake fluid container. Brake Master Cylinder Reservoir Filling
- Install the front tire and wheel assembly. Tire and Wheel Removal and Installation
WARNING:
Make sure the brake hose is not twisted, tensioned or kinked after installation. With the suspension settled, check that there is no contact with the surrounding components when moving the steering from stop to stop. Failure to comply could result in damage to the brake hose and lead to severe or fatal injuries.
