Front Side Door Outside Handle Replacement (With Keyless Entry)

Courtesy of GENERAL MOTORS COMPANY

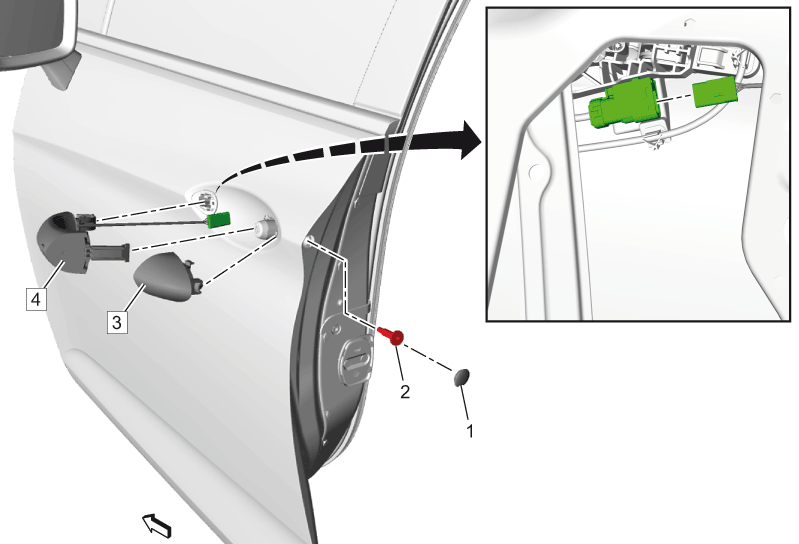

Callout	Component Name
Preliminary Procedure Front Side Door Water Deflector Replacement
1	Bolt Access Plug Procedure Use a flat bladed plastic tool to remove.
2	Front Side Door Outside Handle Bolt CAUTION: Refer to Fastener Caution . Procedure Loosen the front side door outside handle bolt until the front side door outside handle cap could be removed. The handle must be pulled rearward while the handle is loosened. Tighten 4.7 N.m (42 lb in)
3	Front Side Door Lock Cylinder Opening Cover
4	Front Door Outside Handle Procedure Pull the outside handle rearward to release it from the handle housing. Disconnect the electrical connector.
