Installation Procedure

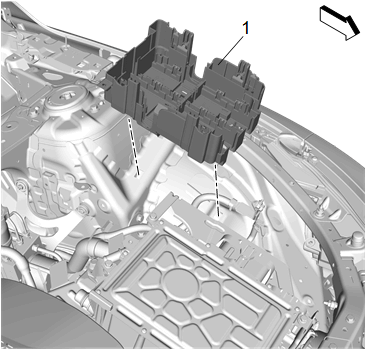

  1. GM5023170Courtesy of GENERAL MOTORS COMPANY

    Engine Wiring Harness Fuse Block Bracket (1) - Install

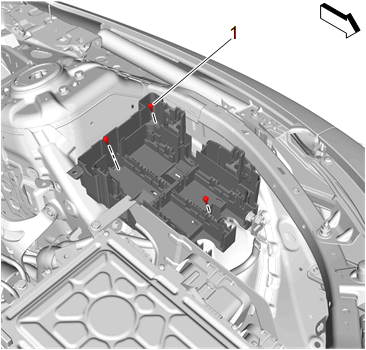

  2. GM5023168Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution

    Engine Wiring Harness Fuse Block Bracket Bolt (1) - Install and tighten [3x] 9 N.m (80 lb in)

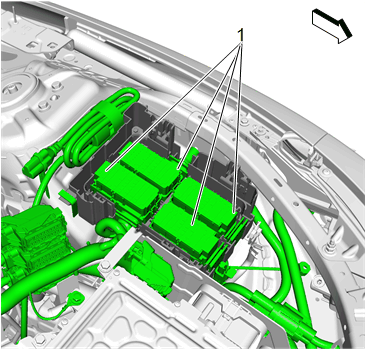

  3. GM5023167Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector (1) - Install [4x]

  4. Connect any harness retainers as necessary.

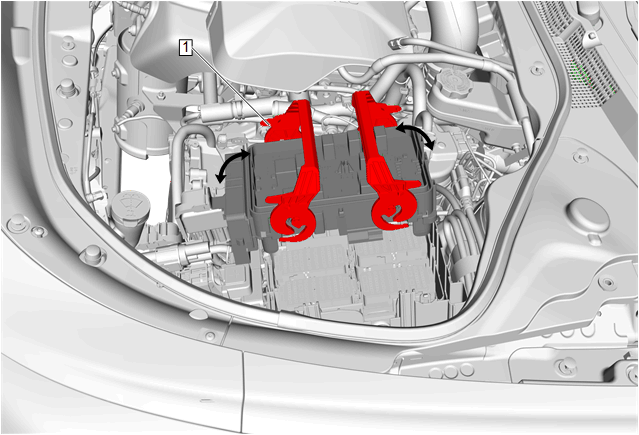

  5. GM5027326Courtesy of GENERAL MOTORS COMPANY

    Front Compartment Fuse Block (1) - Install - Front Compartment Fuse Block Replacement (LHN)
