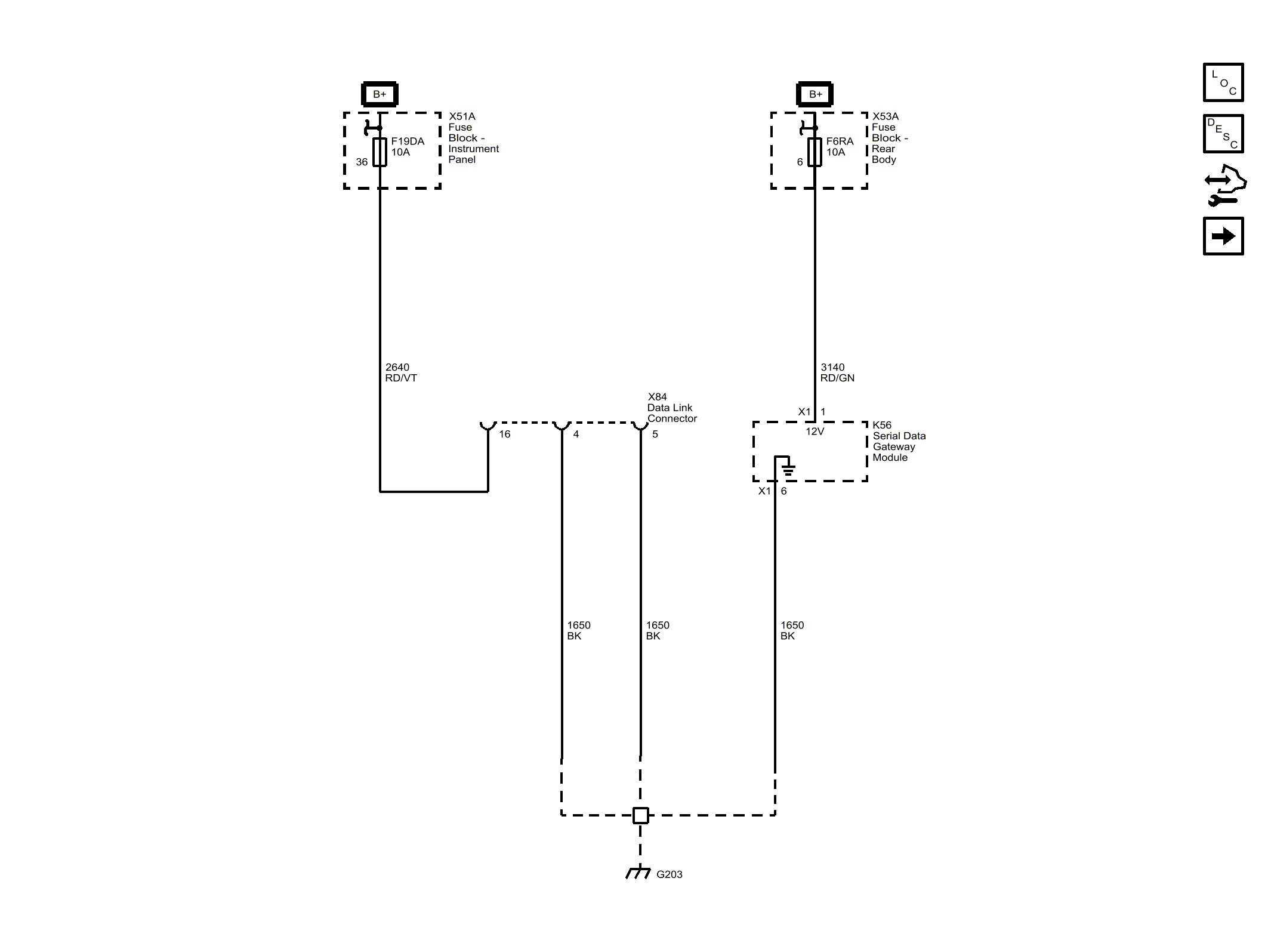

Serial Data Gateway Module and Data Link Connector Power and Ground

WARNING: This page is about a different car, the 2018 Buick Envision. However, it is still accessible from the selected car via links, so may be relevant.
GM4724814Courtesy of GENERAL MOTORS COMPANY
