Rear Combination Lamp Module Replacement (Buick with UGE)

WARNING: This page is about a different car, the 2018 Chevrolet Trax and 2018 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

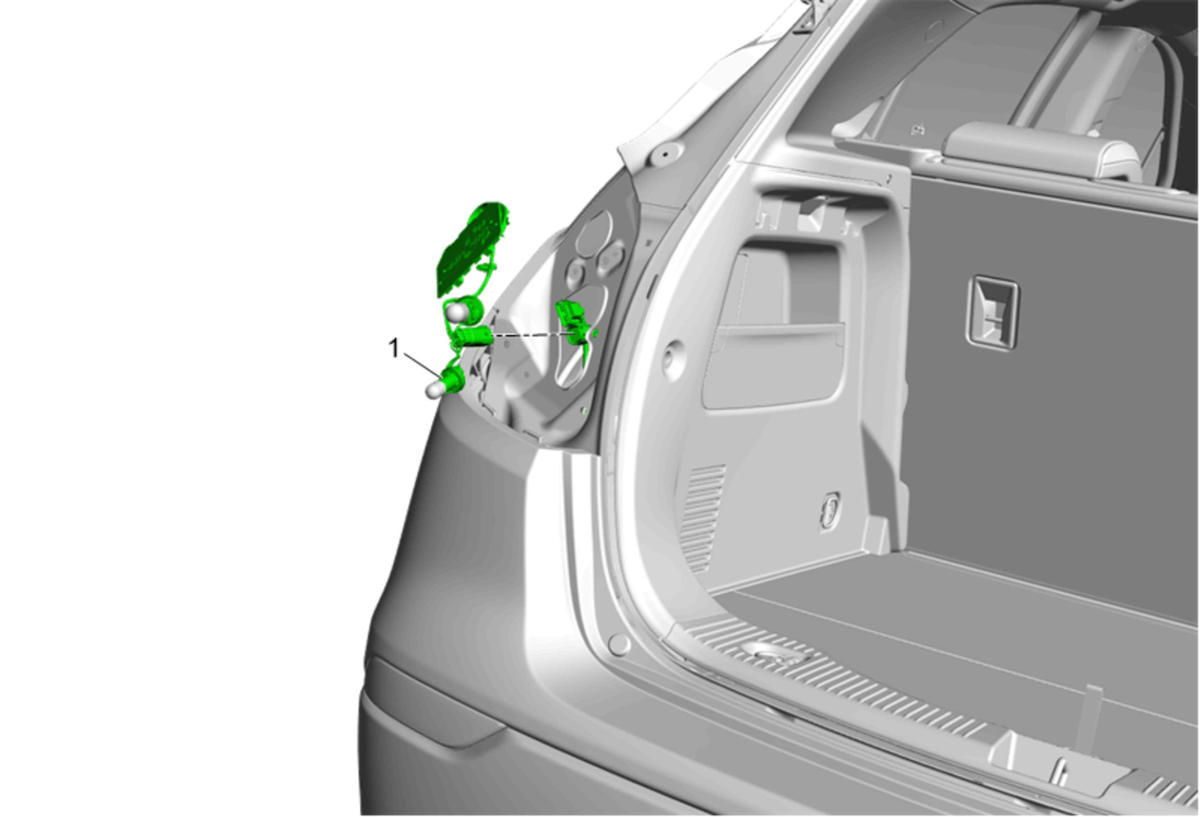

GM4527605
Callout Component Name
Preliminary Procedure
Rear Body Structure Stop Lamp Replacement (Buick with UGE)
1 Rear Combination Lamp Module

Procedure

  1. Pull the rear body structure stop lamp module rearward to remove.
  2. Disconnect the electrical connector.
  3. Transfer components as necessary.
