Windshield Wiper Transmission Replacement

WARNING: This page is about a different car, the 2018 Chevrolet Trax and 2018 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

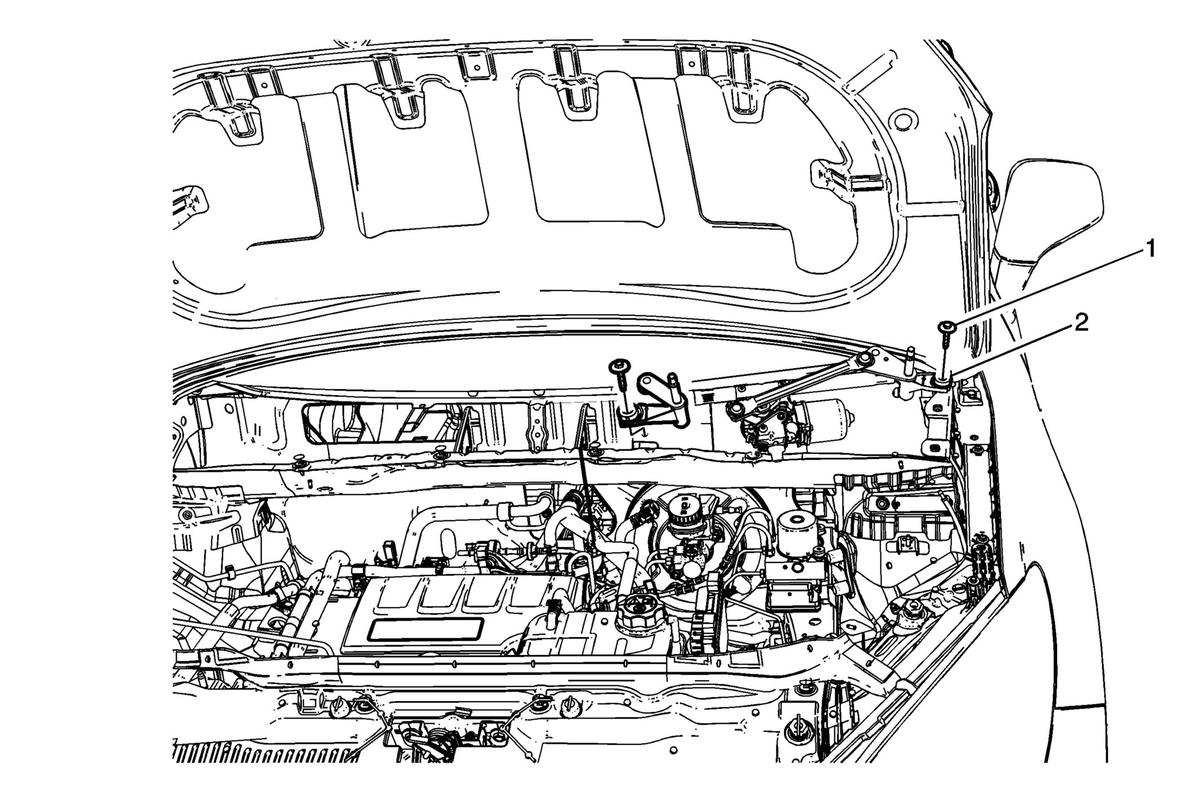

Callout	Component Name
Preliminary Procedures Open and support the hood assembly. Remove the air inlet grille panel. Refer to Air Inlet Grille Panel Replacement (Chevrolet) Air Inlet Grille Panel Replacement (Buick) .
1	Windshield Wiper Transmission Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Windshield Wiper Transmission Procedure Lift the windshield wiper transmission from the plenum brackets. Disconnect the electrical connector from the windshield wiper motor. Remove the windshield wiper transmission from the plenum.

Callout

Component Name

Preliminary Procedures

Open and support the hood assembly.
Remove the air inlet grille panel. Refer to Air Inlet Grille Panel Replacement (Chevrolet) Air Inlet Grille Panel Replacement (Buick) .

Windshield Wiper Transmission Bolt (Qty: 2)

CAUTION:

Refer to Fastener Caution .

Tighten
9 N.m (80 lb in)

Windshield Wiper Transmission

Procedure

Lift the windshield wiper transmission from the plenum brackets.
Disconnect the electrical connector from the windshield wiper motor.
Remove the windshield wiper transmission from the plenum.
