Intake Air Splash Shield Replacement

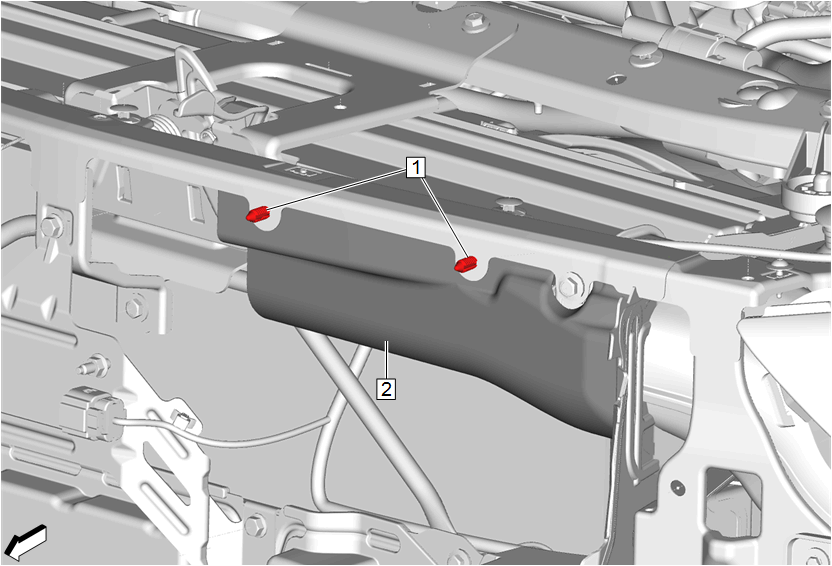

GM4808813Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Front Bumper Fascia - Remove - Front Bumper Fascia Replacement
1 Intake Air Splash Shield Retainer[2x]
2 Intake Air Splash Shield
Procedure
Front Bumper Fascia - Install - Front Bumper Fascia Replacement
