Installation Procedure

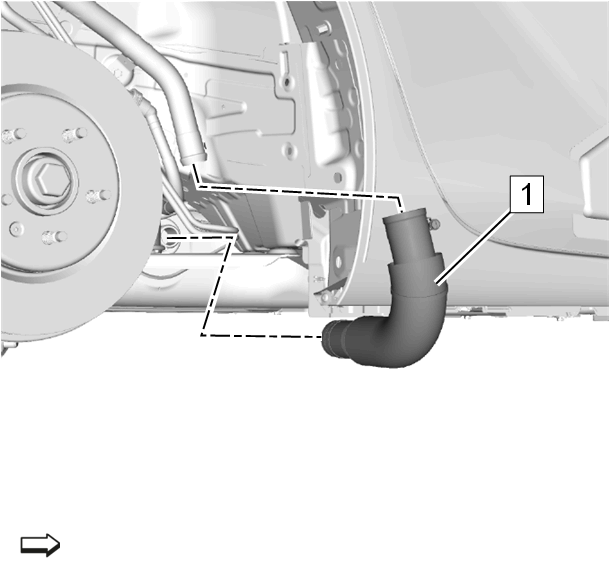

  1. GM4589323

    Fuel Tank Filler Hose (1) - Install

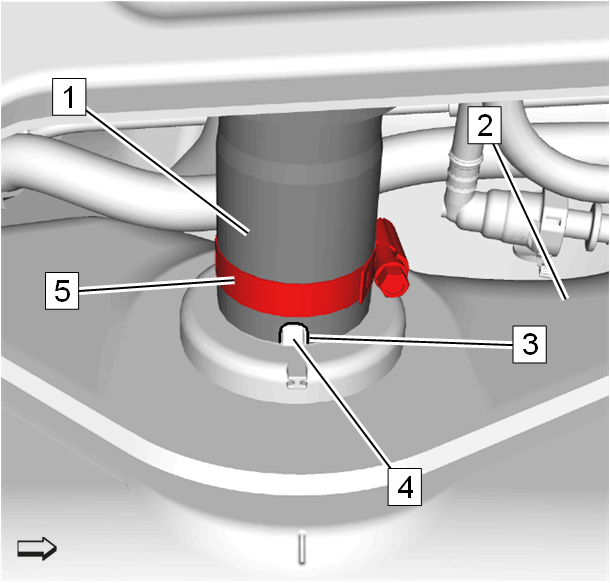

  2. GM4589322
    NOTE:

    The gap (3) must fit the guiding key (4).

    Fuel Tank Filler Hose (1)@Fuel Tank (2) - Connect

    3. CAUTION:

    Refer to Fastener Caution

  3. Fuel Tank Filler Hose Clamp (5) - Tighten3.5N.m (31 lb in)

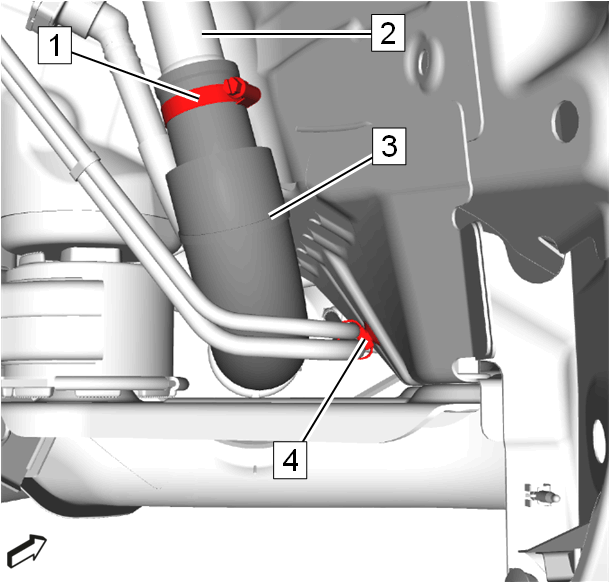

  4. GM4589321

    Fuel Tank Filler Hose (3)@Fuel Tank Filler Pipe (2) - Connect

  5. Fuel Tank Filler Hose Clamp (1) - Tighten3.5N.m (31 lb in)
  6. Clip (4) - Install
  7. Rear Wheelhouse Liner - Right Side - Install - Refer to Rear Wheelhouse Liner Replacement
  8. Lower the vehicle.
  9. Connect the battery negative cable - Refer to BATTERY NEGATIVE CABLE DISCONNECTION AND CONNECTION (2.0L LTG)
