Removal Procedure

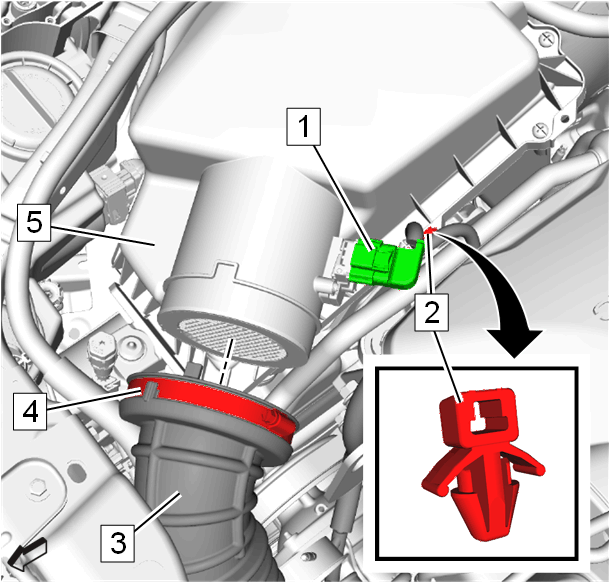

  1. GM4585105

    Disconnect the electrical connector. (1)

  2. Wiring Harness Clip (2) - Unclip
  3. Air Cleaner Outlet Duct Clamp (4) - Loosen
  4. Air Cleaner Outlet Duct (3)@Air Cleaner Upper Housing (5) - Disconnect

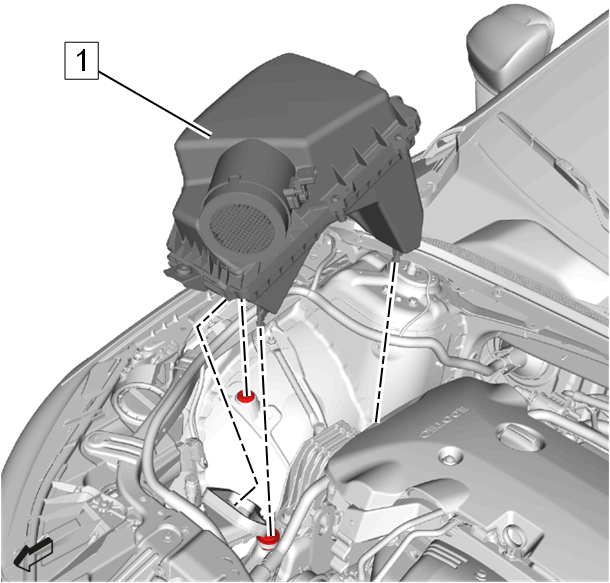

  5. GM4589332

    Air Cleaner Assembly (1) - Remove
