Rear Side Door Window Frame Front Applique Replacement

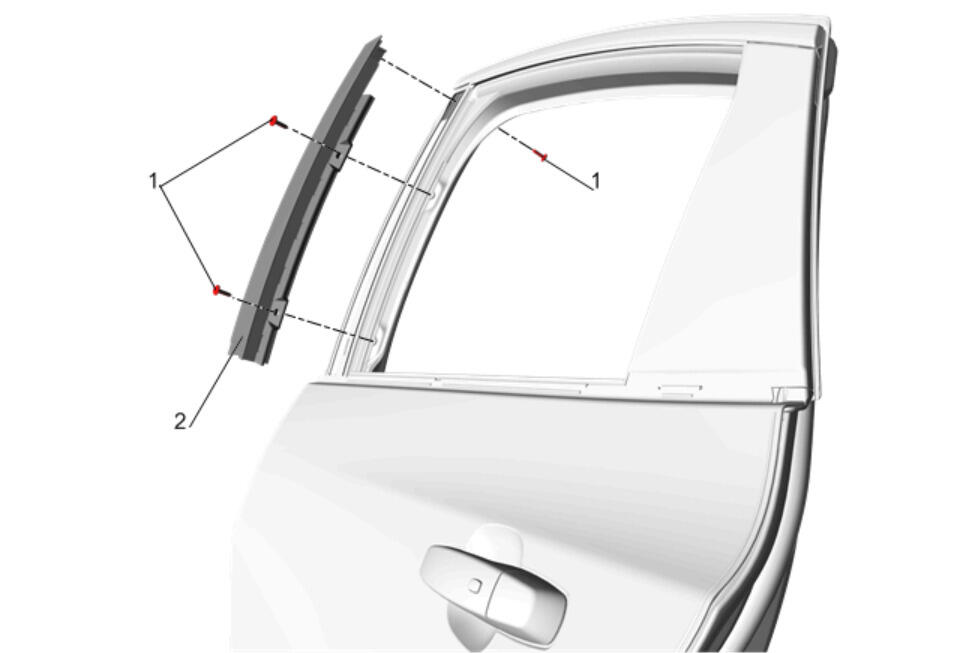

GM4213808Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Rear Side Door Window Belt Reveal Molding Replacement
1 Rear Side Door Window Frame Applique Screw [3x]
CAUTION:

Refer to Fastener Caution .


Procedure
Pull weatherstrip away from the applique to access the screws.
Tighten
2.5 N.m (22 lb in)
2 Rear Side Door Window Frame Front Applique
