Human Machine Interface Control and Info Display Modules Power, Ground and Serial Data
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

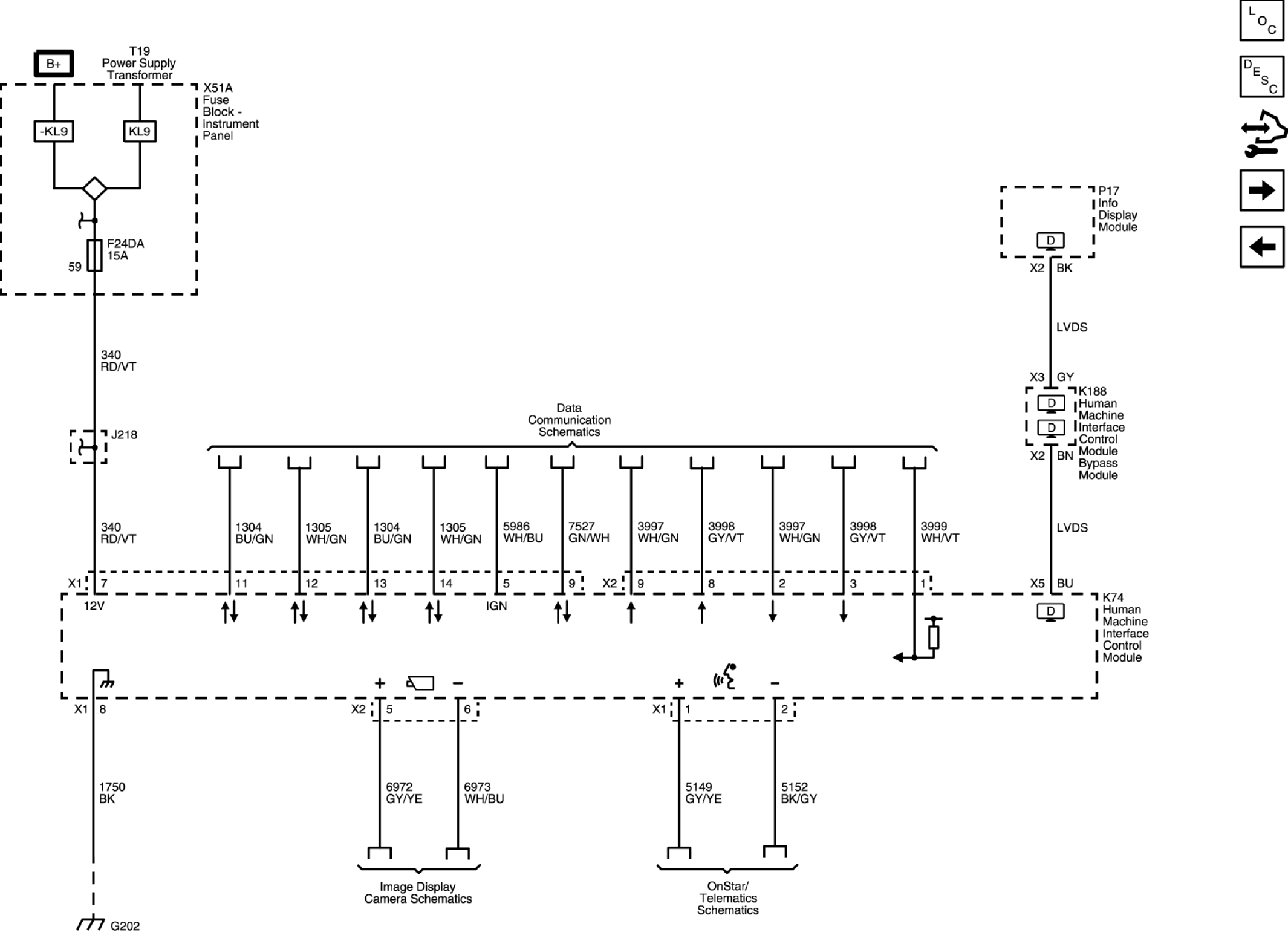

Human Machine Interface Control and Info Display Modules Power, Ground and Serial Data
