Power Transfer Unit Extension Housing Removal

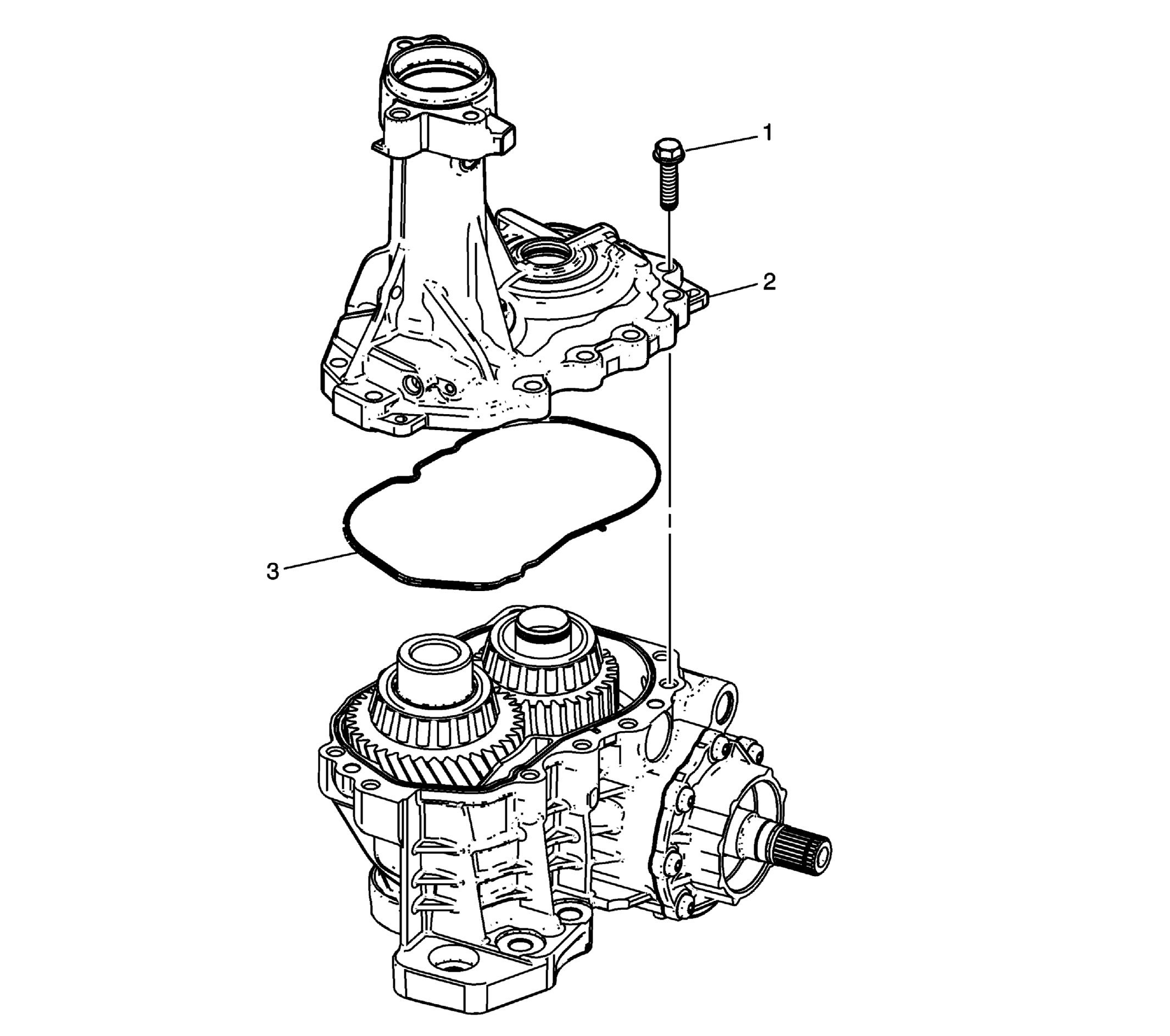

Fig 1: Exploded View Of Power Transfer Unit Extension Housing
GM3793521Courtesy of GENERAL MOTORS COMPANY
Power Transfer Unit Extension Housing Removal

Callout Component Name
1 Power Transfer Unit Cover Extension Housing Bolt (Qty: 10)
NOTE:

Remove and DISCARD the cover extension housing bolts. Install NEW rear extension housing bolts during assembly.
2 Power Transfer Unit Extension Housing Assembly
3 Power Transfer Unit Cover Housing Seal
NOTE:

Remove and DISCARD the seal.
