Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

Retainer (1) - Engage [4x]
Raise and support the vehicle. Lifting and Jacking the Vehicle .
Courtesy of GENERAL MOTORS COMPANY

Battery Positive Cable (2) @ Generator (3) - Install

CAUTION:

Battery Positive Cable Nut (1) - Install and tighten 15 N.m (11 lb ft)
Courtesy of GENERAL MOTORS COMPANY

Battery Positive Cable (1) - Install
Battery Positive Cable Nut (2) @ Starter Solenoid (3) - Install and tighten 12 N.m (106 lb in)
Lower the vehicle.

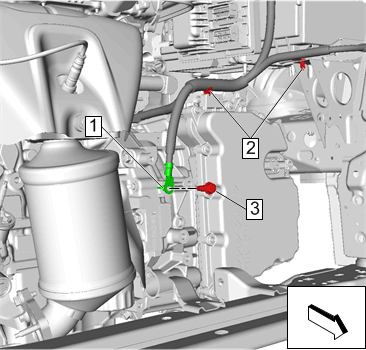

Courtesy of GENERAL MOTORS COMPANY

Battery Negative Cable (1) - Install
Battery Negative Cable Ground Fastener (3) - Install and tighten 40 N.m (30 lb ft)
Retainer (2) - Engage [2x]
Courtesy of GENERAL MOTORS COMPANY

Battery Negative Cable (1) - Install
Battery Negative Cable Frame Ground Fastener (2) @ Upper Tie Bar Support Stud - Install and tighten 22 N.m (16 lb ft)
Courtesy of GENERAL MOTORS COMPANY

Battery Positive Cable (3) - Install
Battery Positive Cable Nut (2) - Install and tighten 12 N.m (106 lb in)
Battery Distribution Fuse Block Cover (1) - Close
Install the intake manifold cover. Intake Manifold Cover Replacement (LCV)
Connect the negative battery cable. Battery Negative Cable Disconnection and Connection
