Removal Procedure

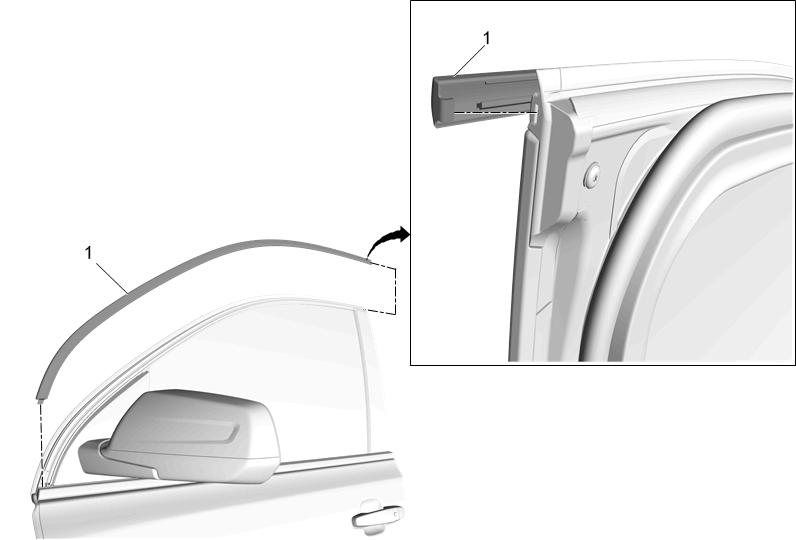

  1. GM4405471

    Front Side Door Window Upper Reveal Molding (1) - Remove - Front Side Door Window Upper Reveal Molding Replacement

  2. GM4793901

    Front Side Door Window Frame Rear Applique (2) - Remove - Front Side Door Window Frame Rear Applique Replacement

  3. GM4794047

    Front Side Door Window (2) - Remove - Front Side Door Window Replacement

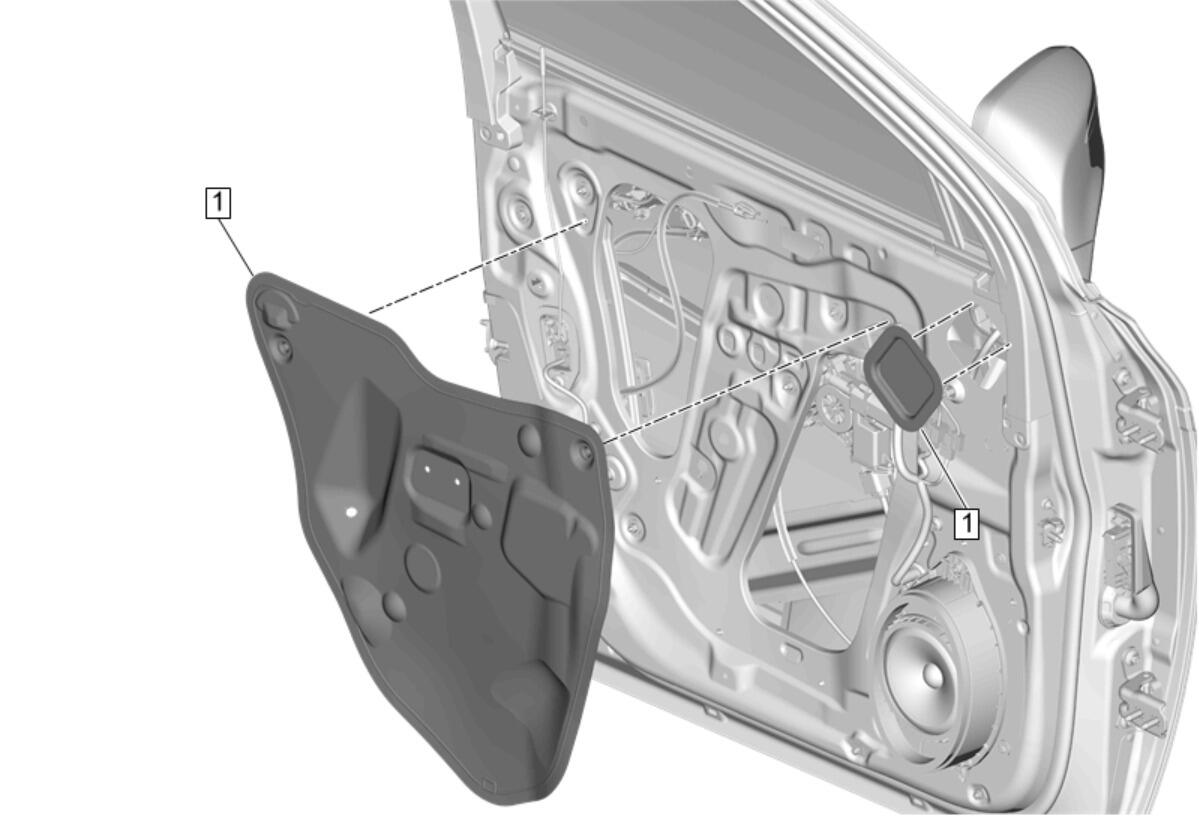

  4. GM4786627

    Front Side Door Water Deflector - Upper (1) - Remove - Front Side Door Water Deflector Replacement

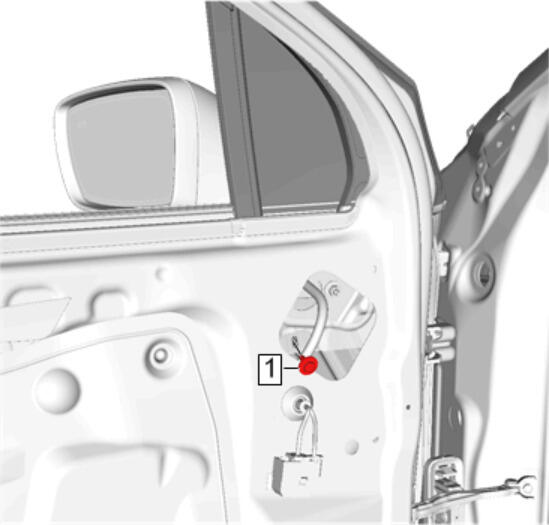

  5. GM4791299

    Front Side Door Window Frame Inner Upper Screw (1) - Remove

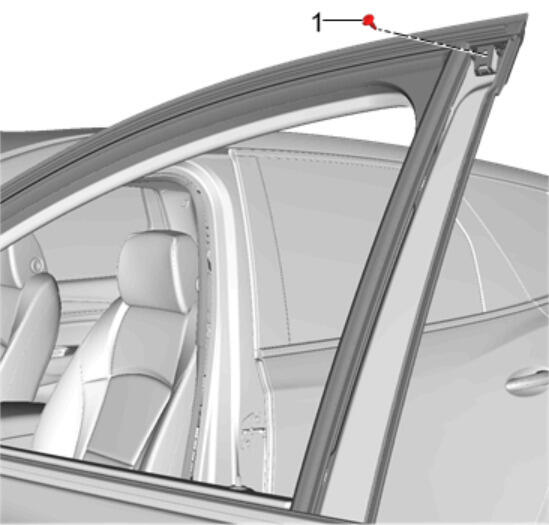

  6. GM4791295

    Front Side Door Window Weatherstrip Bolt - Remove

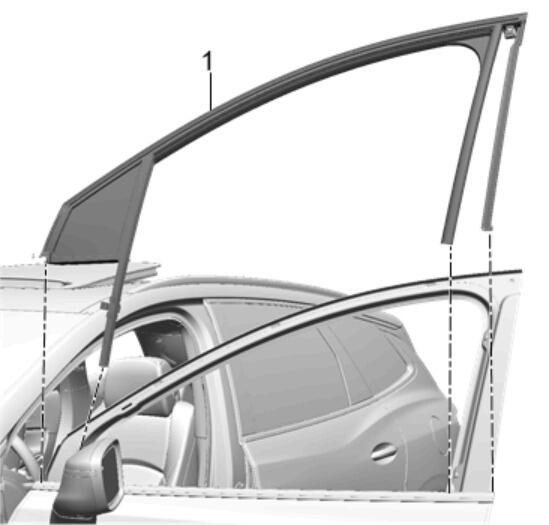

  7. GM4791302

    Front Side Door Window Weatherstrip (1) - Remove
